Description
Overview:

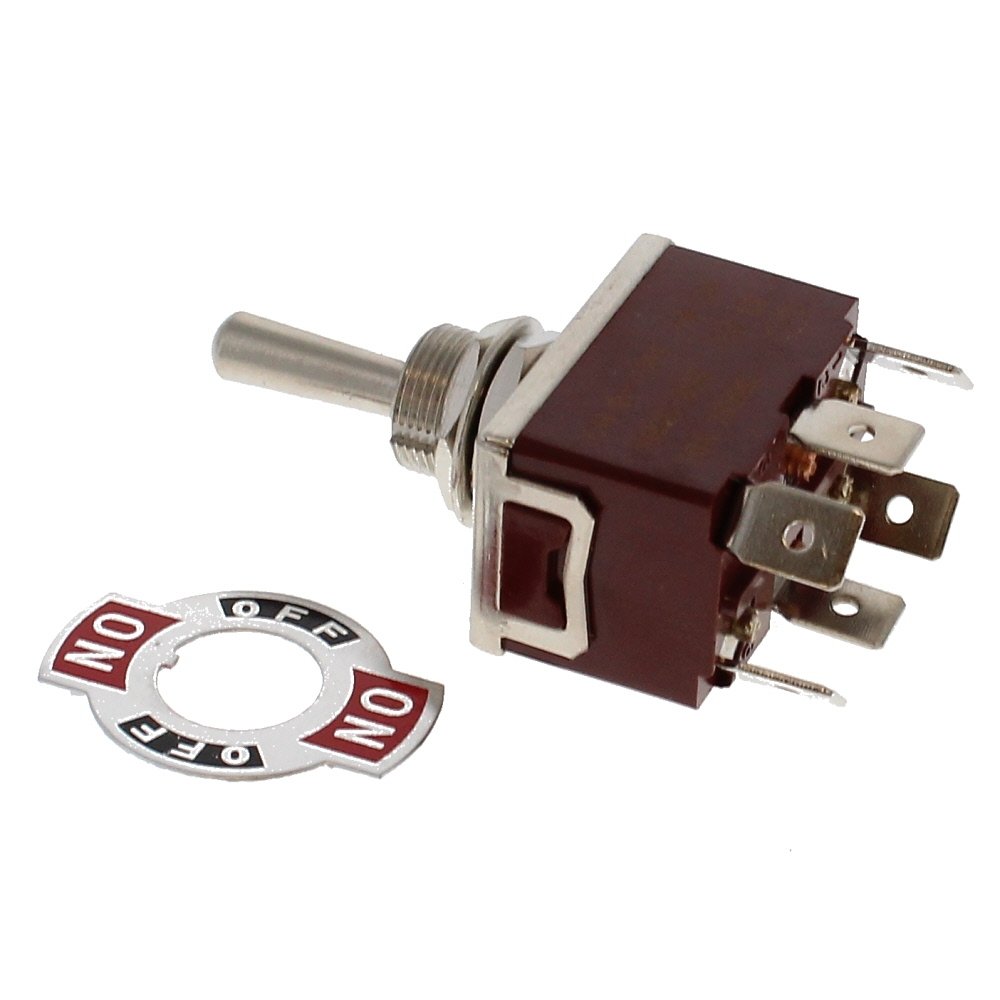

The Durite 0-349-02 is a genuine double-pole, three-position (on/off/on) panel switch designed for dependable circuit control in vehicles, plant, and equipment panels. It uses a metal toggle with a nickel‐plated brass lever for strength and wear resistance, and standard 6.3 mm blade terminals for quick, secure connections. Rated at 10 A at 28 V DC, it suits both 12 V and 24 V systems commonly found in automotive, agricultural, construction and garden machinery electrics. The switch mounts through a 13 mm round panel hole, making it straightforward to fit on dashboards and control boxes. Built for regular use, it provides crisp switching action and clear positions, helping you route power or signals safely and consistently in demanding environments.
Key Features:
- Genuine Durite part for assured quality and compatibility
- Double-pole, three-position (on/off/on) for flexible circuit control
- 10 A at 28 V DC rating suitable for most 12 V and 24 V vehicle and machinery systems
- Durable nickel-plated brass lever for long service life
- 6.3 mm blade (spade) terminals for easy push-on wiring
- Fits a 13 mm panel hole for simple, secure mounting
- Positive switching feel and defined detents for reliable operation
- Compact panel-mount form factor suitable for dashboards and control panels
- Corrosion-resistant materials for use in harsh environments
- Ideal for switching loads such as lighting, auxiliaries, and control circuits
Typical Applications:
Used on dashboards and control panels in vans, 4x4s, plant, generators, ride‐on mowers and workshop equipment. Common tasks include selecting between two power feeds, isolating accessories, changing operating modes, or reversing polarity on suitable low‐power DC motors when wired correctly. Well suited to custom builds and repairs where clear on/off/on control is needed.
Also known as:
Toggle switch, lever switch, DPDT switch, three‐position switch, on/off/on switch, changeover switch, double‐throw switch.
Alternate Part Numbers:
0-349-02, 034902
Product Specifications
| L&S Part No. | 125 1898 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Durite |
| OEM No. | 0-349-02 |
| Unit of Sale | Each |
