Description
Overview:

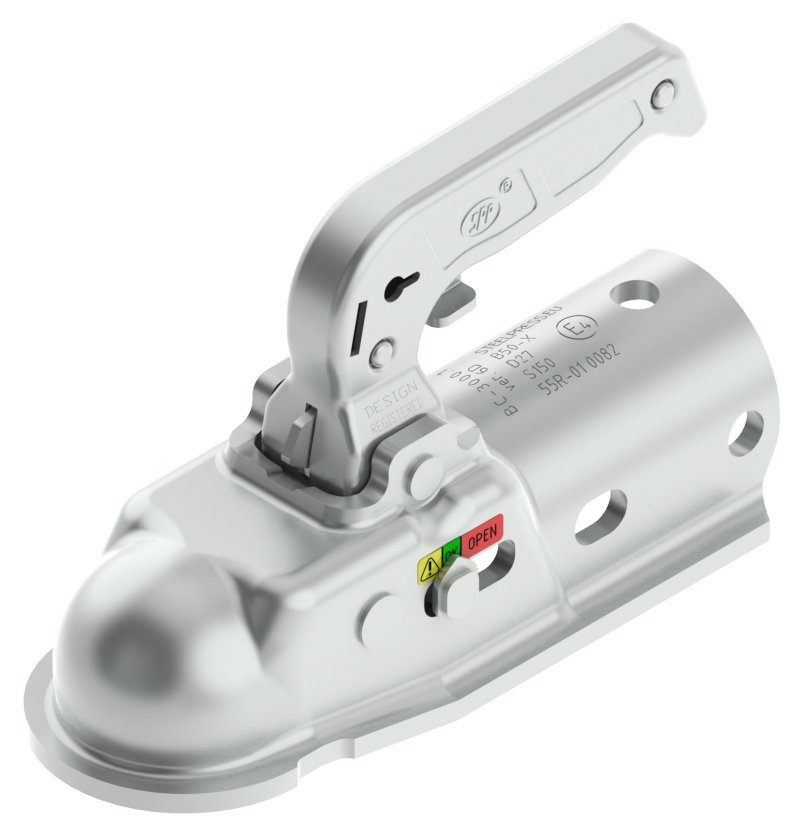

This 50mm trailer coupling head, 3000 kg, for 50 mm round drawbars (MPN 763 993) is a heavy‐duty pressed steel hitch head for use on plant, equipment and general‐purpose trailers. It attaches to a 50 mm towball (approx. 2") and mounts to a 50 mm (approx. 2") round tube drawbar using two high‐strength M12 bolts. The body is zinc plated for corrosion resistance and includes an indicator to show correct coupling engagement and wear status. Mounting holes are provided on both the side and top faces to suit different drawbar drilling patterns. The unit is ECE R55 approved (D27, S150) and rated for applications up to 3000 kg (approx. 3.0 tonnes / 6,614 lb), making it suitable for heavier trailers within that capacity. Supplied without a lock; compatible accessories include the optional Maypole security lock and a soft dock to protect the coupling head and towball area.
Key Features:
- Suits 50 mm towballs (approx. 2")
- Fits 50 mm (approx. 2") round tube drawbars
- 3000 kg capacity (approx. 3.0 tonnes / 6,614 lb)
- Fixes with 2 x M12 bolts, property class 10.9 minimum (approx. 1/2")
- Pressed steel construction with zinc plated finish
- Mounting holes on both side and top faces for flexible installation
- ECE R55 approved (D27, S150)
- Wear gauge and coupling engagement indicator
- Supplied without lock; accepts optional lock MP478B
- Can be fitted with soft dock MP1940
Typical Applications:
Used on A‐frame or straight drawbar trailers requiring a 50 mm ball coupling and a 50 mm round tube mounting, including plant, equipment, goods and utility trailers. Suitable as a service replacement for AL‐KO AK300 and Ifor Williams P0528, and can be used as an alternative to Knott Avonride 575003 and Ifor Williams PO0301 where specifications match. Check drawbar size, fixing hole pattern and rating before installation.
Also known as:
50 mm hitch head; 3.0 t trailer coupling; Pressed steel coupling head; 50 mm ball coupling; Maypole part number MP1995; AL‐KO AK300; Ifor Williams P0528; Knott Avonride 575003; Ifor Williams PO0301
Product Specifications
| L&S Part No. | 763 993 |
|---|---|
| Part Type | Genuine Part |
