Description
Overview:

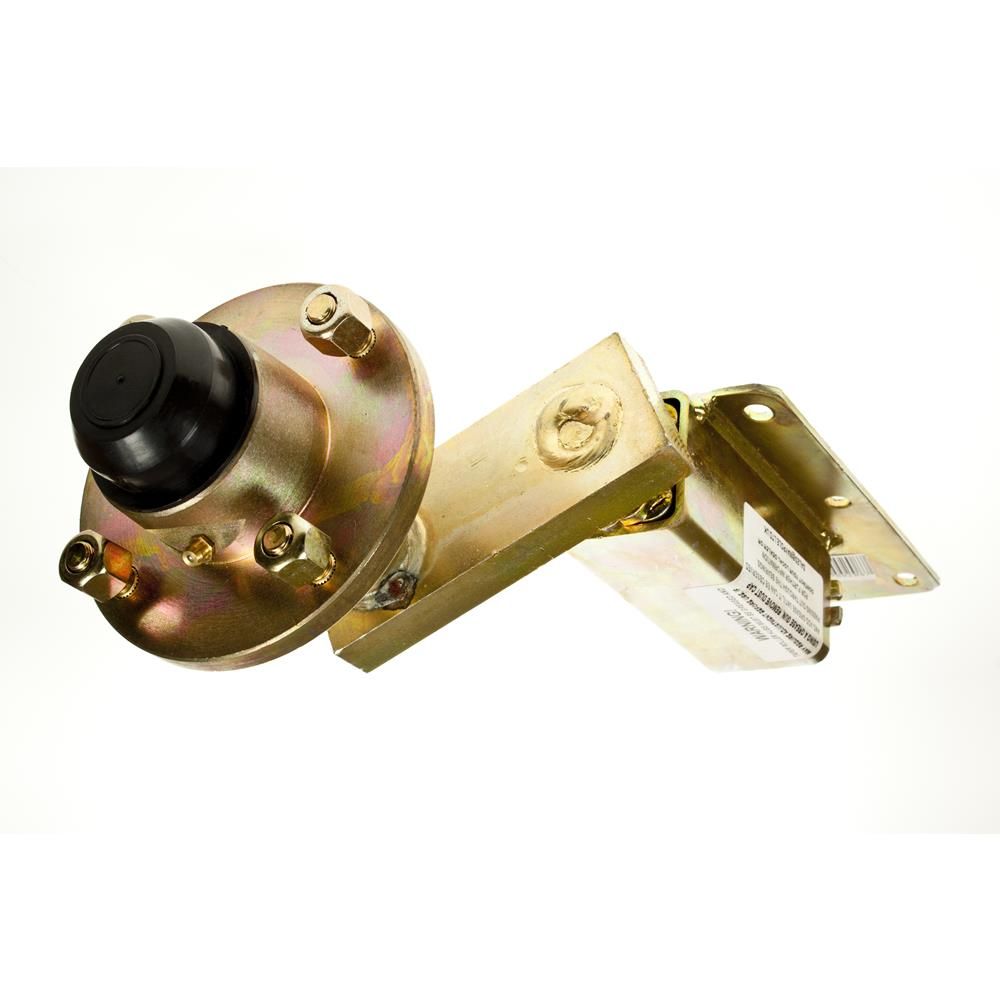

This pair of left- and right-hand trailer suspension units with pre-fitted hubs (MPN 211 020) is designed for light-duty trailers using compact "mini" hubs. Each arm is a robust steel assembly with a long-life polyurethane suspension element to absorb road shock and reduce vibration. The yellow zinc plated finish provides corrosion resistance for year-round use. The hubs are factory fitted with taper roller bearings for durability and smooth running, and suit wheels with 4 studs on a 4 in (101.6 mm) PCD. These units are suitable for 8 in (203.2 mm) and 10 in (254 mm) wheels. Each unit mounts to the chassis via six M8 fixing holes, allowing straightforward installation or replacement on existing brackets. Supplied as a handed pair (LH and RH) with a 350 kg load rating per pair, they are a practical option for building or refurbishing small trailers where a compact hub and suspension package is required.
Key Features:
- Pair of suspension units with hubs, handed left and right
- 350 kg load capacity per pair
- Suits 8 in (203.2 mm) and 10 in (254 mm) wheels
- 4-stud 4 in (101.6 mm) PCD mini hub pattern
- Hubs fitted with taper roller bearings
- Long-life polyurethane suspension element
- Yellow zinc plated finish for corrosion resistance
- Six M8 mounting/fixing holes per unit
- Hub uses 3/8 in UNF studs and conical nuts (see spares)
- Compatible hub and service spares: MP418 (hub), MP418CB (hub cap), MP4187B (3/8 in UNF conical nut), MP4185B (3/8 in stud), MP4181 (bearing kit for one hub)
Typical Applications:
Used on small utility, camping and box trailers, site and general-purpose trailers where a compact hub and arm assembly is required. Suitable for wheel fitments with 4 studs on a 4 in (101.6 mm) PCD and wheel sizes 8 in (203.2 mm) or 10 in (254 mm). Commonly installed during trailer builds, axle conversions or as a direct replacement for worn suspension units and hubs on light trailers.
Also known as:
Pair of 350 kg Trailer Suspension Units with Mini Hubs
4x4 in PCD Trailer Hubs and Suspension Arms
Left and Right Trailer Suspension Kit
Maypole part number MP208
Product Specifications
| L&S Part No. | 211 020 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
