Description
Overview:

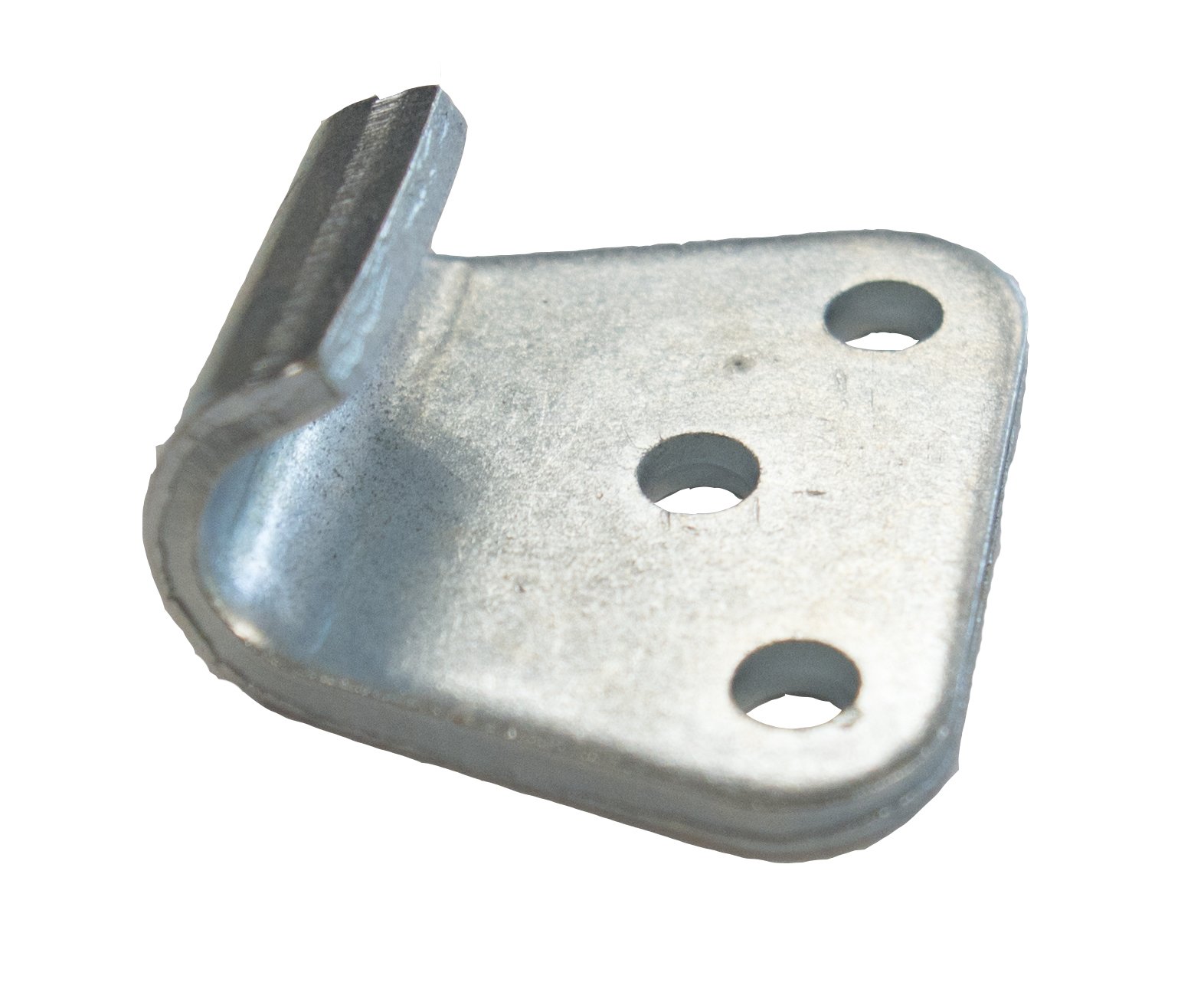

This overcentre latch (MPN 763 029) is a compact, positive-closing catch for securing panels, doors and lids on trailers and general vehicle bodywork. It features a durable zinc plated finish for corrosion resistance in outdoor and on-road conditions. The latch follows common body fitting dimensions: A dimension of 36 mm (1.42 in), B radius R4.5 mm (0.18 in), D dimension 20 mm (0.79 in), with three 5 mm (0.20 in) fixing holes. The over-centre mechanism provides a firm clamp to help resist vibration and movement during service. Rated to a maximum capacity of 497 kg (approx. 1,095 lb), it suits light- to medium-duty closures on trailer bodies, enclosures and equipment housings. This model is noted as suitable for use with Maypole companion parts MP81304B and MP81303B where a matched latch and catch arrangement is required. Supplied ready to fit with standard fixings to suit 5 mm hole diameters.
Key Features:
- Over-centre latch for positive, vibration-resistant closure
- Zinc plated finish for corrosion protection
- A dimension: 36 mm (1.42 in)
- B radius: R4.5 mm (0.18 in)
- D dimension: 20 mm (0.79 in)
- Fixing holes: 3 x 5 mm (0.20 in) diameter
- Maximum capacity: 497 kg (approx. 1,095 lb)
- Compatible with Maypole components MP81304B and MP81303B
Typical Applications:
Used on trailer body fittings for securing side panels, lids, hatches, access doors and equipment enclosures where a compact, positive latch is required. Common in general trailer, plant, utility and towing setups. Suitable as a replacement or build component where the installation matches the listed dimensions and where the assembly is paired with Maypole MP81304B/MP81303B mating parts.
Also known as:
Over Centre Catch
Toggle Latch
Draw Latch
Maypole part number MP81406B
Product Specifications
| L&S Part No. | 763 029 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Zinc plated for corrosion resistance - Maximum capacity of 497 kg - A dimension: 36 mm, B radius: R4.5 mm - Three 5 mm diameter fixing holes - Compatible with Maypole MP81304B and MP81303B components |
