Description
Overview:

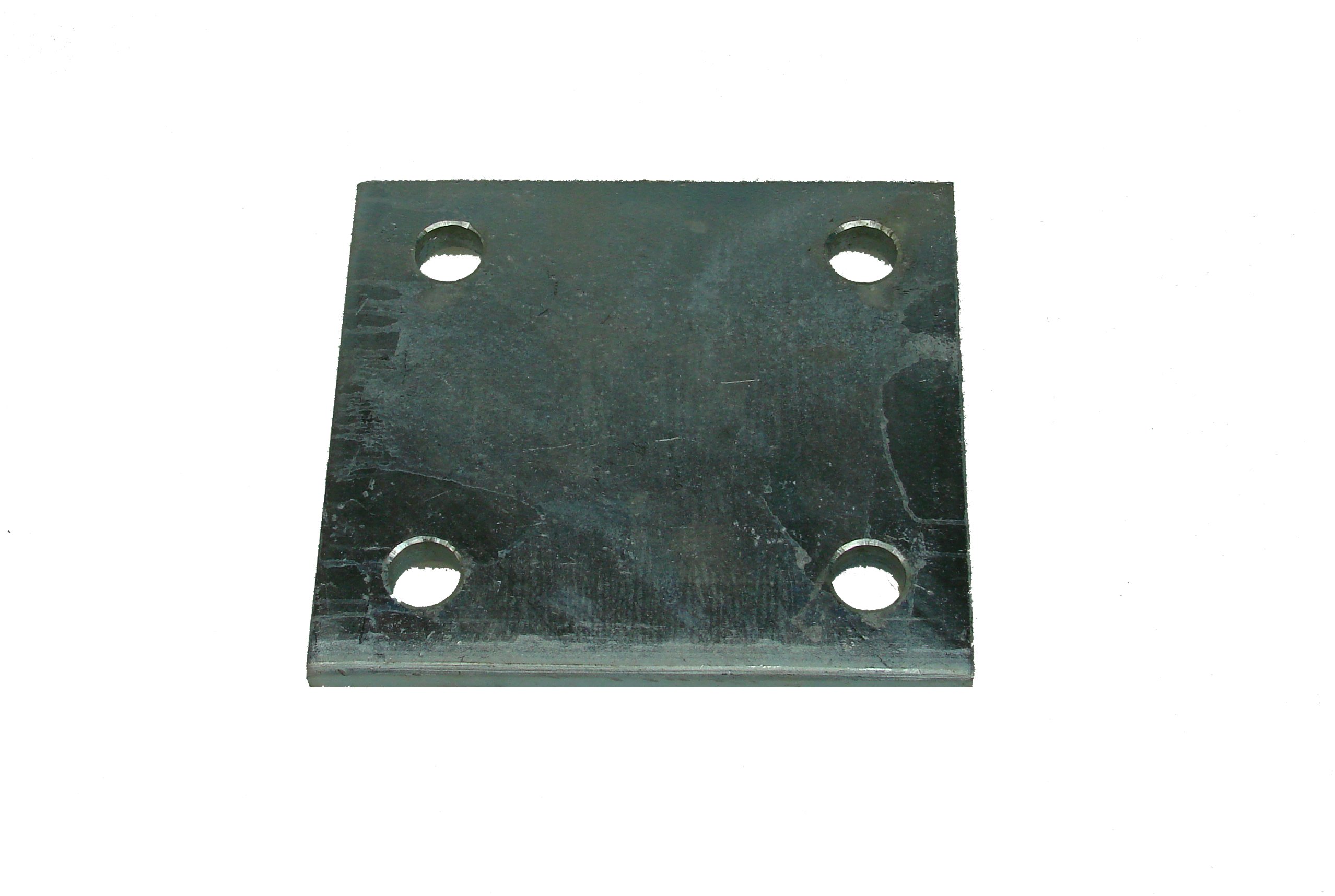

This 4 hole 4in (102 mm) towball drop plate (MPN 763 452) is a bolt-on adaptor for vehicles fitted with a flange towbar. Manufactured from steel with a durable zinc-plated finish, it provides a fixed 4 inch (102 mm) vertical offset to position the towball lower than the standard mounting point. The drop helps achieve a level towing setup when the vehicle's hitch point sits higher than the trailer coupling, improving drawbar alignment on agricultural trailers, plant and site equipment carriers, utility trailers and similar loads. The plate uses a four-hole configuration to offer alternative mounting positions while retaining a simple, robust construction suited to workshop or field fitting. This component is supplied for predominantly agricultural and off-road applications and is not listed as a tested or approved accessory for on-road use where type approval may be required.
Key Features:
- 4in (102 mm) vertical drop to lower the towball mounting height
- Four-hole configuration for alternative mounting positions on a flange towbar
- Bolt-on installation to standard flange-type towbar plates
- Zinc-plated steel construction for corrosion resistance and long service life
- Plain, robust plate design suitable for workshop or field fitting
- Intended for agricultural and off-road applications only
- Compatible with flange-mounted towballs and coupling plates requiring a lowered position
- Supplied as a single drop plate (no fixings included unless stated by the towbar kit)
Typical Applications:
Used on vehicles with flange towbars where the towball needs to be lowered by approximately 4 inches (102 mm) to align with the trailer coupling. Typical uses include agricultural trailers, plant and machinery transporters, site trailers and utility trailers to achieve level towing. Commonly fitted to 4x4s, light commercial vehicles and pickups used off road or on private land where coupling height correction is required.
Also known as:
Towbar Lowering Plate
Flange Towbar Drop Bracket
Towball Height Dropper 102 mm
4-Hole Lowering Bracket
Towbar Adaptor Plate (Drop Type)
Maypole part number MP232
Product Specifications
| L&S Part No. | 763 452 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
