Description
Overview:

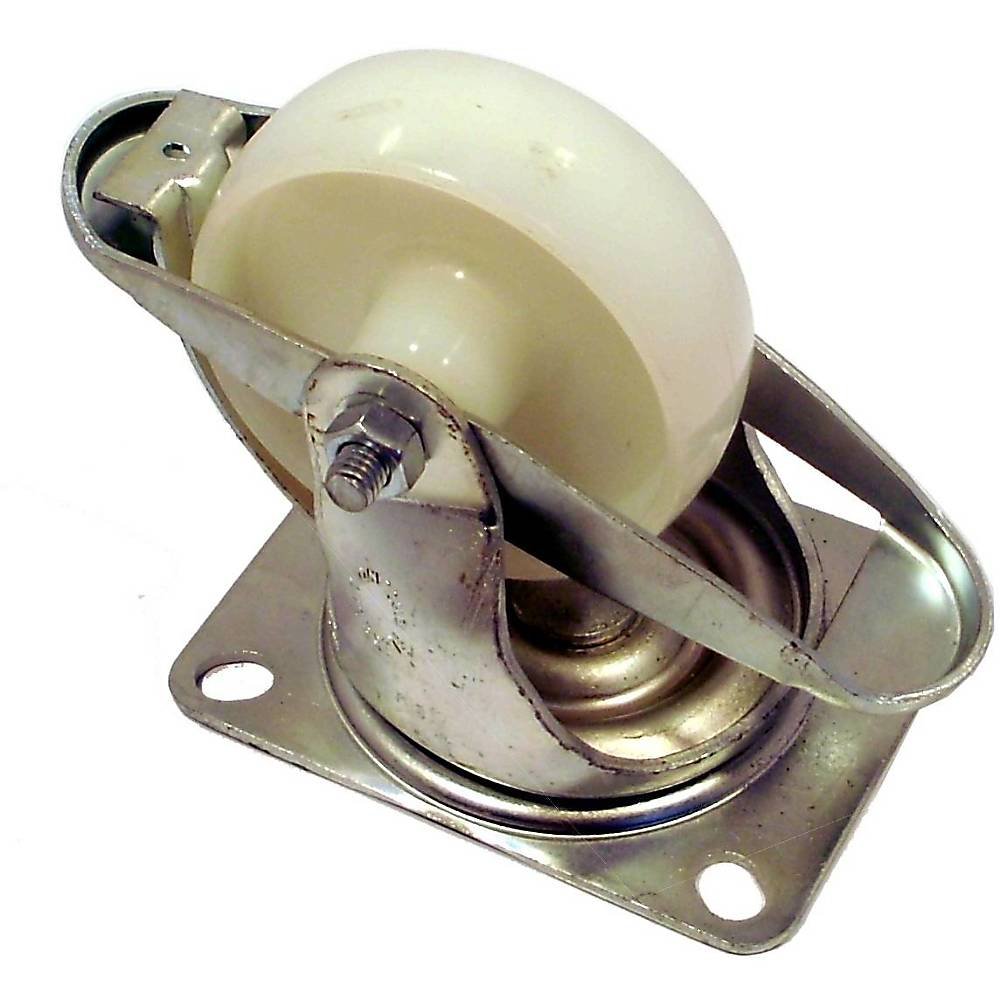

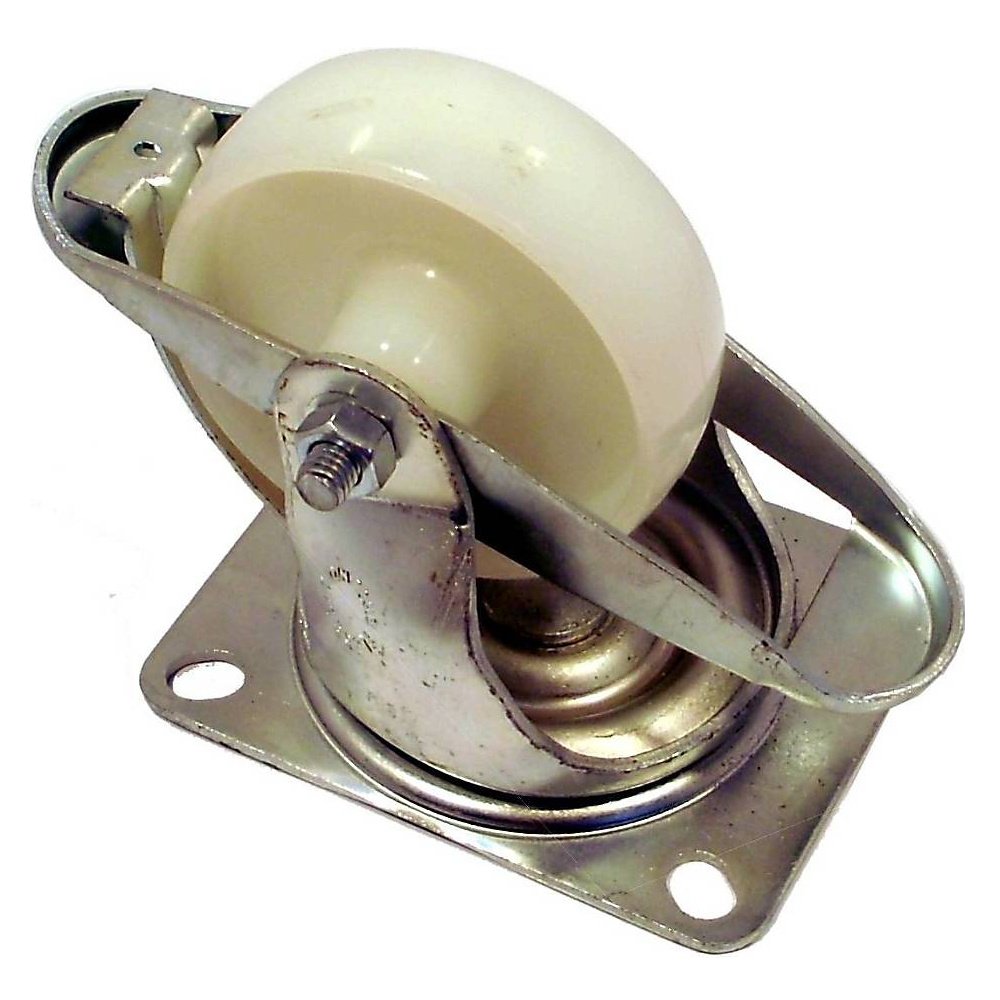

This 4" (101.6 mm) Braked Nylon Swivel Castor Wheel is a heavy-duty, plate-mounted castor for moving and positioning equipment safely and smoothly. The wheel is moulded from tough white nylon for long service life, and it sits in a robust swivel fork with a positive foot-operated brake to help hold equipment in place. With a maximum load capacity of 225 kg, a total height of 125 mm, and a rectangular top plate sized 130 x 102 mm, it is well suited to industrial carts, workshop trolleys, mobile benches, cabinets, and platform trucks. The plate has M10 fixing holes with centres at 103 x 76 mm, making installation straightforward on many common bases where a 4" (101.6 mm) braked swivel castor is required.
Key Features:
- Wheel diameter: 4" (101.6 mm); overall height: 125 mm
- Durable white nylon wheel for low rolling resistance and wear resistance
- Swivel action for easy manoeuvrability in tight spaces
- Foot-operated brake helps secure equipment during use or storage
- Strong steel fork and top plate; plate size 130 x 102 mm
- Fixing hole centres: 103 x 76 mm for easy alignment on many bases
- M10 fixing holes to accept standard hardware
- Maximum load capacity: 225 kg for demanding industrial duties
- Smooth running on hard workshop and warehouse floors
- Simple plate-mount replacement for worn or damaged castors
Typical Applications:
Ideal for workshop trolleys, industrial carts, mobile workstations, cabinets, platform trucks, packing benches, and storage racks. Commonly used in warehouses, factories, garages, and maintenance areas to move heavy items safely, then lock them in position during loading, unloading, or service tasks.
Also known as:
Braked castor, swivel castor with brake, plate-mounted castor, trolley wheel with brake, 4 inch castor (4" / 101.6 mm), nylon swivel wheel, industrial castor wheel, plate castor M10, braked trolley wheel, swivel plate castor.
Product Specifications
| L&S Part No. | 892 105 |
|---|---|
| Unit of Sale | 1 |
| Color | White |
