Description
Overview:

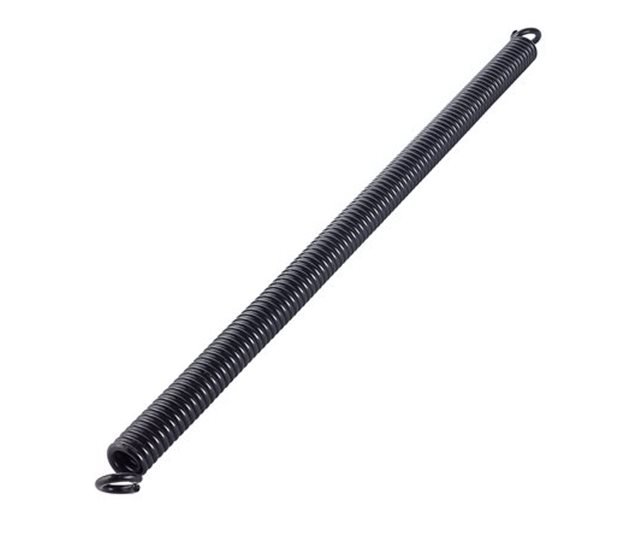

This heavy duty Foulger ramp spring (MPN 800 1160) is designed to provide counterbalance assistance on ramp and tailboard assemblies. Manufactured from mild steel with a black painted finish, it is built for demanding service on vehicle bodywork where reliable lift assistance is required. The spring has a Safe Working Load of 4 cwt (approximately 203 kg), making it suitable for larger and heavier ramp doors typically found on horseboxes and similar installations. Key dimensions include a 69 mm body diameter, an overall length of 1210 mm (±10 mm), and a 13.5 mm wire thickness. The black coating offers a durable protective finish. This is a trade-grade component for fitters and body builders who need a robust, serviceable ramp spring matched to Foulger-style hardware.
Key Features:
- Heavy duty Foulger-type ramp assist spring
- Safe Working Load: 4 cwt (approx. 203 kg)
- Material: Mild steel
- Finish: Black painted
- Body diameter: 69 mm
- Overall length: 1210 mm ± 10 mm
- Wire thickness: 13.5 mm
- Suited to ramp and tailboard counterbalance applications
Typical Applications:
Used on horsebox ramp doors and similar vehicle ramp assemblies where a high-duty counterbalance spring is required. Commonly fitted to bodywork and trailer ramps to reduce lifting effort and control ramp movement during opening and closing.
Also known as:
Foulger spring
Ramp assist spring
Horsebox ramp spring
Tailboard counterbalance spring
Ramp door spring
Product Specifications
| L&S Part No. | 800 1160 |
|---|---|
| Unit of Sale | 1 |
