Description
Overview:

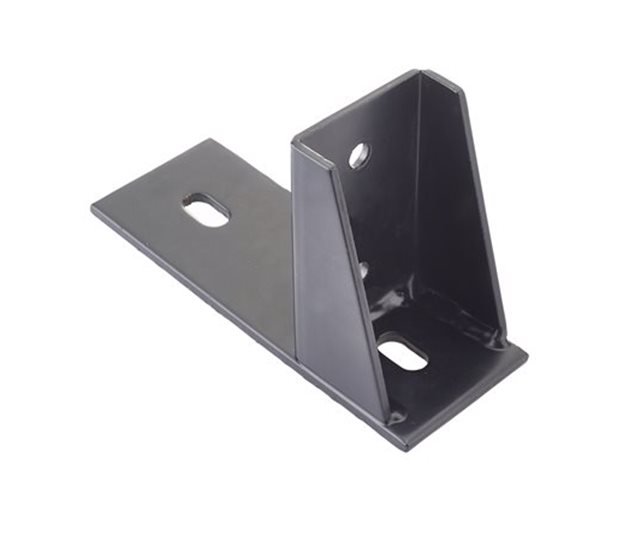

This steel body mounting pedestal for Ford Transit (MPN 800 1335) is a fabricated lower-fitment bracket designed to secure vehicle bodywork to the chassis. Made from 5 mm mild steel with a durable black E‐coat finish, it provides a robust mounting point for bodybuilders and fleet maintenance teams working on Ford Transit models from April 2000 onwards. The pedestal is intended for chassis with 100 mm (3.94") runners and incorporates both round holes and elongated slots to aid alignment during installation. Overall dimensions are 164 mm (6.46") long, 50 mm (1.97") wide and 95 mm (3.74") high, giving a compact profile suitable for typical commercial vehicle body mount locations. The corrosion-resistant coating supports service life in demanding road and site conditions common to construction, plant and transport operations.
Key Features:
- Fabricated mild steel construction, 5 mm (0.20") thick for strength
- Black E‐coat (electrophoretic) finish for corrosion protection
- Lower-fitment body mounting pedestal for 100 mm (3.94") chassis runners
- Suits Ford Transit from April 2000 onwards
- Overall size: 164 mm (6.46") length x 50 mm (1.97") width x 95 mm (3.74") height
- Fixing pattern: 2 x Ø8.5 mm (0.34") round holes
- Adjustment slots: 2 x 11 x 40 mm (0.43" x 1.57") for installation tolerance
- Designed for commercial vehicle and trailer body mounting use
Typical Applications:
Used for mounting and supporting body structures on light commercial vehicles and trailer chassis. Commonly specified on Ford Transit conversions from April 2000 onwards where a lower-fitment pedestal is required on 100 mm (3.94") chassis runners, and suitable for general truck and trailer body installations where the dimensions and fixing pattern match.
Also known as:
Body mounting bracket; Chassis bracket; Body pedestal; Lower fitment body mount; Body-to-chassis pedestal; Transit chassis bracket
Product Specifications
| L&S Part No. | 800 1335 |
|---|---|
| Unit of Sale | 1 |
