Description
Overview:

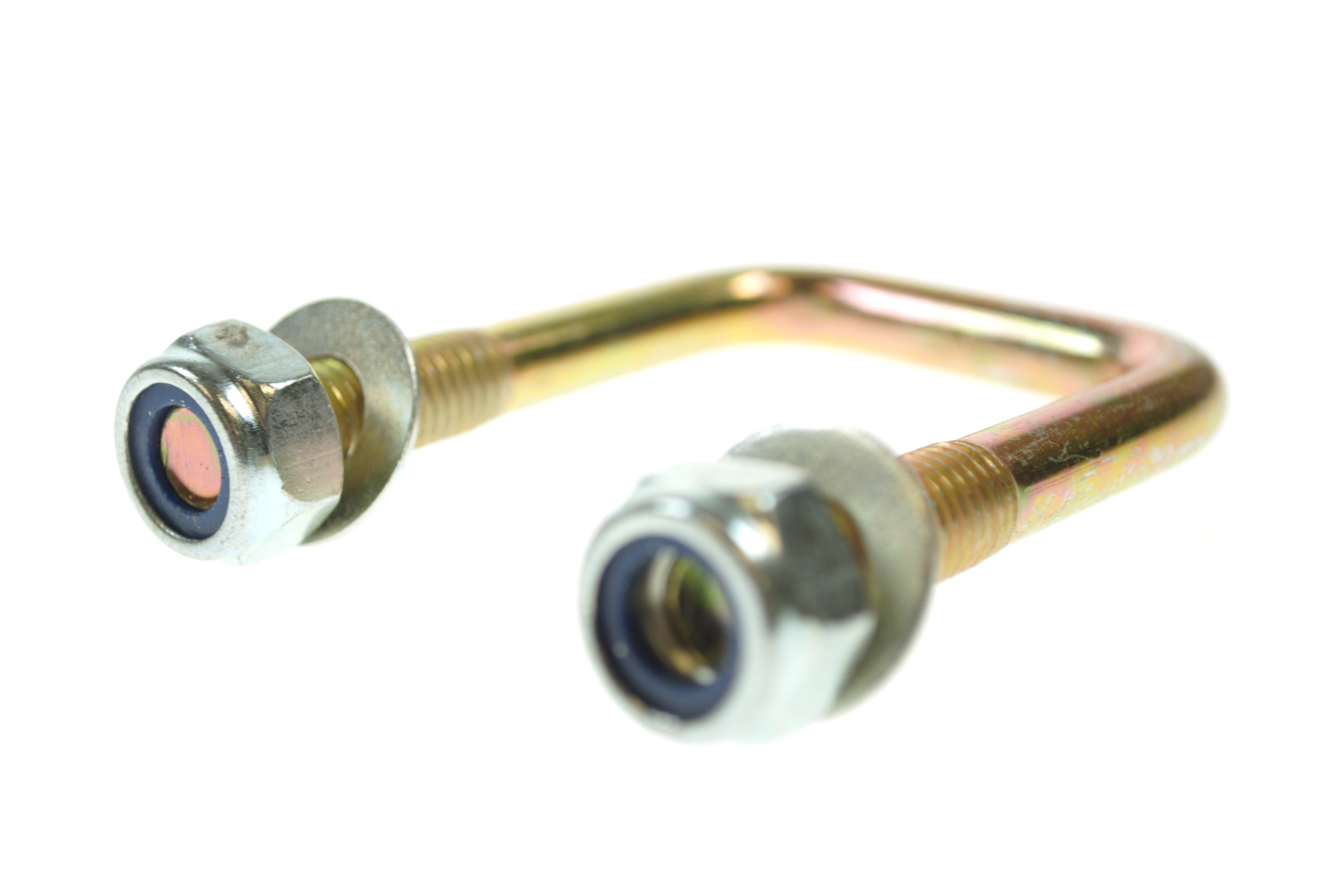

The 40 x 40mm Trailer U-Bolt with Nuts & Washers (MPN 763 183) is a high tensile steel fixing designed to clamp components securely to trailer and vehicle chassis sections. It is zinc plated to resist corrosion in road, site and agricultural environments, and is supplied complete with locking nuts and flat washers for a dependable installation. With a nominal internal width of 40mm (approx. 1.57 in) and a leg length of 40mm (approx. 1.57 in), plus 30mm (approx. 1.18 in) of threaded length, it suits a wide range of light-to-medium duty body fittings and bracketry. Typical uses include securing brackets, mudguard stays, steps, tie-down eyes, and ancillary hardware to cross-members or drawbars on general-purpose trailers, plant and equipment transporters, small tippers, agricultural implements and light commercial vehicle bodies. A guide torque of 60 Nm (approx. 44 lbf·ft) is suggested, subject to the application and the mating materials.
Key Features:
- High tensile steel 'U' bolt for durable clamping performance
- Zinc plated finish for corrosion resistance in service
- Supplied complete with locking nuts and flat washers
- Nominal internal width 40mm (approx. 1.57 in)
- Leg length 40mm (approx. 1.57 in)
- Threaded length 30mm (approx. 1.18 in)
- Suggested tightening torque 60 Nm (approx. 44 lbf·ft), subject to application
Typical Applications:
Used to clamp fittings and hardware to 40mm cross-members or chassis rails on trailers and plant transport, including securing brackets, mudguard stays, light mounts, tie-down points and ancillary equipment. Suitable for general trailer bodywork, utility trailers, small plant carriers, agricultural attachments and light commercial vehicle body fittings.
Also known as:
U clamp, 40 x 40mm U-bolt, Trailer U-bolt 40mm, U bracket 40mm, Maypole part number MP910B
Product Specifications
| L&S Part No. | 763 183 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - High tensile steel for durable clamping performance - Zinc plated for corrosion resistance - Includes locking nuts and flat washers - Nominal internal width 40mm - Leg length 40mm, threaded length 30mm |
