Description
Overview:

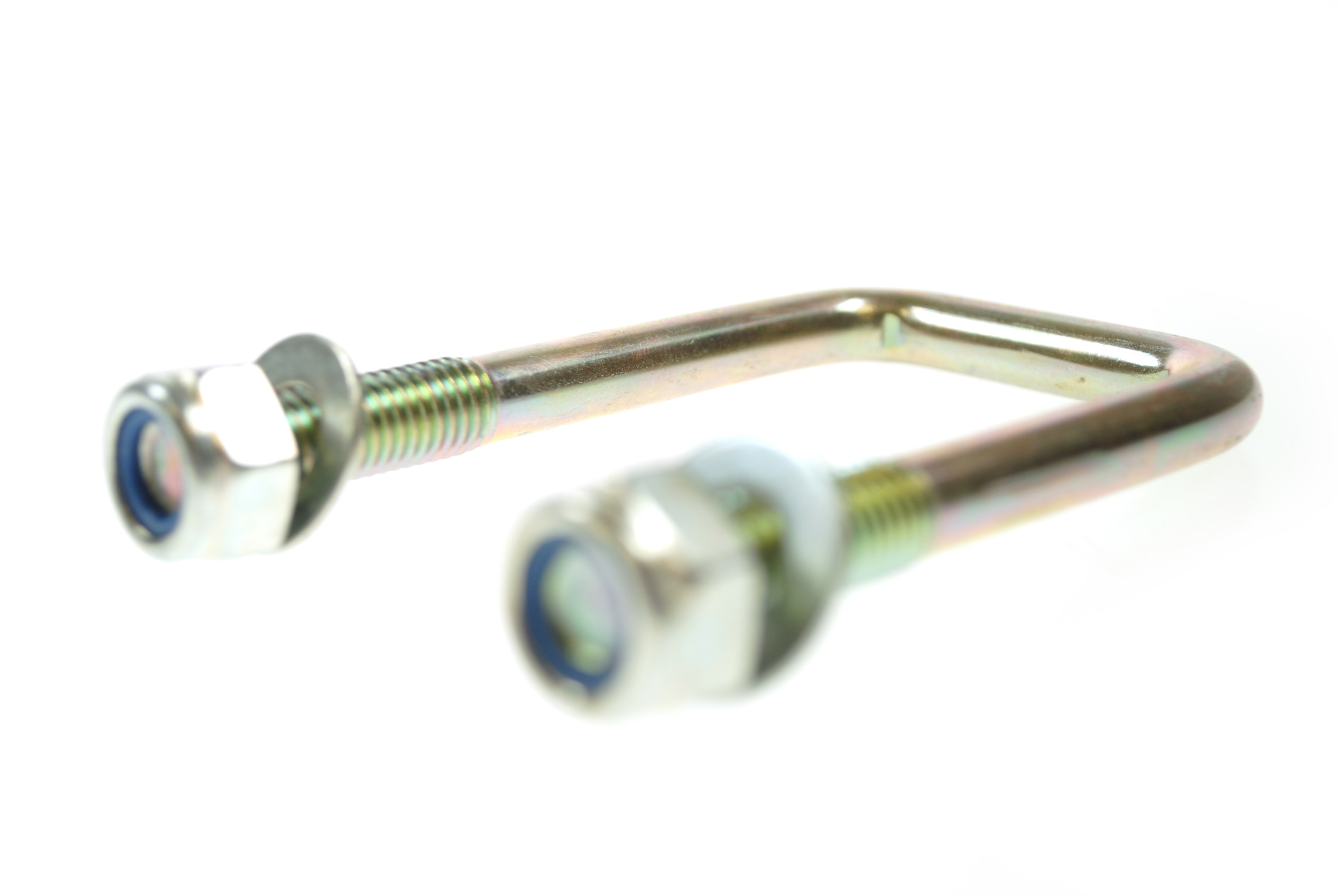

The 40 x 60 mm zinc-plated U-bolt with locking nuts and washers (MPN 763 188) is a high tensile steel fixing used for secure clamping of brackets, tubes and sections to trailer and vehicle chassis members. Built for everyday trade use, it provides a reliable hold for body fittings and accessories where a compact 40 mm clamp is required. The zinc plating offers added resistance against corrosion in road and site environments. Supplied complete with locking nuts and flat washers, it is ready to install on trailers, plant transporters, towing setups and light commercial bodywork. The stated dimensions are 40 mm width by 60 mm length, with a 30 mm thread on each leg to accommodate typical bracket and plate thicknesses. For reference, 40 mm is approximately 1.57 in, 60 mm is approximately 2.36 in, and the 30 mm thread length is approximately 1.18 in.
Key Features:
- High tensile steel U-bolt for durable clamping performance
- Zinc plated finish for corrosion resistance in road and site use
- Supplied complete with locking nuts & flat washers
- Size: width 40 mm x length 60 mm (approx. 1.57 in x 2.36 in)
- Thread length: 30 mm per leg (approx. 1.18 in)
- Guide torque: 60 Nm, subject to application
- Suitable for body fittings, brackets and tube/section clamping on trailers and general towing equipment
Typical Applications:
Commonly used on trailers and plant transport bodies to clamp mudguard stays, light board brackets, lashing points, pipe or conduit, and other hardware to chassis rails or cross members. Also suited to general bodywork tasks on towing equipment and light commercial vehicles where a 40 mm clamp width and compact 60 mm leg length are required.
Also known as:
U clamp; U-bolt clamp 40 x 60 mm; Zinc plated U-bolt with nuts & washers; Saddle clamp; Pipe clamp U-bolt; Maypole part number MP911B
Product Specifications
| L&S Part No. | 763 188 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - High tensile steel for durable clamping - Zinc plated for corrosion resistance - Includes locking nuts and flat washers - Dimensions: 40 mm width x 60 mm length - 30 mm thread length per leg |
