Description
Overview:

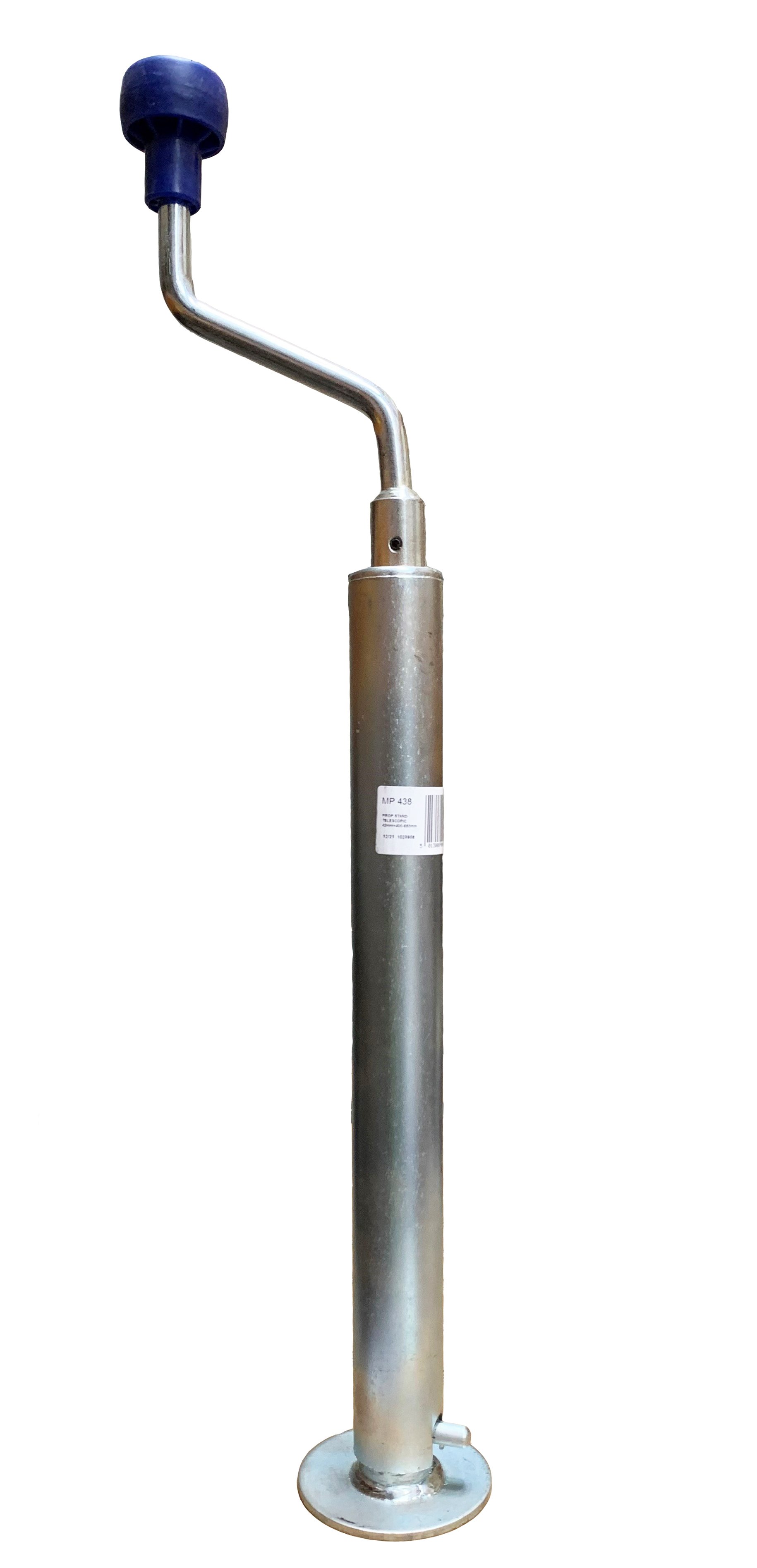

This 42mm Telescopic Trailer Prop Stand, 400-650mm, 110mm Base, 100kg (MPN 763 639) is a support leg for keeping an unhitched trailer level and steady while parked, loaded or unloaded. The smooth 42 mm (1.65 in) outer tube adjusts 400-650 mm (15.7-25.6 in) excluding the handle, and the 110 mm (4.33 in) base provides a stable footing. It is a stand with no wheel, not for manoeuvring. Supplied without a clamp; order MP224 (42 mm) separately.
Specification:
- Outer tube diameter: 42mm
- Tube profile: smooth (plain)
- Adjustment range: 400mm minimum to 650mm maximum, measured excluding the handle
- Base diameter: 110mm, giving a stable platform for levelling
- Maximum static load with clamp fitted: 100kg
- Anti-rotation lug to prevent unintended winding-down in transit
- Short-reach wire handle, allowing rotation close to the trailer body or handbrake
- Duty class: light commercial / medium duty
- Finish: clear zinc plate
Fitment:
- Recommended clamp: MP224 (42mm)
Also known as:
- trailer leg; support stand; prop leg; stabiliser leg; landing leg; trailer support tube; MP438
Product Specifications
| L&S Part No. | 763 639 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - 42 mm outer tube diameter for 42 mm clamps - Telescopic length adjustment from 400 mm to 650 mm - 110 mm diameter foot for improved ground load spread - Max static load 100 kg with suitable clamp - Steel construction with zinc-plated finish for corrosion resistance |
