Description
Overview:

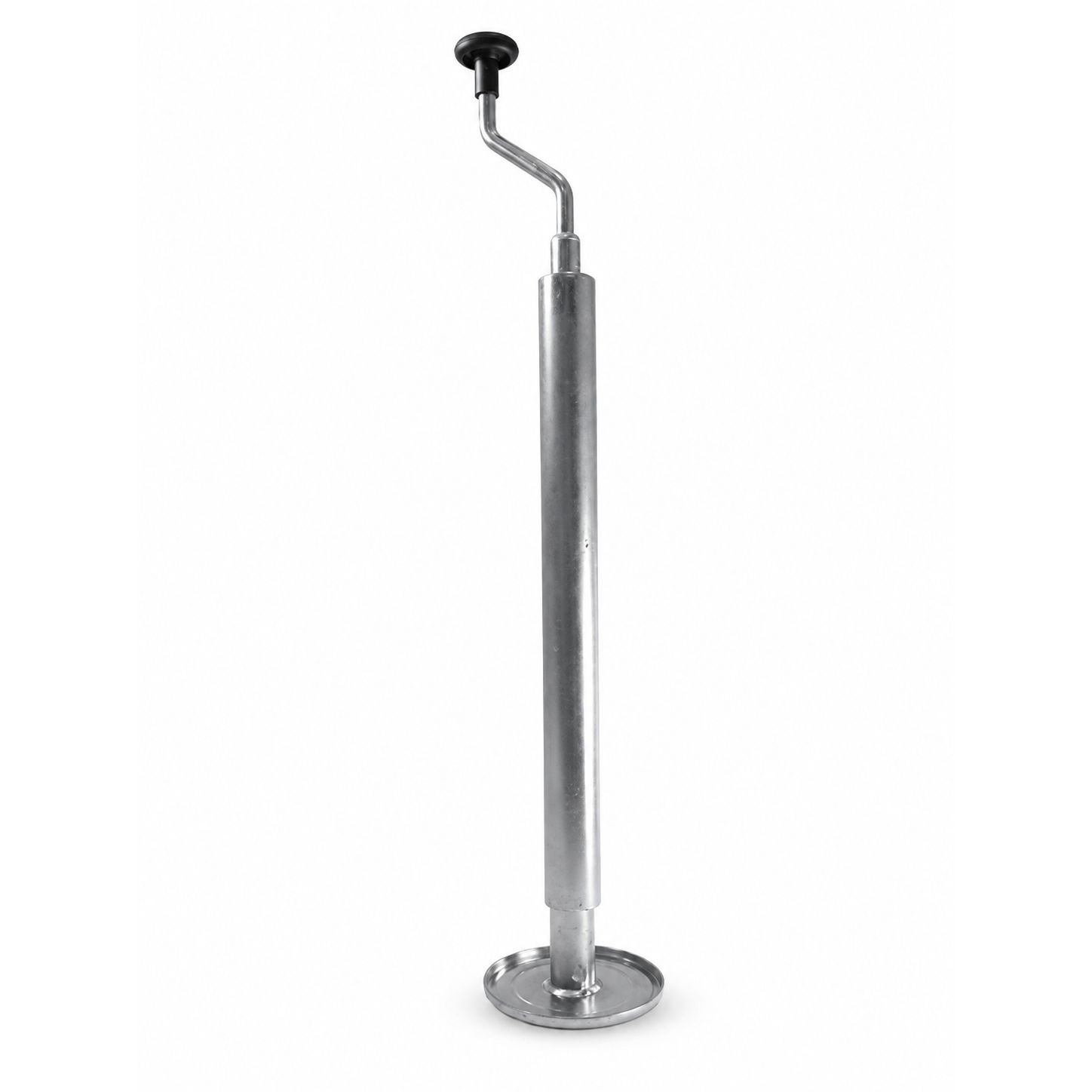

The 48mm Telescopic Trailer Prop Stand, 400-650mm, 110mm Base, 150kg (MPN 763 690) is a smooth-tube support leg for keeping an unhitched trailer level and steady during parking, loading or unloading. The outer tube is 48mm (1.89 in) with telescopic adjustment from 400 to 650mm (15.7-25.6 in), measured excluding the handle. A 110mm (4.33 in) round base provides a stable footing. An anti-rotation lug helps prevent unintended winding-down in transit, and the short-reach wire handle works close to the chassis or handbrake. Supplied without a clamp; order the clamp separately.
Specification:
- Outer tube diameter: 48mm
- Tube profile: smooth (plain)
- Adjustment range: 400mm minimum to 650mm maximum, measured excluding the handle
- Base diameter: 110mm, giving a stable platform for levelling
- Maximum static load with clamp fitted: 150kg
- Anti-rotation lug to prevent unintended winding-down in transit
- Short-reach wire handle, allowing rotation close to the trailer body or handbrake
- Duty class: light commercial / medium duty
- Finish: clear zinc plate
Fitment:
- Recommended clamp: MP8121 (48mm medium duty cast)
Also known as:
trailer leg, support stand, prop leg, landing leg, drop leg, stabiliser leg, trailer support tube, MP4385
Product Specifications
| L&S Part No. | 763 690 |
|---|---|
| Part Type | Genuine Part |
| Key Features | - 400-650mm adjustable height range - 48mm tube diameter - Telescopic design for variable lengths - Compatible with various machinery - Sturdy metal construction |
