Description
Overview:

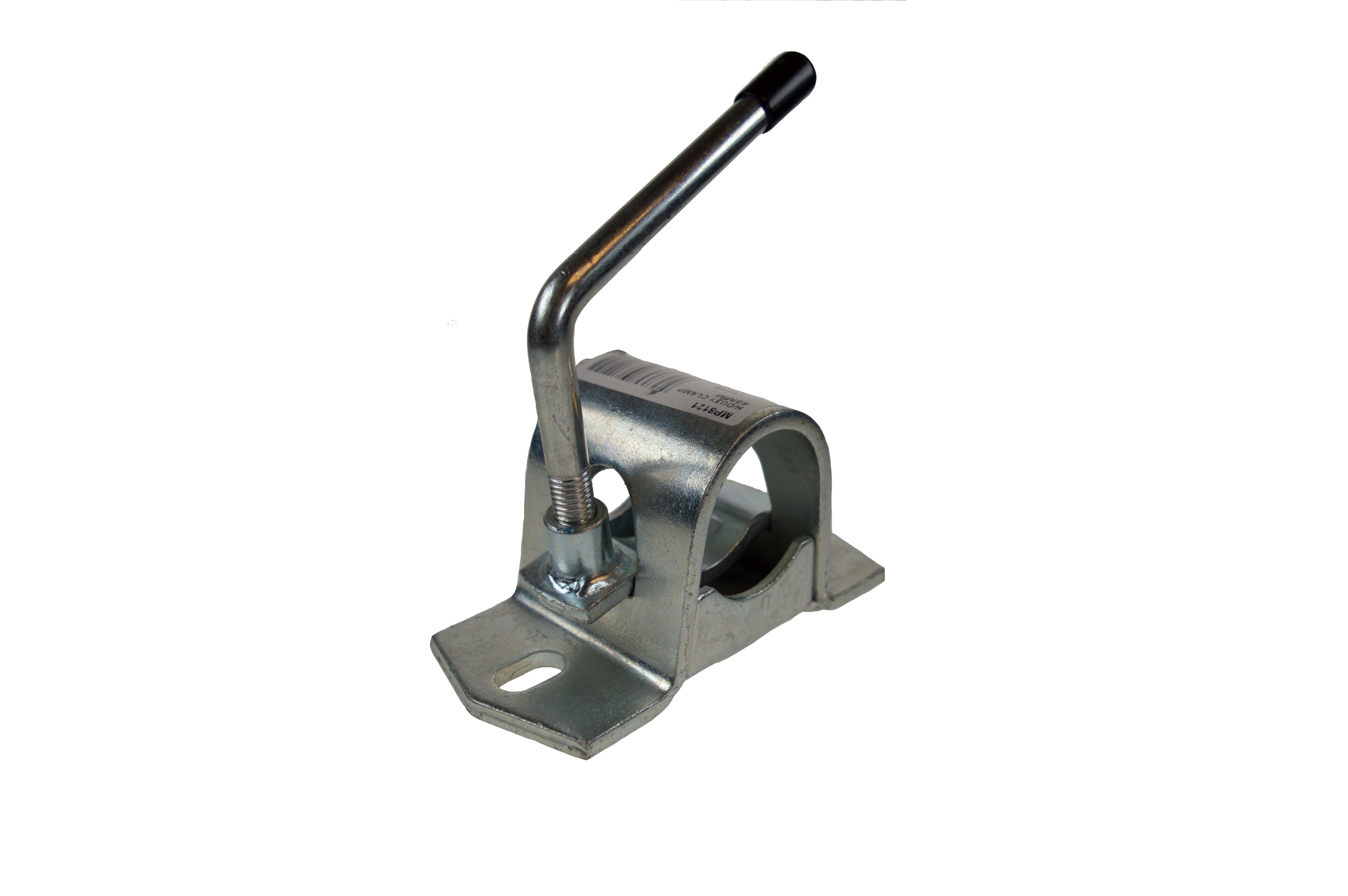

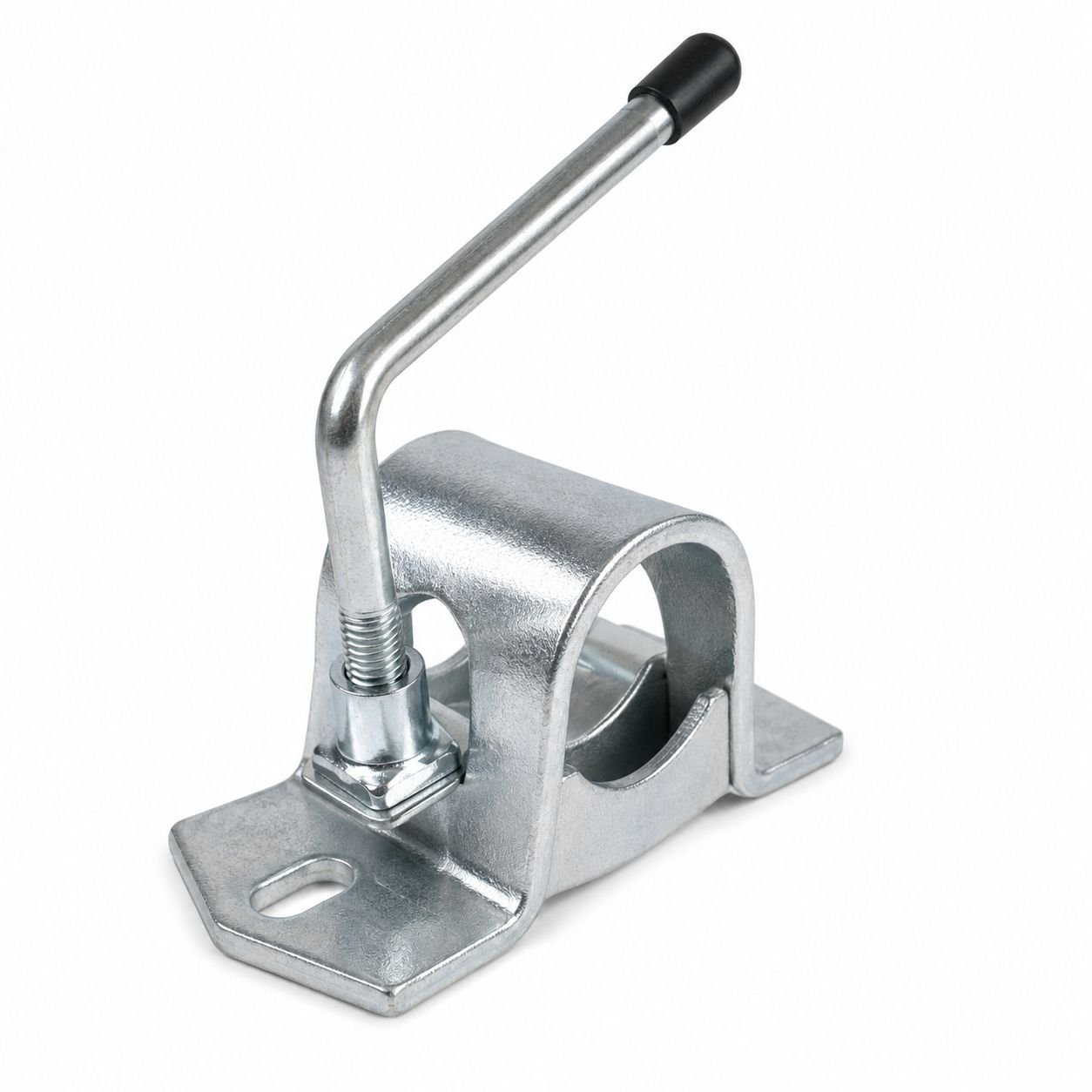

The 48mm Medium Duty Split Jockey Wheel Clamp (MPN 763 626) is a robust clamp for securing standard 48 mm (approx. 1-7/8 in) jockey wheels and prop stands to a trailer drawbar or A‐frame. Built from 5.5 mm (approx. 7/32 in) steel, it provides a dependable hold for routine towing and site work. The split clamp design grips the tube firmly while allowing quick release for height adjustment or removal of the wheel/stand. A zinc plated finish offers corrosion protection in everyday outdoor use. The base features mounting hole centres at 115-125 mm (approx. 4.53-4.92 in) to suit common trailer chassis patterns, with an M12 bolt size noted for the fixing. This medium duty pattern is widely used across general duty trailers, plant and utility trailers, and site equipment where a 48 mm jockey wheel or prop stand is specified.
Key Features:
- 48 mm clamp size for standard jockey wheels and prop stands (approx. 1-7/8 in)
- Medium duty split clamp design for secure grip and easy removal
- M12 bolt size for the fixing arrangement
- 115-125 mm mounting hole centres (approx. 4.53-4.92 in) for chassis mounting
- Manufactured from 5.5 mm steel (approx. 7/32 in) for strength and durability
- Zinc plated finish for corrosion resistance
- Suits common trailer drawbars and A‐frames where a 48 mm tube is used
- Trade-friendly pattern for routine fleet and workshop use
Typical Applications:
Used to mount and secure 48 mm jockey wheels or prop stands on trailer drawbars, A‐frames and chassis cross members. Typical on general purpose trailers, plant and equipment trailers, builders' and utility trailers, and caravans where a 48 mm tube accessory is specified. Suitable for maintenance replacements or new builds using M12 fixings and 115-125 mm mounting centres.
Also known as:
48mm Jockey Clamp
Jockey Wheel Bracket 48mm
Prop Stand Bracket 48mm
Split Tube Clamp 48mm
Maypole part number MP8121
Product Specifications
| L&S Part No. | 763 626 |
|---|---|
| Part Type | Genuine Part |
| Key Features | - 48 mm clamp for standard jockey wheels and stands - Made from 5.5 mm steel for strength - Zinc plated for corrosion resistance - 115-125 mm mounting hole centres - M12 bolt size for fixing arrangement |
