Description
Overview:

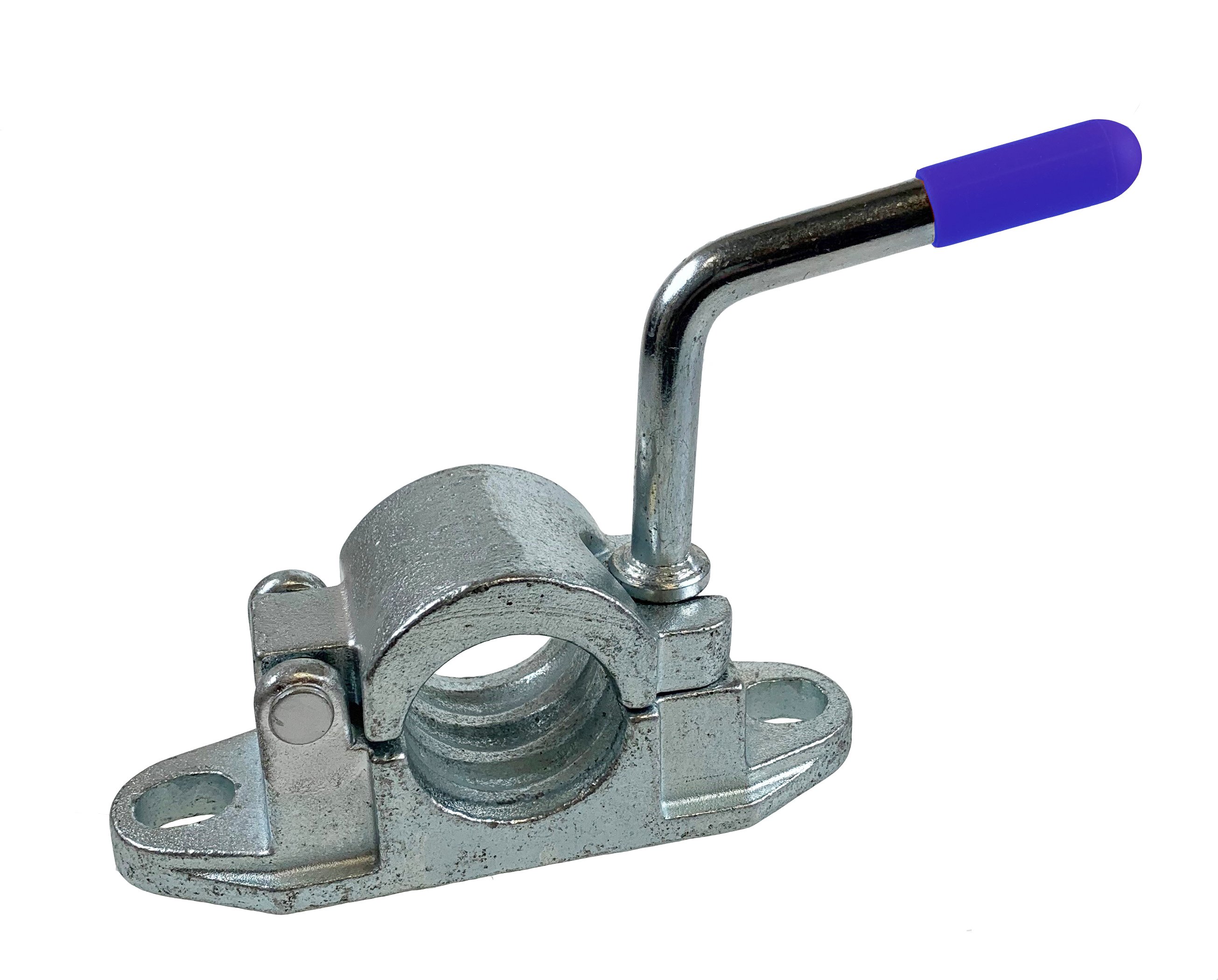

This heavy duty hinged clamp for 48mm ribbed/serrated jockey wheels and prop stands (MPN 763 648) is built for demanding trailer and plant use. The body is cast steel for durability and rigidity, with a zinc plated finish to help resist corrosion in year‐round UK conditions. The hinged design allows quick installation of a jockey wheel or prop stand without removing the outer half of the clamp, saving time during fit-out or roadside changes. It is designed to grip 48mm (1.89 in) serrated tube securely and mounts to the trailer drawbar or A‐frame using two through-holes. Hole centres are set at 150mm (5.91 in) and each hole is 18mm (0.71 in) diameter to suit typical heavy duty fixings. Suitable for commercial trailers, plant trailers, general duty trailers and similar towing equipment where a robust clamping solution is needed.
Key Features:
- Heavy duty cast steel body for strength in service
- Zinc plated finish for corrosion resistance
- Hinged design for fitting without removing the outer clamp half
- Suits 48mm ribbed/serrated tube (approx. 1.89 in)
- Mounting hole centres: 150mm (approx. 5.91 in)
- Two mounting holes, 18mm diameter each (approx. 0.71 in)
- Recommended for Maypole heavy duty 48mm serrated jockey wheels and prop stands
- Positive grip on serrated tube profile for secure retention
Typical Applications:
Used to secure a 48mm serrated jockey wheel or prop stand to a trailer drawbar or A‐frame on plant trailers, utility and general duty trailers, commercial and fleet trailers, and similar towing set‐ups. Suits and is recommended for Maypole heavy duty 48mm serrated jockey wheels and prop stands where a strong, serviceable clamp with standard 150mm mounting centres is required.
Also known as:
48mm Ribbed Jockey Wheel Clamp
48mm Serrated Jockey Clamp
Hinged Prop Stand Clamp
Heavy Duty 48mm Trailer Clamp
Maypole part number MP97451
Product Specifications
| L&S Part No. | 763 648 |
|---|---|
| Part Type | Genuine Part |
| Key Features | - Heavy duty cast steel body for strength - Zinc plated finish resists corrosion - Hinged design allows quick installation - Fits 48mm serrated tube securely - 150mm mounting hole centres, 18mm diameter holes |
