Description
Overview:

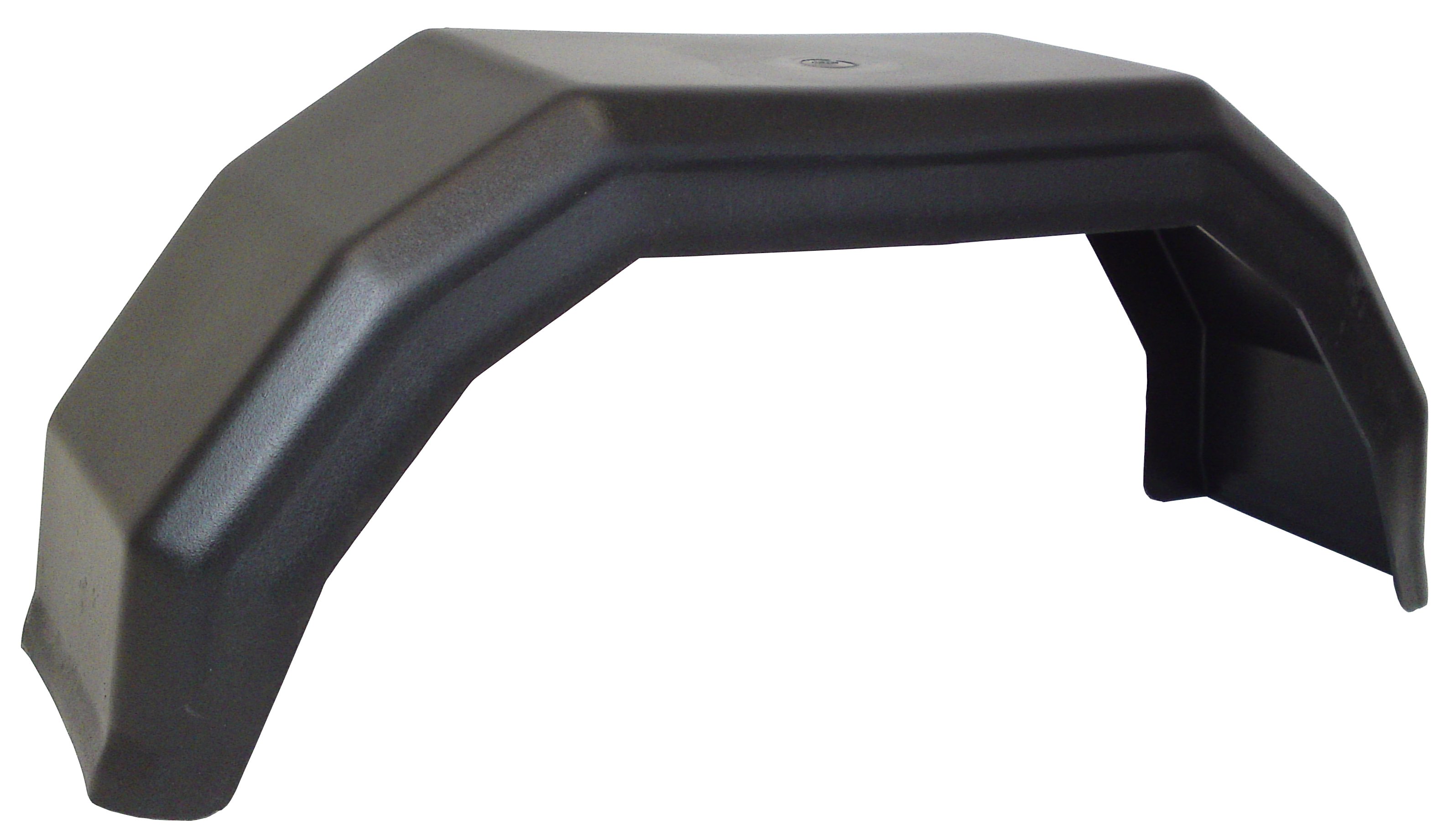

The Single Plastic Trailer Mudguard (MPN 763 252) is a compact wheel arch designed for small trailers running 8 inch (203 mm) wheels. It is injection moulded in black high-density polyethylene (HDPE) for a consistent finish and dependable durability in everyday use. Sized for light trailer applications, the guard measures 490 mm (19.3 in) in length, 140 mm (5.5 in) in depth, and 200 mm (7.9 in) in height, with a V dimension of 41 mm (1.6 in) as per the manufacturer's drawing. The material and construction make it a practical choice for routine servicing, replacement of damaged guards, or new trailer builds where a single 8 inch wheel mudguard is required. Supplied as an individual unit, this guard provides a straightforward solution for protecting the trailer structure and keeping road spray contained around smaller wheel and tyre setups commonly used on utility and general-purpose trailers.
Key Features:
- For 8 in (203 mm) trailer wheels
- Injection moulded in black high-density polyethylene (HDPE)
- Single mudguard configuration
- Length (L): 490 mm (19.3 in)
- Depth (D): 140 mm (5.5 in)
- Height (H): 200 mm (7.9 in)
- V dimension: 41 mm (1.6 in)
Typical Applications:
Used above the tyre on small domestic and light commercial trailers equipped with 8 in (203 mm) wheels. Suitable for utility trailers, garden trailers, camping and general-purpose trailers where a compact single plastic mudguard is required. Commonly fitted during routine maintenance or as a replacement when original guards become damaged.
Also known as:
8in Trailer Wheel Arch
Single Plastic Mudguard
Plastic Fender 8in
490 x 140 x 200 mm Mudguard
Maypole part number MP265
Product Specifications
| L&S Part No. | 763 252 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
