Description
Overview:

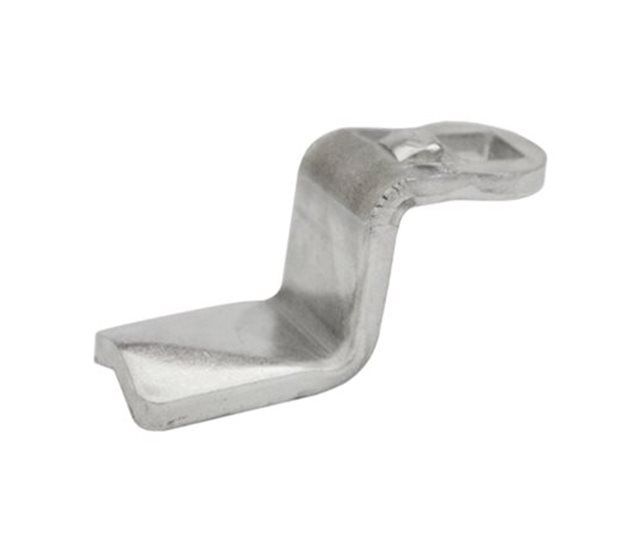

Quarter Turn Plus Cam, 45mm Length, 4mm Offset (MPN 800 1270) is a replacement cam arm for use with standard quarter‐turn locks and latches on vehicle bodies and industrial enclosures. Manufactured from mild steel with a durable zinc plated finish, it provides a robust, corrosion‐resistant cam interface for access doors, lockers and service hatches. The 4mm plus offset allows the cam to step outward from the mounting face to suit door and frame geometry, improving latch engagement where additional stand‐off is required. The 45mm overall cam length (approximately 1.77 in) offers a common reach for many panel and cabinet layouts, while the 4mm offset equates to roughly 0.16 in. Typical use includes trucks, trailers, buses, generator sets, horseboxes, cabs, machinery guards, site cabinets and catering bodies where a reliable quarter‐turn cam is required.
Key Features:
- Mild steel cam for strength and durability
- Zinc plated finish for corrosion resistance in service environments
- 45mm cam length (approx. 1.77 in) for common panel and enclosure layouts
- Plus offset configuration for outward step relative to the spindle
- 4mm offset (approx. 0.16 in) to suit door/frame stand‐off requirements
- Designed for use with quarter‐turn locks and latches on vehicle and equipment enclosures
- Suitable for commercial vehicle bodies, plant and site equipment, and static enclosures
- Supplied as a cam component for maintenance and replacement tasks
Typical Applications:
Used on access doors, lockers and service panels across commercial vehicles and equipment, including truck and trailer bodies, bus compartments, horseboxes, generator sets, machinery cabs, site cabinets and catering enclosures. Common on tool lockers, battery boxes, control panels and service hatches where a quarter‐turn latch requires a 45mm cam with a plus 4mm offset.
Also known as:
Quarter‐turn cam; Plus cam; +4mm offset cam; 45mm cam arm; Cam lever; Cam tongue; Quarter‐turn latch cam
Product Specifications
| L&S Part No. | 800 1270 |
|---|---|
| Unit of Sale | 1 |
