Description
Overview:

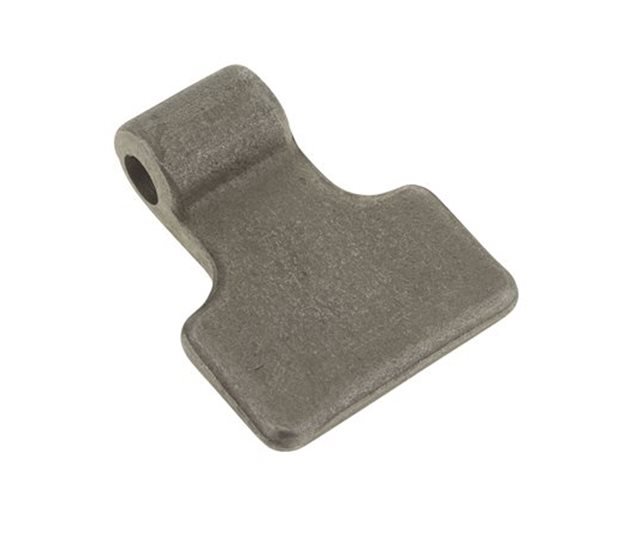

This forged steel tailboard hinge (MPN 800 1130) is a heavy-duty, weld-on component for fabricating and repairing tailboards and dropgates on commercial bodies and trailers. Manufactured from forged steel for strength, it is supplied in self colour (uncoated) to allow clean welding and finishing to suit the vehicle or equipment. The hinge features a Ø17 mm bore/pin size (approx. 0.67 in) and compact overall dimensions of 95 mm length (3.74 in), 76 mm width (2.99 in) and 38 mm height (1.50 in), making it suitable for robust tailboard pivots where space is limited. Intended for fitment on tippers, trucks, general trailers, agricultural machinery and waste handling equipment, it provides a straightforward solution for new builds, refurbishments or replacements where a forged, weld-on tailboard hinge is required. Suitable for use by bodybuilders, fleet workshops and maintenance engineers who need a durable hinge that can be positioned and welded precisely to the body or gate.
Key Features:
- Forged steel construction for high strength and durability
- Self colour (uncoated) finish for welding and subsequent painting/coating
- Weld-on fixing type for permanent attachment to body or tailboard
- Ø17 mm hinge bore/pin size (approx. 0.67 in)
- Overall length 95 mm (3.74 in)
- Overall width 76 mm (2.99 in)
- Overall height 38 mm (1.50 in)
- Designed for tailboards and dropgates on commercial vehicles and trailers
- Suitable for use on tippers, trucks, trailers, balers and skips
Typical Applications:
Used as a weld-on tailboard hinge on tipping bodies, general haulage trucks, plant and equipment trailers, agricultural balers and skips. Commonly fitted to tailboards and dropgates where a compact forged hinge is required for frequent loading, unloading and tipping operations.
Also known as:
Spade hinge, Tailgate hinge, Weld-on hinge lug, Hinge boss, Hinge eye, Tailboard hinge bracket
Product Specifications
| L&S Part No. | 800 1130 |
|---|---|
| Unit of Sale | 1 |
