Description
Overview:

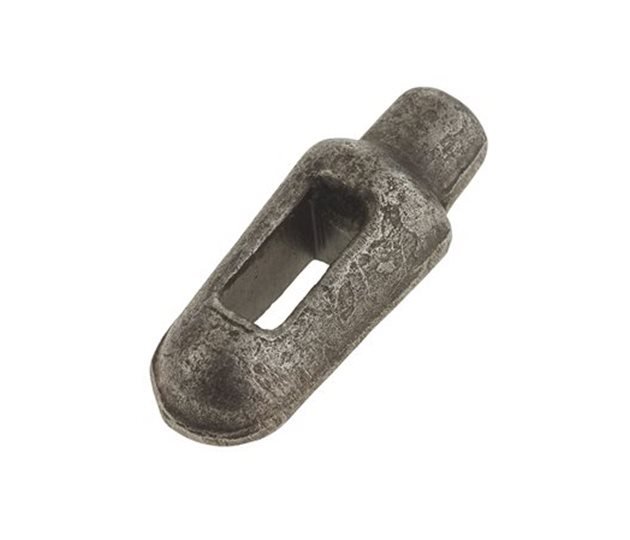

Slotted Tailboard Lug, Weld-On, Forged Steel, 17 x 7 mm Slot (MPN 800 1197) is a forged steel lug for securing dropsides and tailboards on trailers, truck bodies and similar commercial equipment. The lug is supplied in self colour (unpainted) and is intended for permanent attachment by welding to the body or board. A 17 x 7 mm slot (approximately 0.67 x 0.28 in) provides a positive location point within a tailboard retaining system. The robust forged construction is suited to demanding service on vehicles and plant where repeated opening and closing of the side or tailboard is required. Typical use includes trailers, tippers, rigid truck bodies, balers and skips where a compact welded lug is required as part of the tailboard securing arrangement. Dimensions provided below allow matching to existing hardware and to complementary body fittings during repair or new build.
Key Features:
- Forged steel construction for durability in commercial use
- Self colour finish, ready for welding and subsequent painting or finishing
- Weld-on fixing type for permanent installation on the body or board
- Slotted head: 17 x 7 mm (approx. 0.67 x 0.28 in) for secure engagement
- Diameter: 18 mm (approx. 0.71 in) as per supplier specification
- Thread: 12 mm (approx. 0.47 in) as listed in supplier data
- Suitable for tailboard and dropside retaining arrangements
- Compatible with trucks, trailers, tippers, balers and skips
- Supplied uncoated to facilitate fabrication and surface finishing to suit
- General hardware component within tailboard fittings
Typical Applications:
Used as part of a tailboard or dropside retaining setup on commercial trailers and rigid truck bodies, including tipper bodies. Also fitted to plant transport, agricultural balers and industrial skips where a welded lug is required to help retain or locate sideboards and tailgates during operation and transit.
Also known as:
Tailboard Peg; Drop-Side Lug; Tailgate Lug; Slotted Body Lug; Trailer Side Lug
Product Specifications
| L&S Part No. | 800 1197 |
|---|---|
| Unit of Sale | 1 |
