Description
Overview:

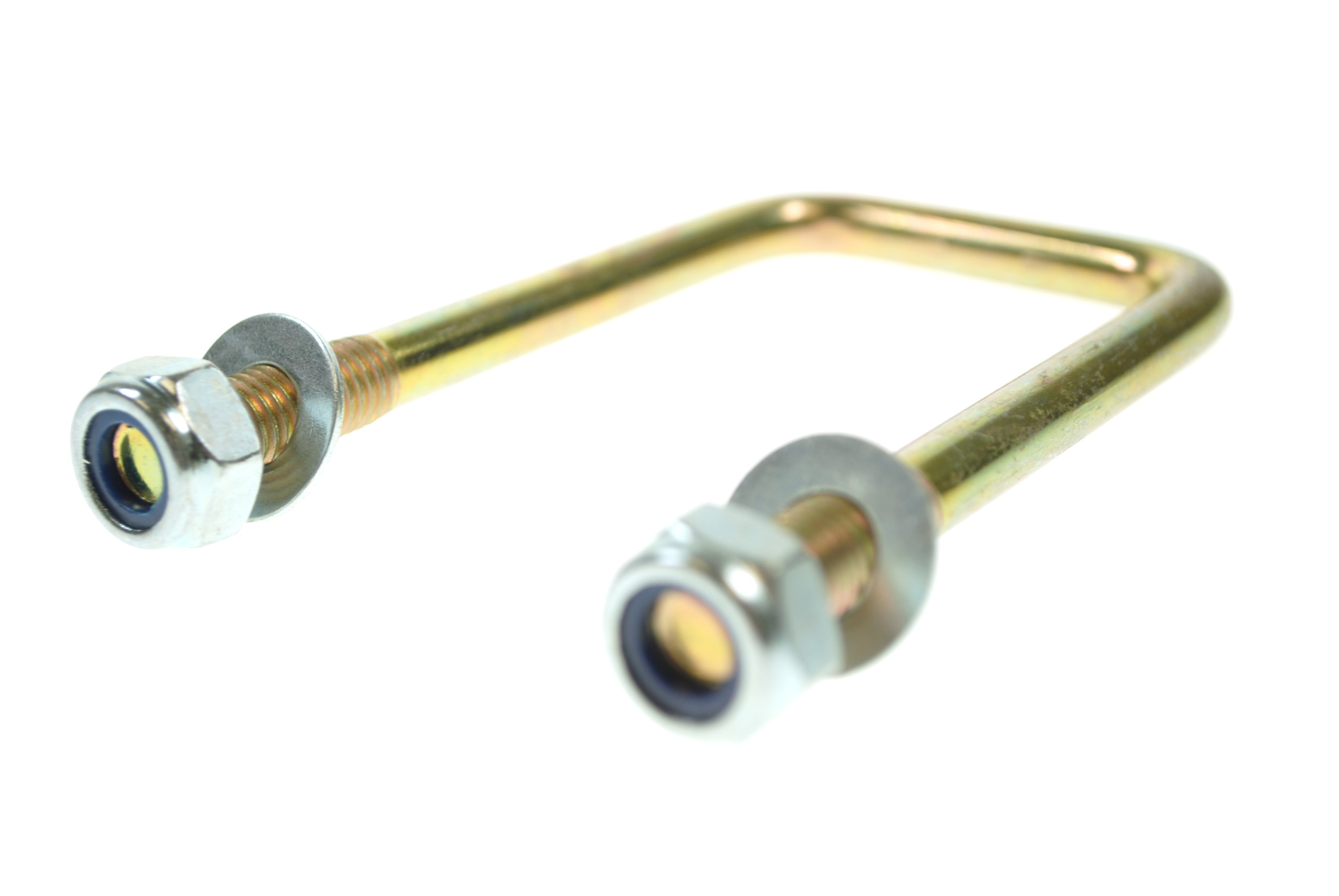

High Tensile Zinc Plated U-Bolt 50 x 76mm with Nuts & Washers (MPN 763 231) for general clamping and bracket fixing on trailers, plant transport and light commercial bodywork. Manufactured from high tensile steel for strength and durability, with a zinc plated finish to help resist corrosion in everyday service. Supplied complete with locking nuts and washers so it is ready to fit. The nominal width is 50 mm (1.97 in) with a leg length of 76 mm (2.99 in), and each threaded section is 30 mm long (1.18 in) to give adequate adjustment and clamp-up on common trailer plates and sections. Used to secure plates, angle, tube and accessories to chassis rails, drawbars and crossmembers where these dimensions match. A 60 Nm tightening torque is suggested as a guide only and should be confirmed against the actual installation and materials being clamped.
Key Features:
- High tensile steel U-bolt for robust clamping
- Zinc plated for corrosion protection in service
- Supplied with locking nuts and washers
- Width: 50 mm (1.97 in)
- Length: 76 mm (2.99 in)
- Thread length: 30 mm (1.18 in) on each leg
- Standard U pattern with twin threaded legs
- Suggested tightening torque: 60 Nm, subject to application
Typical Applications:
Used across trailer and plant transporter bodywork for fastening brackets and hardware to chassis rails, drawbars and crossmembers. Commonly selected for clamping mudguard stays, marker board brackets, tie-down fittings, plates and tube to 50 mm sections, or for general-purpose retention where a 76 mm leg length suits the stack height. Suitable for utility trailers, light commercial body fittings and workshop fabrication where a reliable U-bolt with nuts and washers is required.
Also known as:
U Clamp
Saddle Clamp
Trailer U-Bolt 50 x 76
Bodywork U-Bolt
Pipe Support U-Bolt
Maypole part number MP914B
Product Specifications
| L&S Part No. | 763 231 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - High tensile steel for robust clamping - Zinc plated for corrosion resistance - Includes locking nuts and washers - Width: 50 mm, Length: 76 mm - Thread length: 30 mm on each leg |
