Description
Overview:

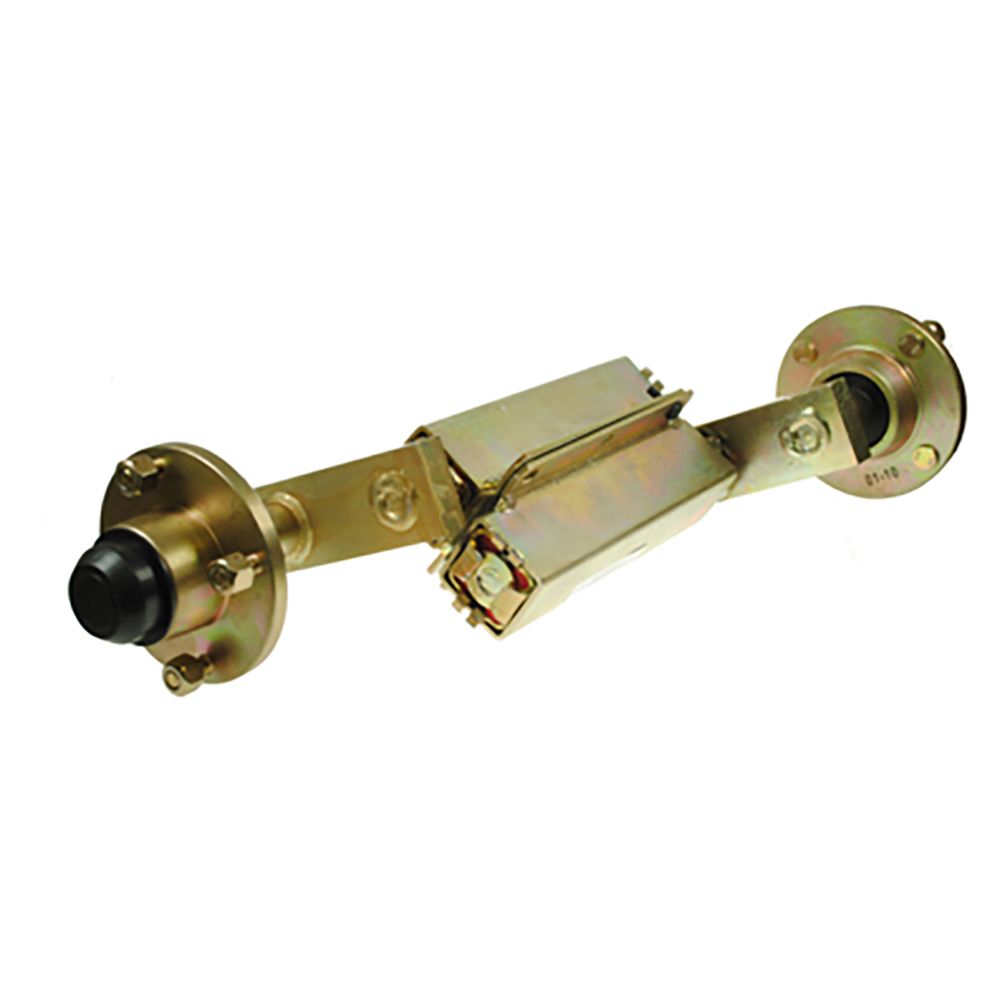

Trailer Suspension Unit Pair with Hubs (MPN 211 021) is a matched left- and right-hand set for light-duty trailer running gear, combining compact axleless suspension with pre-fitted wheel hubs. Each unit is manufactured in steel with a yellow zinc-plated finish for corrosion resistance and uses a long-life polyurethane suspension element to absorb road shock and vibration. The hubs are equipped with taper roller bearings for serviceable performance and are drilled 4 studs on 4 inches (101.6 mm) PCD to suit common small trailer wheel patterns. Designed for 8 inch (203.2 mm) and 10 inch (254 mm) wheels, the assembly is rated at 500 kg per pair across both sides. Chassis mounting is via six M8 fixing holes per unit, and the wheel studs are 3/8 inch UNF to accept standard conical wheel nuts. Suitable for new builds and replacements in workshops, plant hire and fleet maintenance environments.
Key Features:
- 500 kg load rating per pair (combined LH and RH units)
- Supplied as left- and right-hand suspension units with hubs pre-fitted

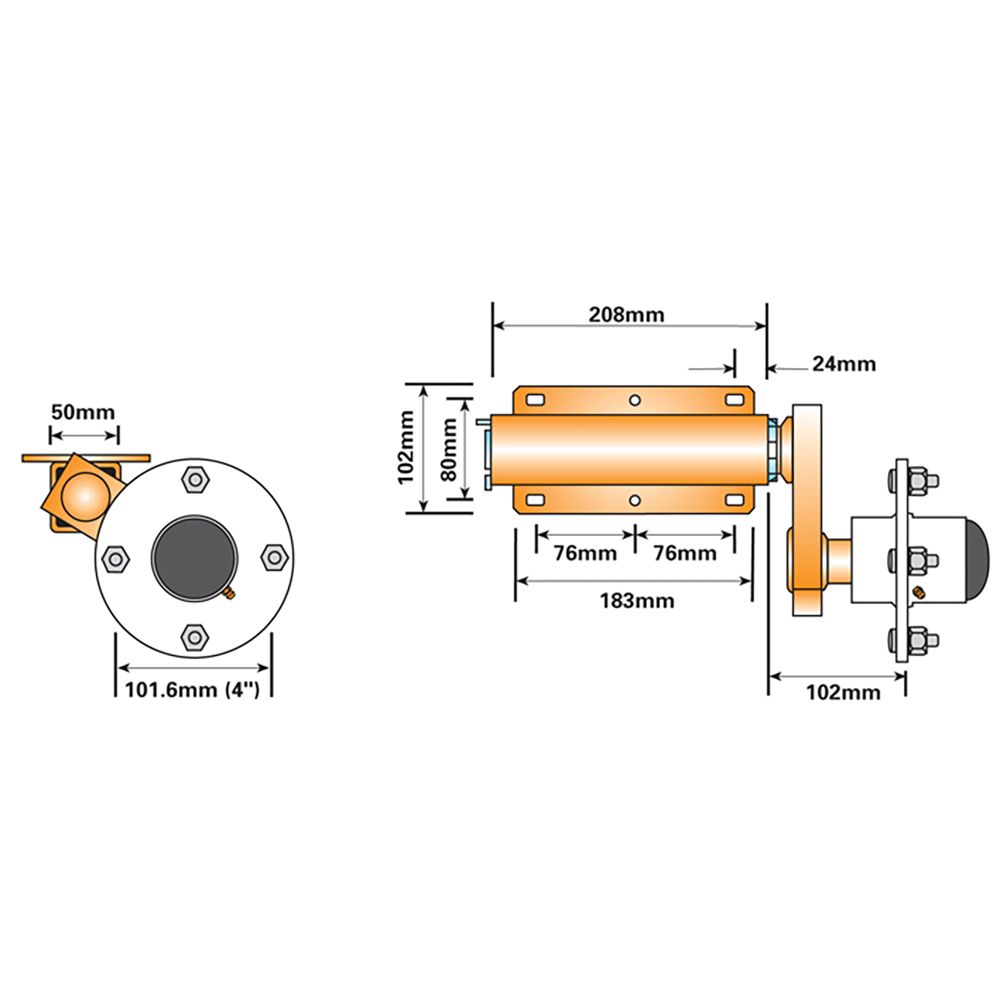

- 4-stud on 4 in (101.6 mm) PCD hub pattern for small trailer wheels
- Suits 8 in (203.2 mm) and 10 in (254 mm) wheel sizes
- Yellow zinc-plated steel finish for corrosion resistance
- Long-life polyurethane suspension element for durability
- Hubs fitted with taper roller bearings for smooth running and serviceability
- Six M8 mounting holes per unit for chassis attachment
- Wheel studs 3/8 in UNF; uses 3/8 in UNF conical wheel nuts
- Compatible spares: MP418 hub, MP418CB hub cap, MP4181 bearing kit, MP4185B studs, MP4187B conical nuts
Typical Applications:
Used on light-duty trailers where a compact suspension and hub assembly is required, including small general-purpose and utility trailers, box trailers, site and equipment carriers, and small marine or leisure trailers. Fits wheels using the 4-stud 4 in (101.6 mm) PCD and 8 in or 10 in diameters. Service and maintenance are supported with compatible Maypole spares such as MP418 hubs and MP4181 bearing kits.
Also known as:
- Trailer Suspension Units with Hubs, 500 kg Pair
- 4-Stud 4" PCD Suspension Units
- LH/RH Suspension Arm Pair with Hubs
- Maypole part number MP211
Product Specifications
| L&S Part No. | 211 021 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
