Description
Overview:

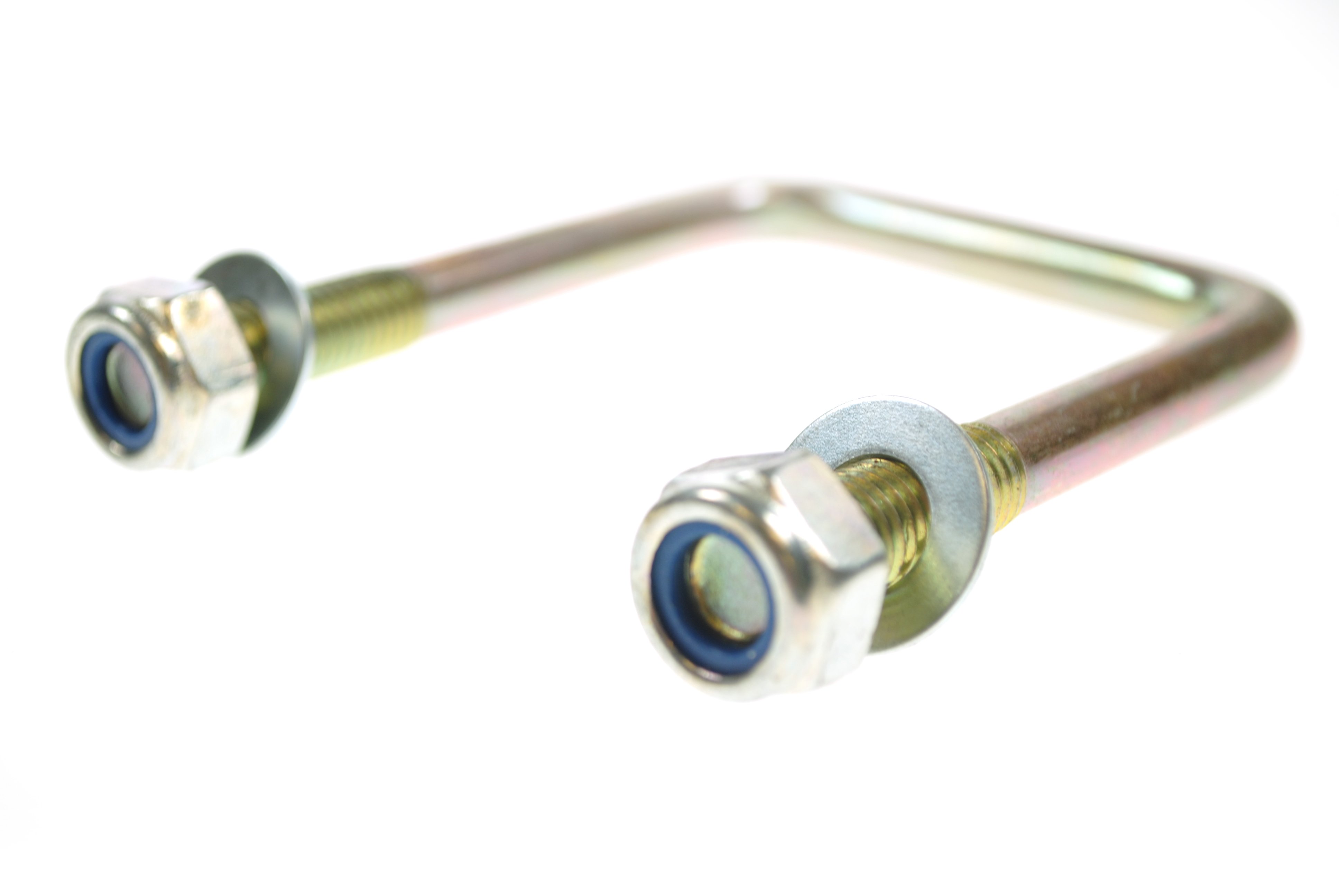

The Square U-Bolt 60 x 60 mm (MPN 763 223) is a high tensile steel fixing used to clamp brackets, fittings and sections securely on trailers, plant, and general transport equipment. It is zinc plated to provide resistance to corrosion in road and site conditions. The nominal size is 60 mm x 60 mm (approximately 2.36 in x 2.36 in), making it suitable for bracketing around components or sections of a similar dimension. Each leg has an approximate 30 mm (about 1.18 in) threaded section to accept the supplied locking nuts and washers, allowing a firm, vibration-resistant assembly. Typical uses include securing body fittings, guard stays, light boards, carriers and other accessories to chassis rails, crossmembers and box sections on trailers, caravans, light commercials and plant transport. A guide tightening torque of 60 Nm (about 44 lb-ft) may be used, subject to the specific application and mating materials.
Key Features:
- High tensile steel square U-bolt for robust clamping
- Zinc plated finish for corrosion resistance in service
- Nominal size: 60 mm x 60 mm (approx. 2.36 in x 2.36 in)
- Approx. 30 mm (about 1.18 in) threaded section on each leg
- Supplied complete with locking nuts and flat washers
- Square pattern suited to box, angle and flat sections
- Guide tightening torque: 60 Nm (about 44 lb-ft), application dependent
Typical Applications:
Used to mount and secure body fittings and accessories to trailer and plant chassis, including brackets, mudguard stays, light boards, carriers and tool or equipment mounts. Common on general-duty trailers, caravans, plant transporters and towing setups where a square U-bolt is required to clamp components to 60 mm sections.
Also known as:
Maypole part number MP916B
Square U Clamp 60 x 60
Chassis U-Bolt
Box Section U-Bolt
U Clamp with Nuts and Washers
Product Specifications
| L&S Part No. | 763 223 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - High tensile steel for robust clamping - Zinc plated for corrosion resistance - Nominal size: 60 mm x 60 mm - 30 mm threaded section on each leg - Includes locking nuts and flat washers |
