Description
Overview:

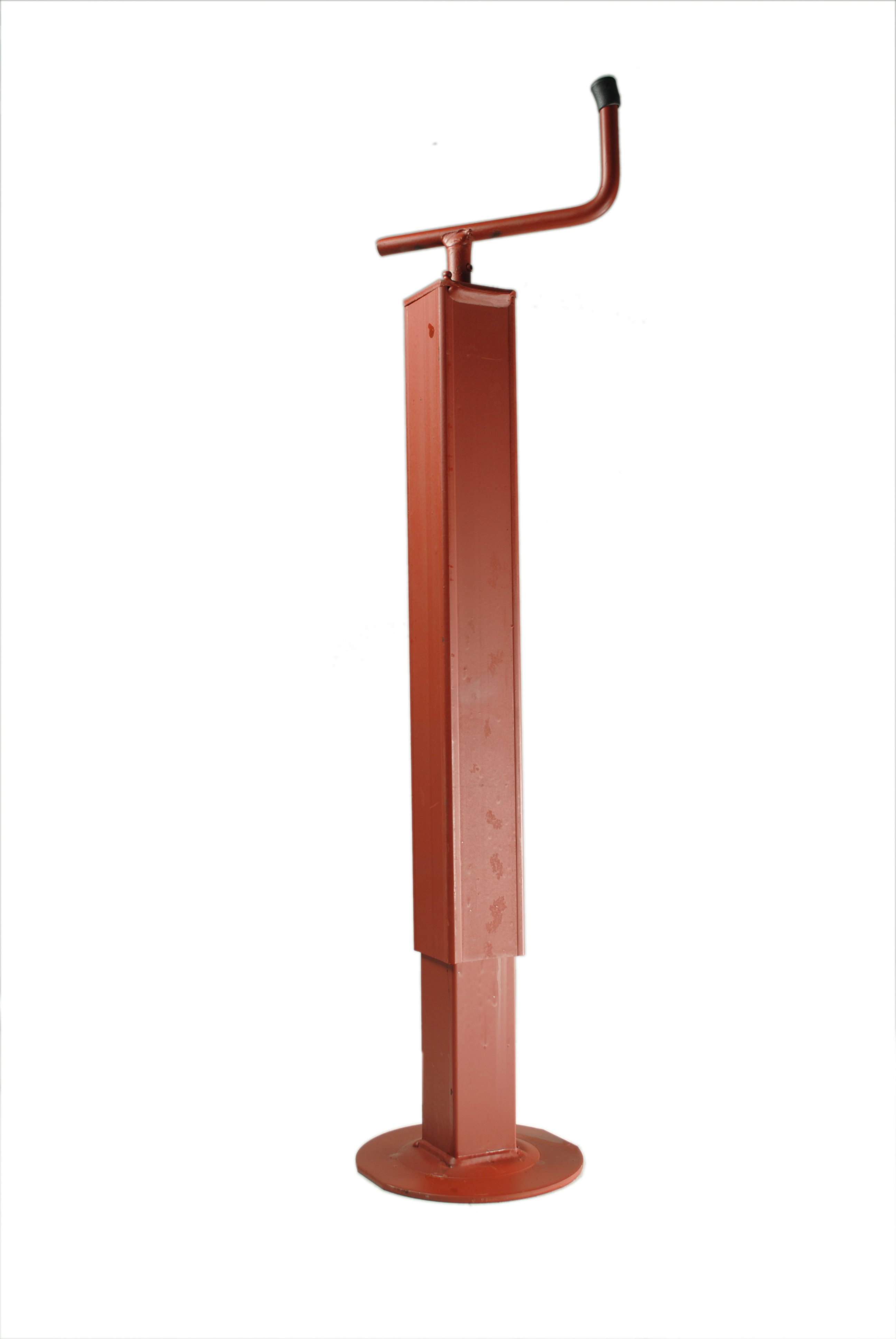

This telescopic trailer jack (MPN 763 831) is a heavy-duty support jack designed for lifting, levelling and stabilising trailers during coupling, uncoupling and routine maintenance. Built around a 60 x 60 mm box-section outer tube, the unit provides a robust, steady platform and a long service life in fleet and site use. The jack winds from approximately 475 mm to 800 mm (18.7 in to 31.5 in), giving a wide operating range for varied trailer heights. A top-mounted handle offers easy access in busy yards and on-site. The red powder-coated finish provides a durable protective layer and can be removed locally where welding is required during installation. A grease nipple is fitted for ongoing gear lubrication; add grease before first use and as part of routine maintenance. Rated for a 600 kg (1323 lb) maximum static load.
Key Features:
- Maximum static load: 600 kg (1323 lb)
- Telescopic wind range: 475-800 mm (18.7-31.5 in), excluding handle
- Outer tube: 60 x 60 mm (2.36 x 2.36 in) box section
- Top-mounted winding handle for easy access
- Rapid winding mechanism for quicker height adjustment
- Grease nipple fitted for gear lubrication; grease before first use
- Red powder-coated finish; coating can be removed locally for welding
- Heavy-duty construction for stability during lifting and levelling
Typical Applications:
Used on trailers in construction, plant hire, agriculture and general transport where reliable support is required for coupling, uncoupling, levelling and maintenance. Suitable for fitting to chassis or drawbar locations that accept a 60 mm box-section jack and where a top-handle arrangement is preferred. The broad adjustment range helps accommodate varied hitch heights across mixed fleets and site conditions.
Also known as:
Trailer Support Jack
Telescopic Trailer Steady
Trailer Propstand
600 kg Trailer Jack
Maypole part number MP979
Product Specifications
| L&S Part No. | 763 831 |
|---|---|
| Part Type | Genuine Part |
