Description
Overview:

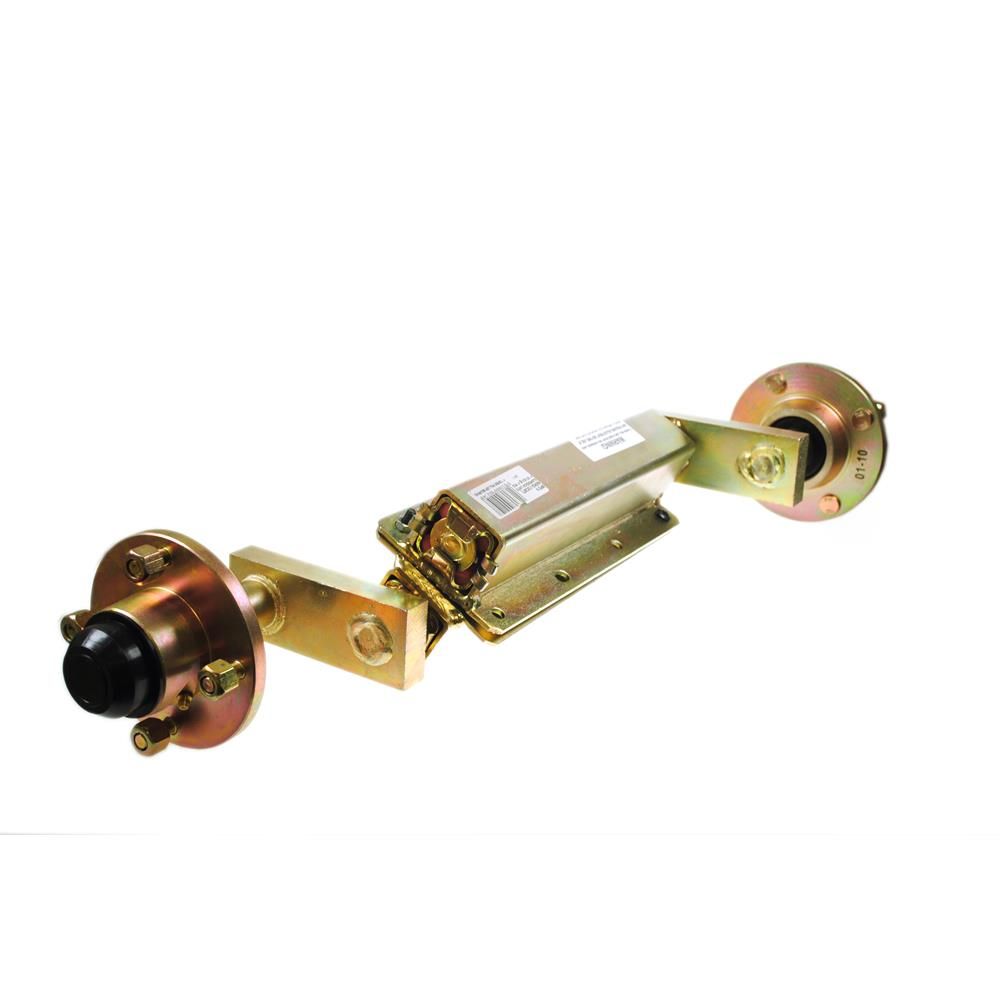

These trailer suspension units with hubs (MPN 211 022) are supplied as a matched left-hand and right-hand pair for light trailers using 4-stud wheels on a 4in (101.6mm) PCD. Each unit features a yellow zinc plated steel arm and backplate with long-life polyurethane suspension to provide a compact, axle-less mounting for the trailer stub axle and hub. The hubs are factory-fitted with taper roller bearings for durability and ease of service. Designed to suit 8in (203.2mm) and 10in (254mm) wheels, this set is widely used on small domestic, commercial and plant support trailers where space and weight savings are important. The backplates offer multiple M8 fixing points for straightforward chassis attachment. The assembly is a practical choice for new builds, fleet maintenance and refits where a robust, low-maintenance suspension and hub solution is required, with spares support available for the hub, studs, nuts, cap and bearing kit.
Key Features:
- Pair of suspension units with hubs (left-hand and right-hand), rated 650kg per pair
- Yellow zinc plated finish on arms and backplates for corrosion protection
- Long-life polyurethane suspension for consistent ride and load support
- Hubs fitted with taper roller bearings for strength and serviceability
- Wheel fitment: 4 studs on 4in (101.6mm) PCD
- Wheel size compatibility: 8in (203.2mm) and 10in (254mm) wheels
- 8 x M8 mounting holes on each backplate for flexible chassis fixing
- 3/8in UNF wheel studs and conical nuts supported (MP4185B studs, MP4187B nuts)
- Hub spares support: MP418 hub, MP418CB hub cap, MP4181 bearing kit (per hub)
Typical Applications:
Used on small to medium utility, box, camping and plant support trailers where independent, axle-less suspension is required. Suits 4-stud, 4in (101.6mm) PCD wheels commonly referred to as "Mini" pattern, in 8in and 10in sizes. Suitable for trailer builds, upgrades and repairs where a compact suspension arm and hub assembly with taper roller bearings is preferred, and where ongoing parts support for hubs, bearings and fixings is needed.
Also known as:
- Maypole part number MP214
- 4-Stud 4in PCD Mini Hub Suspension Units
- Torsion Suspension Units with Hubs
- Stub Axle Suspension Arm Pair
- Polyurethane Trailer Suspension Units
Product Specifications
| L&S Part No. | 211 022 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
