Description
Overview:

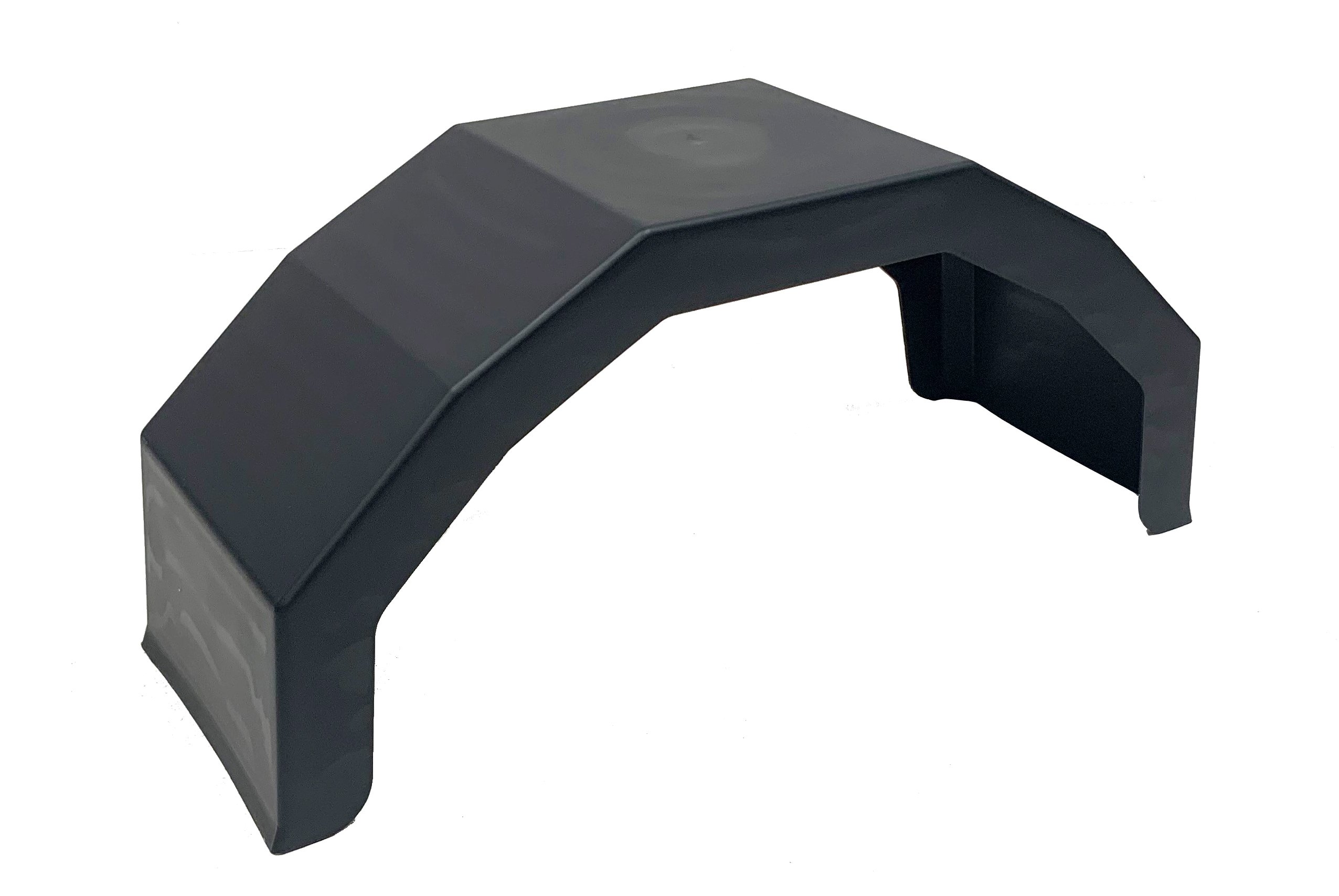

This single plastic trailer mudguard (MPN 763 728) is designed for trailers running 10 inch (254 mm) wheels. It provides a protective cover over the tyre to reduce spray, mud and debris from reaching the trailer bed, bodywork and following traffic. The guard is moulded from durable plastic for everyday trailer use, offering a non-corroding, easy-to-clean alternative to steel. Overall drawing dimensions are length 660 mm, depth 245 mm and height 290 mm, with a V dimension of 65 mm to match common mounting spaces used on light trailer chassis. The profile suits single-wheel installations and is widely used on general-purpose and transport trailers. Typical applications include replacements or new builds on popular UK trailer platforms where a compact mudguard is required for 10 inch wheel fitments, including models from Ifor Williams and Indespension.
Key Features:
- For 10 inch (254 mm) wheel installations
- Overall dimensions: L 660 mm, D 245 mm, H 290 mm, V 65 mm (per drawing)
- Single-wheel pattern plastic mudguard for light trailers
- Moulded plastic construction; non-corroding and low maintenance
- Suitable for common UK trailer brands including Ifor Williams and Indespension
- Helps contain water and road debris, protecting bodywork and loads
- Lightweight design for straightforward handling and positioning
Typical Applications:
Fitted above the tyre on small and medium trailers to control spray and protect the trailer structure. Commonly used on utility, goods and transport trailers equipped with 10 inch wheels, including many models from Ifor Williams and Indespension. Suitable for routine replacements where the existing guard is cracked or worn, or for new trailer builds that require a compact single mudguard in this size.
Also known as:
Trailer Wheel Arch
Single Plastic Mudguard 10 Inch
Trailer Mudguard (Plastic)
Maypole part number MP2663
Product Specifications
| L&S Part No. | 763 728 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Designed for 10 inch (254 mm) wheel installations - Dimensions: 660 x 245 x 290 mm, V dimension 65 mm - Moulded plastic construction; non-corroding and low maintenance - Compatible with Ifor Williams and Indespension trailers - Controls spray and debris, protecting trailer bodywork and loads |
