Description
Overview:

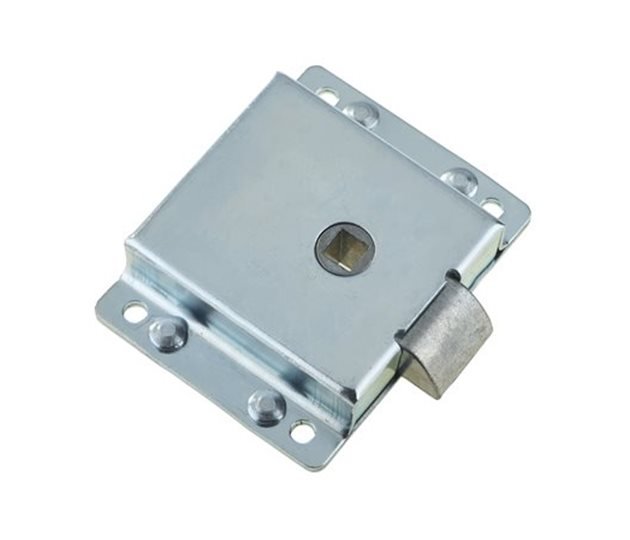

Slam Lock, 88 x 68.5 mm, Zinc Plated, No Handle, 8 mm Square Drive (MPN 800 1402) is a compact slam-action latch for doors, lockers and access panels on commercial vehicles and equipment. The body is pressed from mild steel with a zinc plated finish for general corrosion protection, and it uses a zinc die-cast tongue. Overall dimensions are 88 mm (3.46 in) length by 68.5 mm (2.70 in) width with an 18.5 mm (0.73 in) body thickness, giving a low-profile fit on vehicle bodywork and enclosures. The latch is operated via an 8 mm (0.31 in) square drive to suit a compatible handle or linkage, and is supplied as the lock unit only without a handle. Fixing is via 5.5 mm (0.22 in) diameter mounting holes. Typical uses include service doors, side lockers and access hatches on trucks, trailers, buses, generator sets and horseboxes, as well as cab storage and body panels where a reliable slam-to-close action is required.
Key Features:
- Pressed mild steel body with zinc plated finish
- Zinc die-cast tongue, 11 mm (0.43 in)
- Overall size: 88 mm (3.46 in) length x 68.5 mm (2.70 in) width
- Body thickness: 18.5 mm (0.73 in)
- 8 mm (0.31 in) square drive
- Mounting holes: Ø5.5 mm (0.22 in)
- Supplied without handle (lock unit only)
- Brand: Albert Jagger
Typical Applications:
Used on trucks, trailers, buses and horseboxes for locker doors and access panels, and on generator sets (gensets) and cabs where a slam-to-close latch is required for compartments and service hatches.
Also known as:
Slam latch, pressed steel slam latch, vehicle door slam lock, square drive slam lock, door slam catch
Product Specifications
| L&S Part No. | 800 1402 |
|---|---|
| Unit of Sale | 1 |
