Description
Overview:

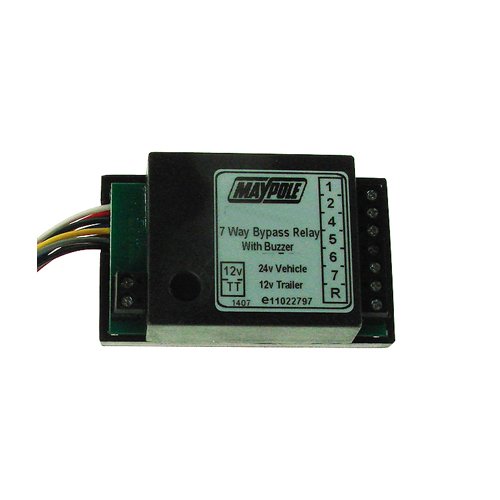

Seven-way bypass relay for towing installations on 24V vehicles, providing a 12V output for trailer lighting circuits. The module senses the vehicle's lighting signals (including indicators/flashers) and switches the trailer circuits from a separate fused 12V supply, so the base vehicle wiring is not directly loaded. An internal sounder gives an audible indicator confirmation, and an auxiliary monitor output is available for a dash tell‐tale lamp or an additional buzzer. Made in the UK.
Specification:
- 7-way bypass relay for towing electrics
- For 24V vehicles supplying 12V trailer lighting
- Requires an independent fused 12V power feed
- Internal buzzer for indicator/flasher monitoring
- Auxiliary output for panel lamp or external buzzer
- UK manufactured
- Maypole part number: MP3879B
Typical Applications:
Used when fitting towbar electrics to 24V trucks, tippers, plant carriers and recovery vehicles to tow trailers with 12V road lights. Suitable for plant and equipment trailers where 12V lighting needs to be driven safely from a 24V base vehicle.
Product Specifications
| L&S Part No. | 763 827 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
