Description
Overview:

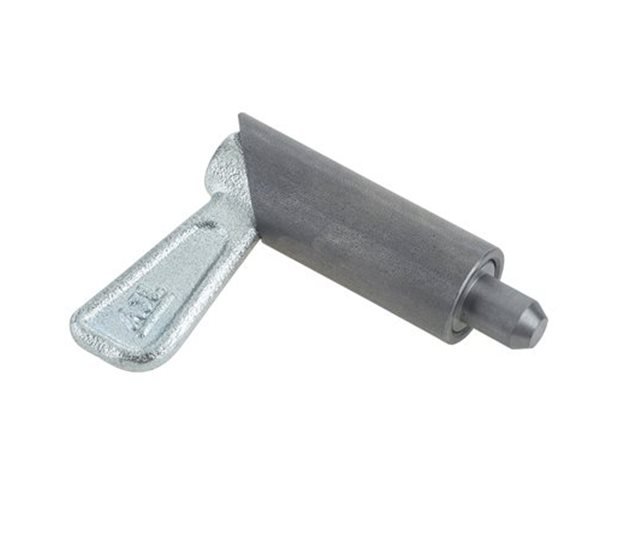

This weld-on medium duty shoot bolt (MPN 800 1080) is a compact, durable latch component for securing doors, hatches and guards on commercial vehicles and equipment. Manufactured from mild steel in self colour (uncoated), it is intended to be welded to a suitable frame or bracket as part of a robust mechanical locking arrangement. The unit features a Ø10 mm (0.39 in) pin with a controlled 14 mm (0.55 in) stroke; the pin retracts up to 15 mm (0.59 in) to clear the keeper. The body measures Ø20 mm (0.79 in) by 56 mm (2.20 in) overall length, providing a solid package for general hardware duties where a positive pin engagement is preferred. Typical uses include van doors, trailers, bodywork, skips, balers, agricultural machinery and plant, delivering consistent alignment and secure retention in service.
Key Features:
- Material: mild steel, self colour (uncoated)
- Type: weld-on installation
- Pin diameter: Ø10 mm (0.39 in)
- Stroke: 14 mm (0.55 in); retractable travel 15 mm (0.59 in)
- Body diameter: Ø20 mm (0.79 in)
- Body length: 56 mm (2.20 in)
- Medium duty design for general hardware applications
- Brand: Albert Jagger
Typical Applications:
Used on commercial vehicle bodies, van doors and trailers, as well as on skips, balers, agricultural machinery and general plant. Suitable for securing doors, flaps, tailgates and guards where a weld-on positive pin latch is required for repeatable, reliable engagement.
Also known as:
Spring Bolt; Plunger Bolt; Spring Plunger; Barrel Bolt (Weld-On); Door Pin Latch; Pin Latch
Product Specifications
| L&S Part No. | 800 1080 |
|---|---|
| Unit of Sale | 1 |
