Description
Overview:

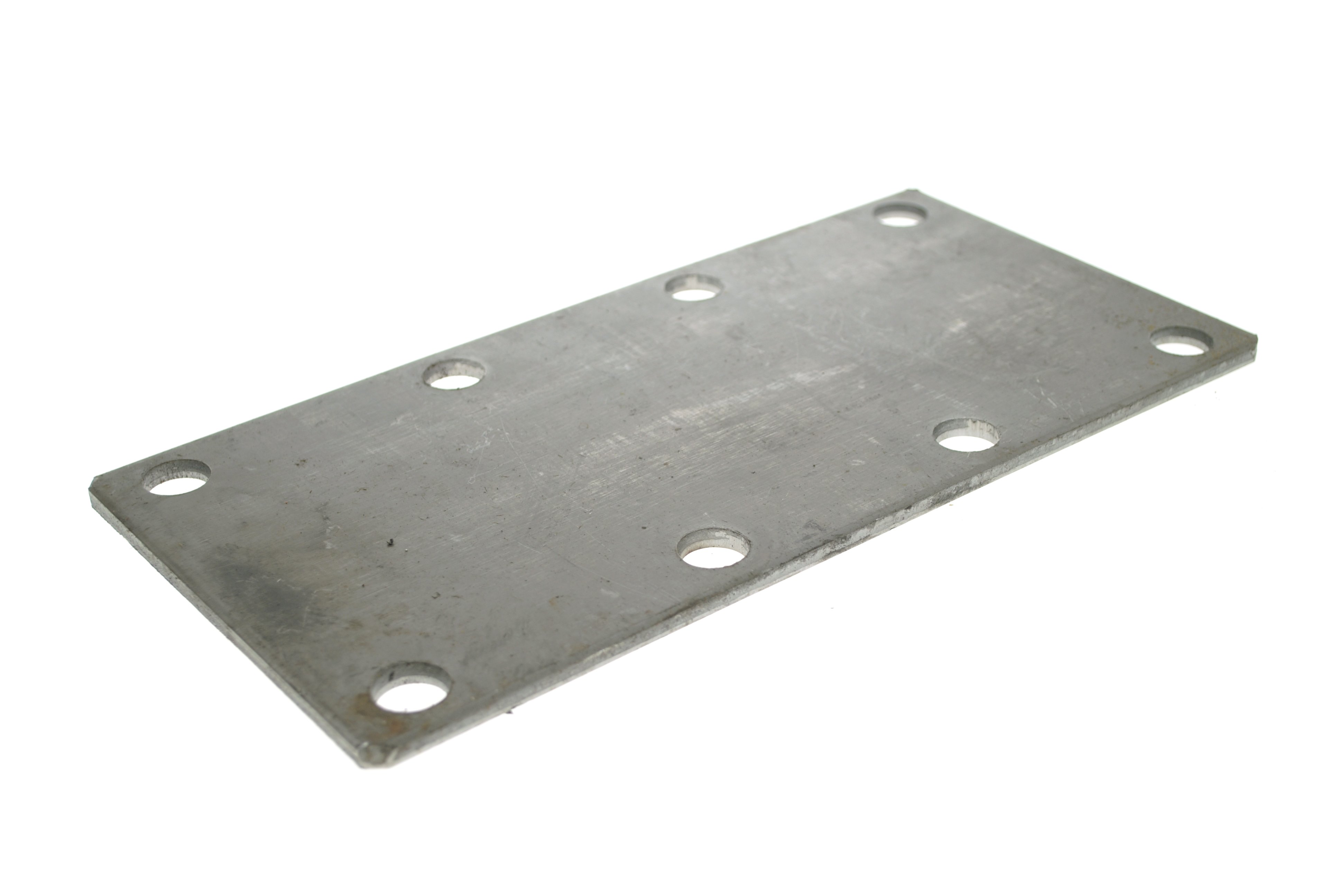

This 8‐hole Suspension Unit Mounting Plate (MPN 763 596) is a weld‐on steel plate designed to provide a strong, accurately aligned fixing face for trailer suspension units. The plate is pre‐drilled with eight M14 holes to suit common suspension unit fixings, allowing a secure bolted joint between the suspension backplate and the chassis structure. Supplied self‐coloured (bare steel), it is ready for welding into position and for finishing after fabrication. The plate is suitable for use with suspension units in the 750 kg to 1500 kg range, making it a practical choice for general duty, plant and utility trailers built or maintained in workshops and fleet facilities. Use it in new trailer builds, axle conversions or repair work where a clean, consistent mounting surface is required to restore geometry and load transfer into the chassis rails or cross‐members.
Key Features:
- Eight mounting holes sized for M14 fixings
- For suspension units rated from 750 kg to 1500 kg
- Supplied self‐coloured (bare steel) for welding and finishing
- Weld‐on plate provides a flat, rigid mounting face
- Compatible with standard M14 trailer suspension hardware
- Suitable for new builds, conversions and repairs
- Allows painting, powder coating or galvanising after fabrication
- Robust steel construction for workshop and fleet use
Typical Applications:
Used to mount independent trailer suspension units to chassis rails or cross‐members on general duty, plant, utility, tipper and boat trailers. Ideal where a weld‐on solution is required to position and secure units within the 750-1500 kg range, ensuring consistent bolt spacing with M14 fixings and a durable interface between the suspension assembly and the trailer frame.
Also known as:
Suspension unit mounting plate
8‐hole suspension bracket plate
Weld‐on suspension backing plate
Suspension unit fixing plate
Maypole part number MP469
Product Specifications
| L&S Part No. | 763 596 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
