Description
Overview:

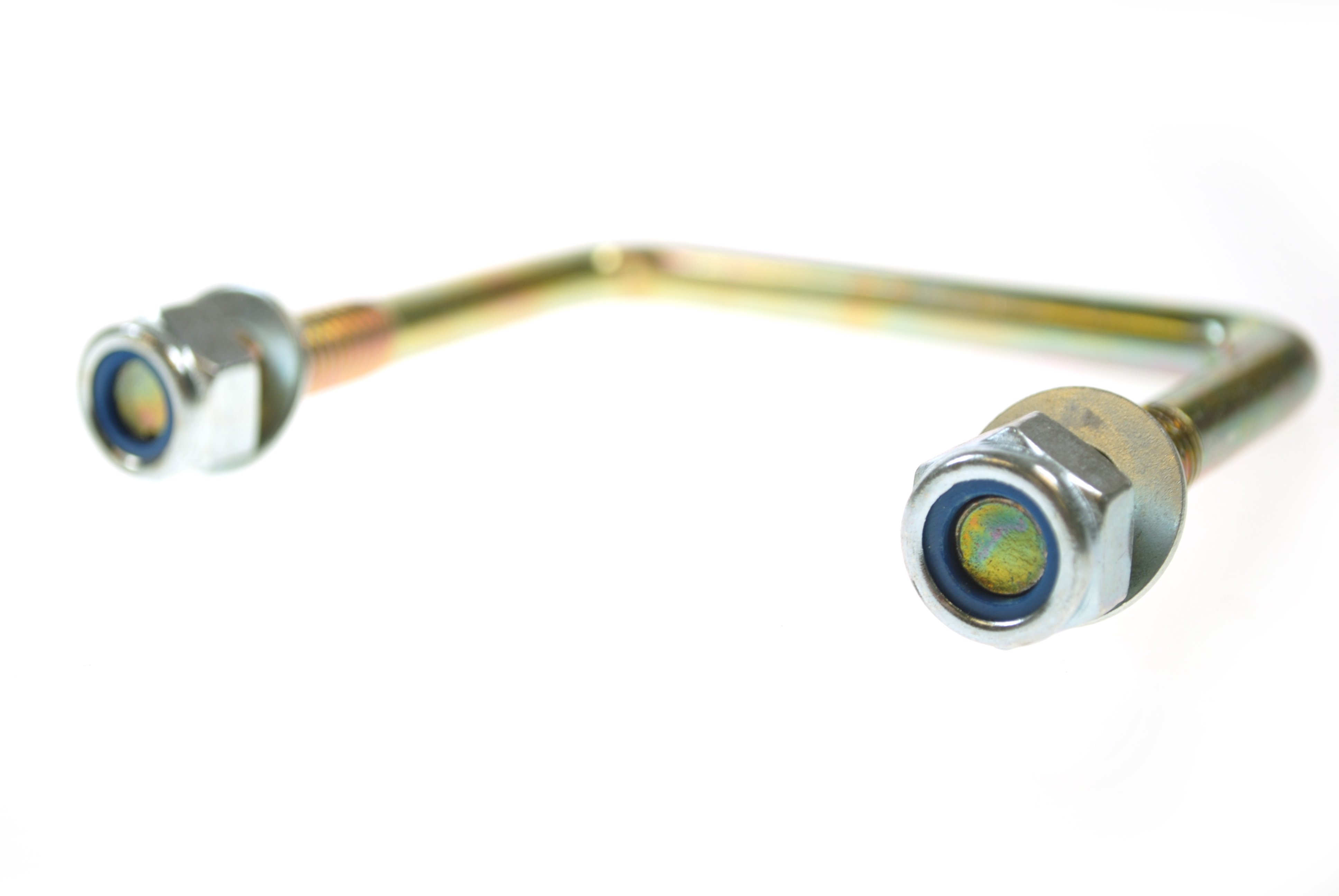

This zinc-plated high tensile U-bolt with locking nuts and washers (MPN 763 204) is a compact clamp fixing for trailer and bodywork applications where a short leg length is required. Made from high tensile steel for reliable clamping strength, it is finished in bright zinc plating to resist corrosion in service. The U-bolt measures 80 mm width by 46 mm length, making it suitable for securing brackets and fittings to chassis rails, drawbars and cross-members where space is limited. The threaded portion on each leg is 30 mm long to accept the supplied washers and locking nuts while leaving adequate adjustment for most body fitting and mounting tasks. Typical uses include fixing mudguard stays, lashing ring plates, light brackets, pipe clips and protection guards on trailers, plant carriers, agricultural implements and light commercial bodies. Dimensions are provided in both metric and imperial for reference: width 80 mm (3.15 in), length 46 mm (1.81 in), thread length 30 mm (1.18 in). A tightening torque of 60 Nm is suggested as a general guide, subject to the application and materials being clamped.
Key Features:
- High tensile steel U-bolt for dependable clamping
- Bright zinc plated finish for corrosion resistance
- Supplied complete with locking nuts and flat washers
- Width 80 mm (3.15 in) x length 46 mm (1.81 in)
- Thread length 30 mm (1.18 in) on each leg
- Suggested tightening torque: 60 Nm, subject to application
- Suitable for general trailer and body fitting use
Typical Applications:
Used to clamp brackets and plates to trailer chassis rails, drawbars and cross-members; mounting mudguard stays, pipe clips, lashing ring plates, light and marker lamp brackets, guards and ancillary fittings on general-purpose trailers, plant transporters, agricultural equipment and light commercial vehicle bodies where an 80 mm wide, short-leg U-bolt is required.
Also known as:
U-bolt with Nuts and Washers; Zinc Plated U-Bolt; 80 x 46 mm U-Bolt; Trailer Body U Clamp; Maypole part number MP923B
Product Specifications
| L&S Part No. | 763 204 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - High tensile steel for reliable clamping strength - Bright zinc plating resists corrosion - Measures 80 mm width x 46 mm length - 30 mm thread length on each leg - Includes locking nuts and flat washers |
