Description
Overview:

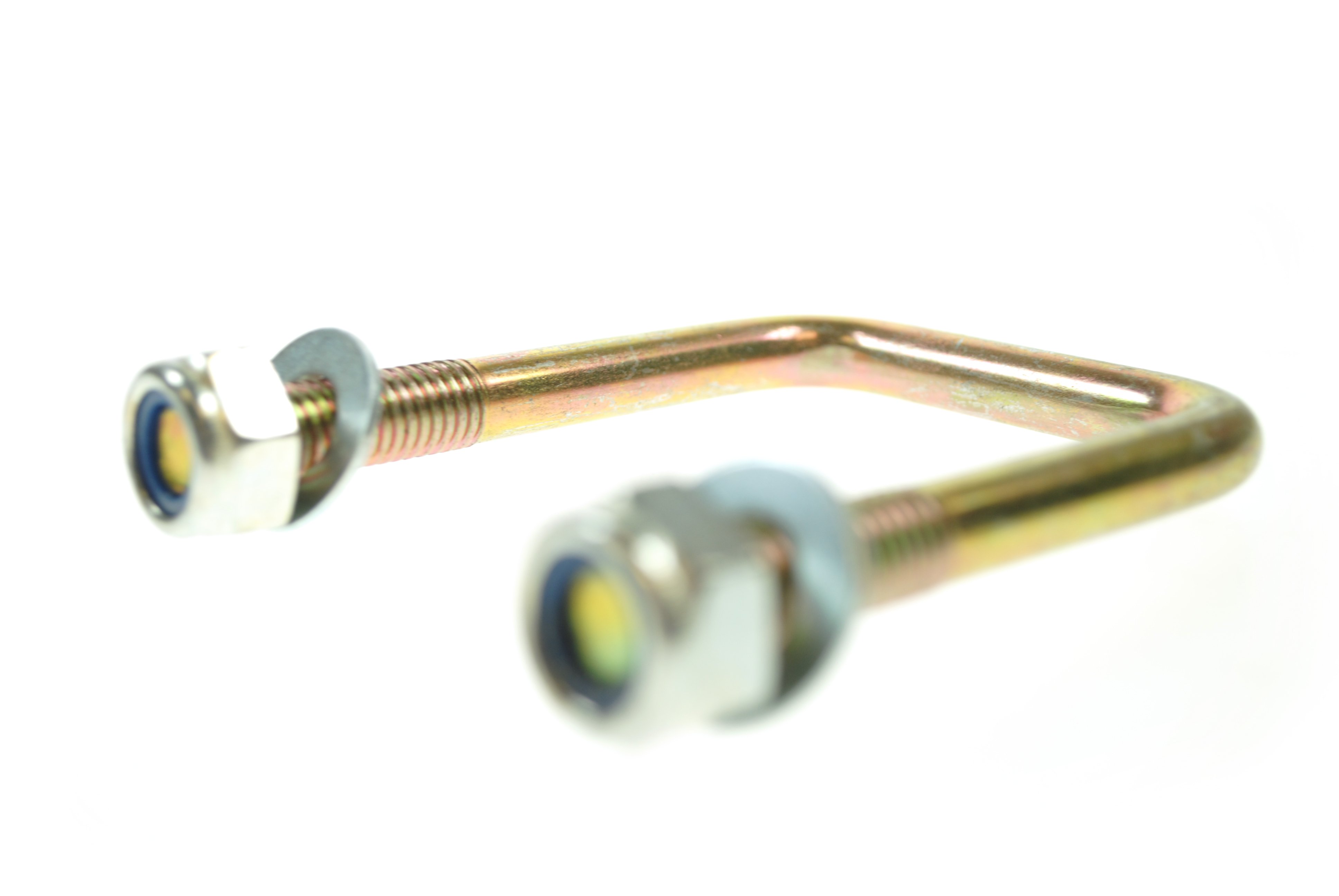

This high tensile steel U-bolt 80 x 86mm (MPN 763 250) is a general-purpose clamp for securing brackets, plates and box or round sections to trailer and body structures. It is zinc plated for corrosion resistance in road and site environments and comes complete with locking nuts and flat washers for a secure installation. The size refers to an 80 mm width and 86 mm leg length, with 30 mm of usable thread on each leg for clamping adjustment. Typical uses include fixing body fittings to trailer chassis members, drawbars and cross-members, or mounting auxiliary equipment where a through-bolt is impractical. Suitable for plant trailers, general duty trailers, light commercial builds and agricultural equipment where a durable U-bolt with a protective finish is required.
Key Features:
- High tensile steel U-bolt for robust clamping
- Zinc plated finish for corrosion protection
- Supplied with locking nuts and flat washers
- Width 80 mm x leg length 86 mm (approx. 3.15 in x 3.39 in)
- Threaded section 30 mm on each leg (approx. 1.18 in)
- Suitable for securing brackets, plates and sections to chassis members
- Guidance torque 60 Nm, subject to application and fastener specification
Typical Applications:
Used to clamp body fittings, plates and mounting brackets to trailer chassis rails, cross-members and drawbars. Common on plant and equipment trailers for securing mudguard stays, lashing point plates, conduit and pipe clips, and light-duty supports where a U-form fixing is preferred. Also suited to general fabrication tasks on utility trailers and light commercial builds requiring a zinc plated, high tensile U-bolt with included nuts and washers.
Also known as:
U Clamp
U-Bolt Clamp
Saddle Clamp
Chassis Clamp
Maypole part number MP924B
Product Specifications
| L&S Part No. | 763 250 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
