Description
Overview:

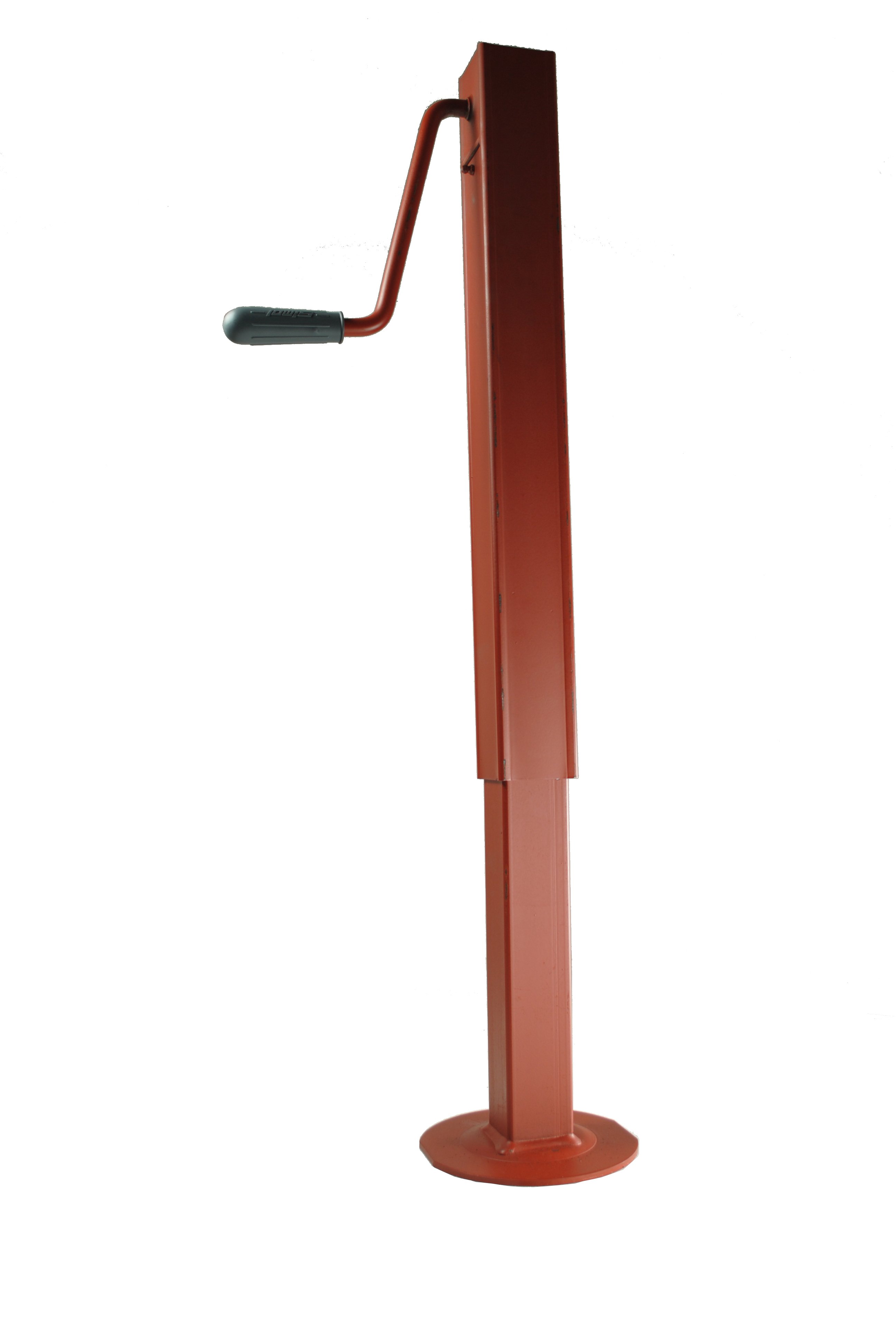

Telescopic Trailer Jack 800kg, 60mm Square, 550-900mm (MPN 763 928) is a heavy-duty support jack for stabilising, levelling and coupling trailers and towable equipment. The unit uses a 60 x 60 mm outer square tube (approx. 2.36 x 2.36 in) and telescopes from roughly 550 mm to 900 mm (about 21.65 to 35.43 in) to cover common height requirements on plant, construction and general-purpose trailers. A side-wind handle operates a rapid-wind mechanism for quick extension and retraction, and a grease nipple is provided for ongoing lubrication of the gearing. The jack carries a maximum static load rating of 800 kg (approx. 0.8 tonne / 1,764 lb). Supplied with a red powder-coated finish that can be removed locally to allow welding to brackets or chassis as required. Stated retracted and extended lengths exclude the handle length.
Key Features:
- 800 kg maximum static load (approx. 0.8 t / 1,764 lb)
- Telescopic lift range: 550-900 mm (approx. 21.65-35.43 in)
- 60 x 60 mm outer square tube (approx. 2.36 x 2.36 in)
- Side-wind handle for controlled raising and lowering
- Fast-action winding for quicker height adjustment
- Grease nipple provided for gear lubrication
- Red powder-coated finish; coating can be removed for welding
- Dimensions quoted exclude handle length
- Suited to heavy-duty trailer support, stabilising and levelling
Typical Applications:
Fitted to trailer drawbars, chassis rails or mounting brackets on plant, construction, utility and general-purpose trailers to support the front or side of the trailer during coupling, loading, unloading and routine maintenance. Suitable for use on transporters, flatbeds, equipment and site trailers where a robust height-adjustable landing leg or support jack is required.
Also known as:
Drop Leg Trailer Jack
Landing Leg
Telescopic Support Jack
Side-Wind Trailer Jack
Maypole part number MP978
Product Specifications
| L&S Part No. | 763 928 |
|---|---|
| Part Type | Genuine Part |
| Key Features | - 800 kg maximum static load capacity - Telescopic lift range from 550 mm to 900 mm - 60 x 60 mm outer square tube - Side-wind handle for controlled operation - Grease nipple for gear lubrication |
