Description
Overview:

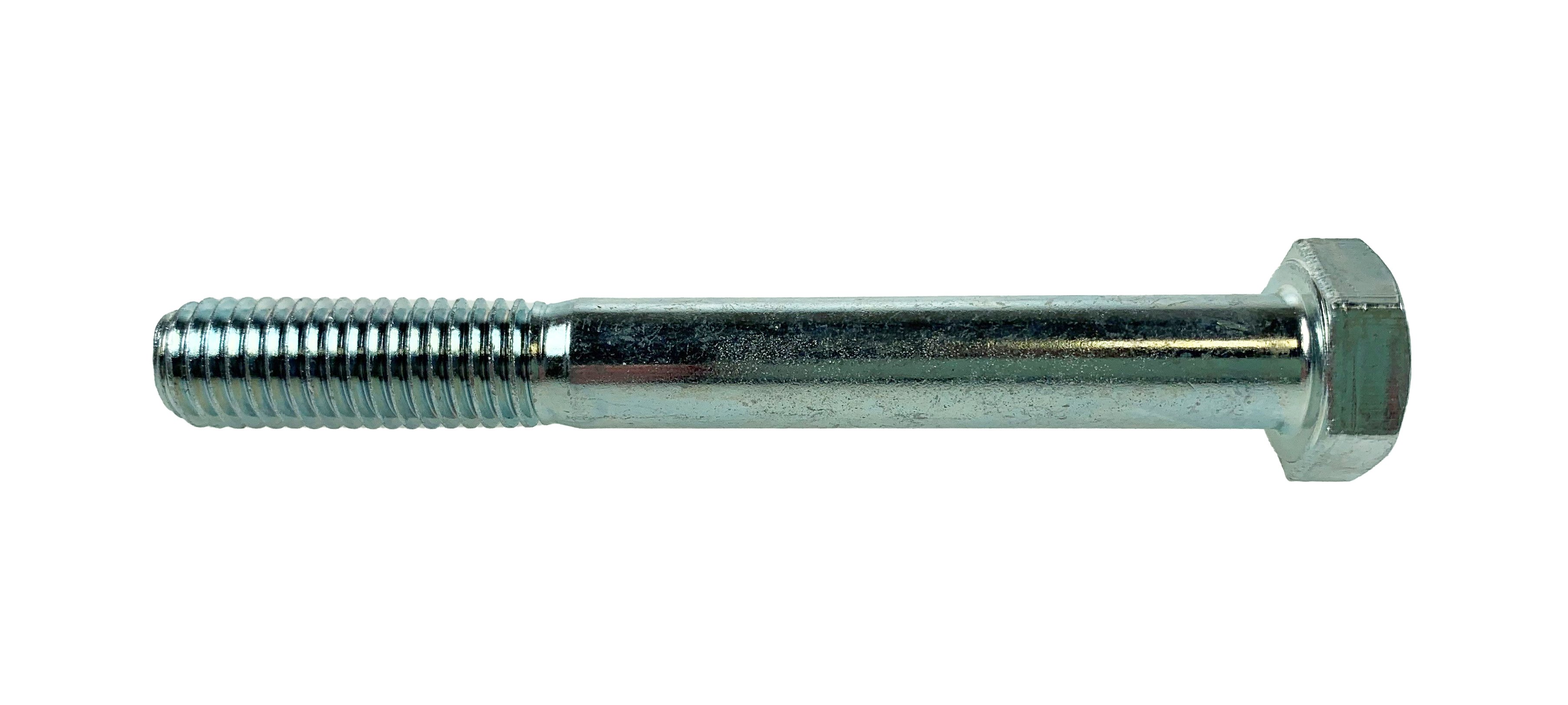

Leaf Spring Bolt M12 x 80mm Thread Length, Grade 10.9 (MPN 763 050) is a high‐tensile fixing for mounting and retaining trailer leaf springs and associated brackets. It uses an M12 metric thread (12 mm diameter, approx. 0.47 in) with a thread length of 80 mm (approx. 3.15 in), making it suitable wherever an M12 x 80 fastener is specified on suspension joints. The 10.9 material grade provides high clamping force and durability under repeated dynamic loads typical of towing, site work and plant transport. This bolt is commonly used on single and double leaf spring arrangements on Ifor Williams trailers, and it is also found on some trailer coupling heads that require an M12 x 80 fixing. Intended as a like‐for‐like replacement during service and repair, it supports reliable alignment and securement of spring eyes, shackles and related hardware. Always match the original dimensions and strength grade, and tighten to the trailer manufacturer's recommended torque.
Key Features:
- M12 metric thread (12 mm / approx. 0.47 in)
- 80 mm thread length (approx. 3.15 in)
- High‐tensile material grade 10.9 for heavy‐duty applications
- Suitable for single and double leaf springs on Ifor Williams trailers
- Also used on some trailer coupling heads requiring M12 x 80 hardware
- Trade-quality replacement fastener for suspension service and repair
Typical Applications:
Used at the spring eye or shackle plate on beam‐axle trailer suspensions, securing the leaf spring to hangers or brackets. Common on Ifor Williams trailers with single or double leaf spring setups. Also applicable to certain trailer coupling heads that specify an M12 x 80 bolt. Suitable for general road trailers, plant and equipment trailers, and other towing configurations where an M12 x 80, grade 10.9 bolt is required. Verify dimensions and torque specifications against the original hardware before installation.
Also known as:
- Maypole part number MP10308B
- Leaf Spring Shackle Bolt
- Spring Eye Bolt M12 x 80
- Trailer Suspension Bolt M12 x 80
Product Specifications
| L&S Part No. | 763 050 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
