Description
Overview:

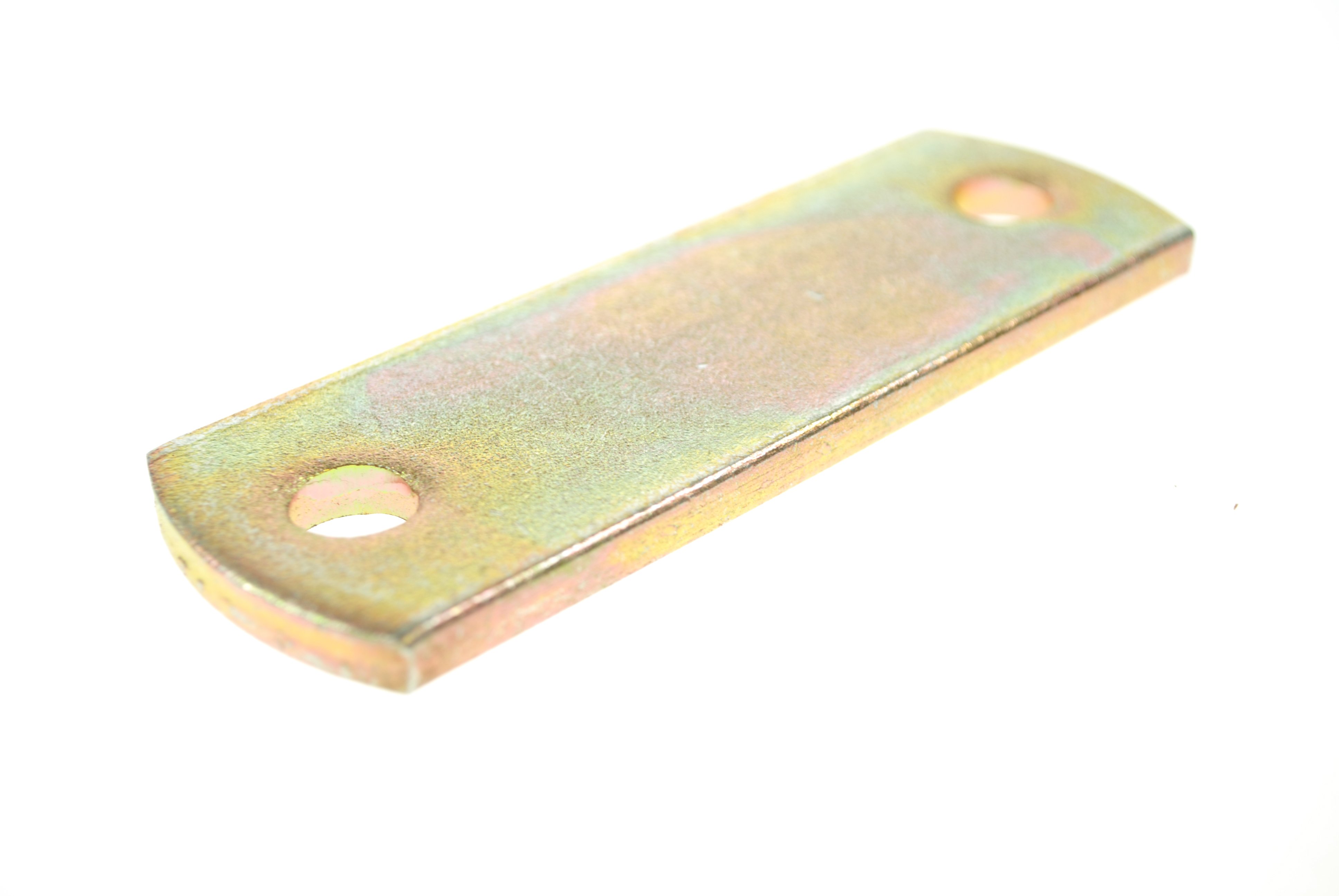

U-Bolt Clamp Plate (MPN 763 131) for use with standard U-bolts on trailers, plant and general transport equipment. This is a flat metal backing plate with two fixing holes set at 80 mm (3.15 in) centre-to-centre, designed to work with the legs of a matching U-bolt to provide a firm, even clamping surface. The plate helps distribute load and reduce localised crush on chassis members, drawbars, crossmembers and brackets when tightening the U-bolt. With a 6 mm (0.24 in, approx. 1/4 in) thickness, it offers a solid bearing face suitable for routine trailer and body fitting tasks. Common uses include securing brackets, guards, conduit, lashing eyes and other hardware to box section or round tube where a U-bolt is preferred. Supplied as a single plate for integration into new builds, refits and maintenance jobs across commercial trailers, utility trailers, light plant carriers and similar applications.
Key Features:
- 80 mm (3.15 in) centre-to-centre fixing hole spacing
- 6 mm (0.24 in, approx. 1/4 in) plate thickness
- Two-hole flat plate for use with matching U-bolts
- Helps spread clamp load across the mounting surface
- Suitable for trailer, towing and general fabrication tasks
- Pre-drilled twin holes for consistent alignment
- Compatible with U-bolts with 80 mm leg spacing
- Simple, robust form factor for dependable installations
Typical Applications:
Used wherever a U-bolt is passed over or around a component and tightened to a chassis or frame, such as mounting brackets to trailer drawbars, attaching hardware to box-section crossmembers, or clamping tube, poles or plates on utility and plant trailers. Suitable for day-to-day trailer bodywork, light fabrication, outfitting and maintenance where a backing plate is required to complete a U-bolt assembly and distribute clamping force.
Also known as:
U-bolt backing plate
U-bolt clamp plate 80 mm centres
U-bolt mounting plate
Saddle plate
Maypole part number MP921B
Product Specifications
| L&S Part No. | 763 131 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - 80 mm centre-to-centre fixing hole spacing - 6 mm plate thickness for solid bearing - Compatible with U-bolts with 80 mm leg spacing - Distributes load to reduce localised crush - Suitable for trailer and general fabrication tasks |
