Description
Overview:

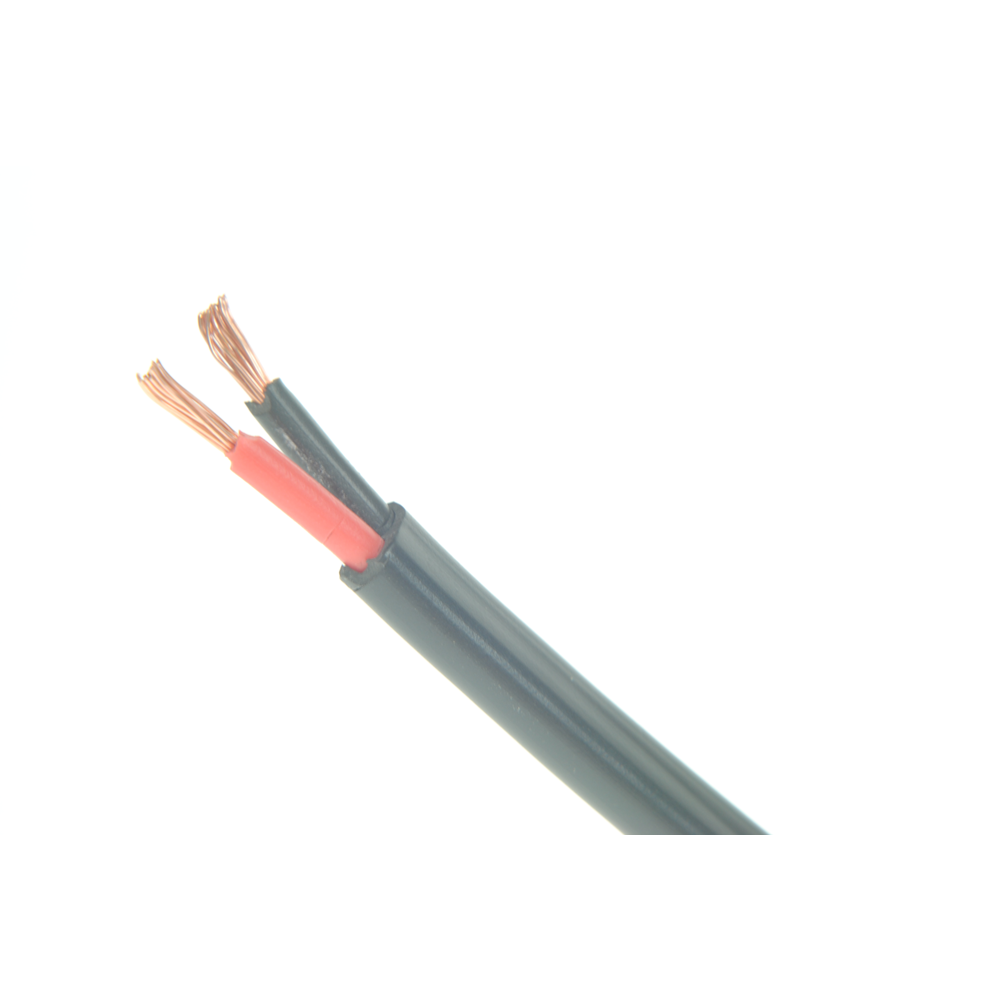

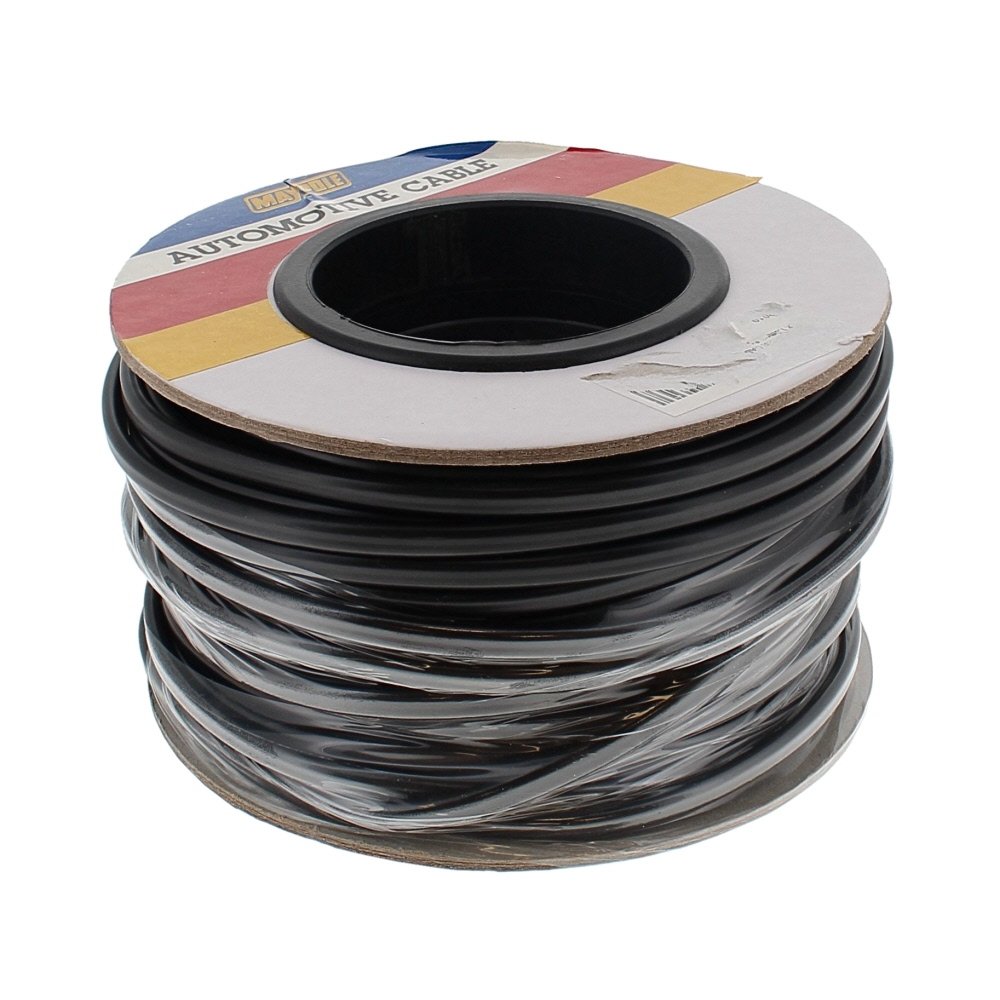

This twin core flat trailer cable (MPN 761 514) is supplied on a 30 m reel for general automotive and trailer wiring tasks. Each core has a 1.0 mm2 cross-sectional area with durable PVC insulation that offers good resistance to abrasion and cut-through during installation and service. The two cores are colour coded red and black for straightforward polarity identification, and the flat profile lays neatly under trims, inside conduits and along chassis members. It is suitable for low-voltage 12 V and 24 V lighting and auxiliary circuits on trailers, caravans, plant transporters and light commercial vehicles. The 30 m (approx. 98 ft) roll suits workshops and fleet maintenance where consistent cable sizing is needed across multiple jobs. Select cable size to suit circuit length and allowable voltage drop; refer to guidance in BS 7671:2018 and BS 6862 Part 1.
Key Features:
- Twin core flat cable, 2 x 1.0 mm2 CSA
- 30 m cable reel (approx. 98 ft)
- PVC insulated for good abrasion and cut-through resistance
- Core colours: red and black for polarity identification
- Flat profile for neat routing in confined runs and under trims
- Suitable for 12 V and 24 V automotive and trailer systems
- Cable selection should consider voltage drop per BS 7671:2018 and BS 6862-1
- Category: Automotive & Trailer Cable
Typical Applications:
Used for trailer and vehicle lighting circuits (tail, stop, indicator, side/marker), number plate and interior lights, and general low-current auxiliary feeds on trailers, caravans, plant and equipment transporters, and light commercial vehicles. Ideal where a paired supply/return is required with clear red/black identification. When sizing, include the full return path length in voltage drop calculations.
Also known as:
2 Core Flat Automotive Cable
Twin Flat Trailer Cable 1.0 mm2
2 x 1.0 mm2 Red/Black Flat Cable
Twin Flex 1.0 mm2
Maypole part number MP313
Product Specifications
| L&S Part No. | 761 514 |
|---|---|
| Unit of Sale | 1 |
