Description
Overview:

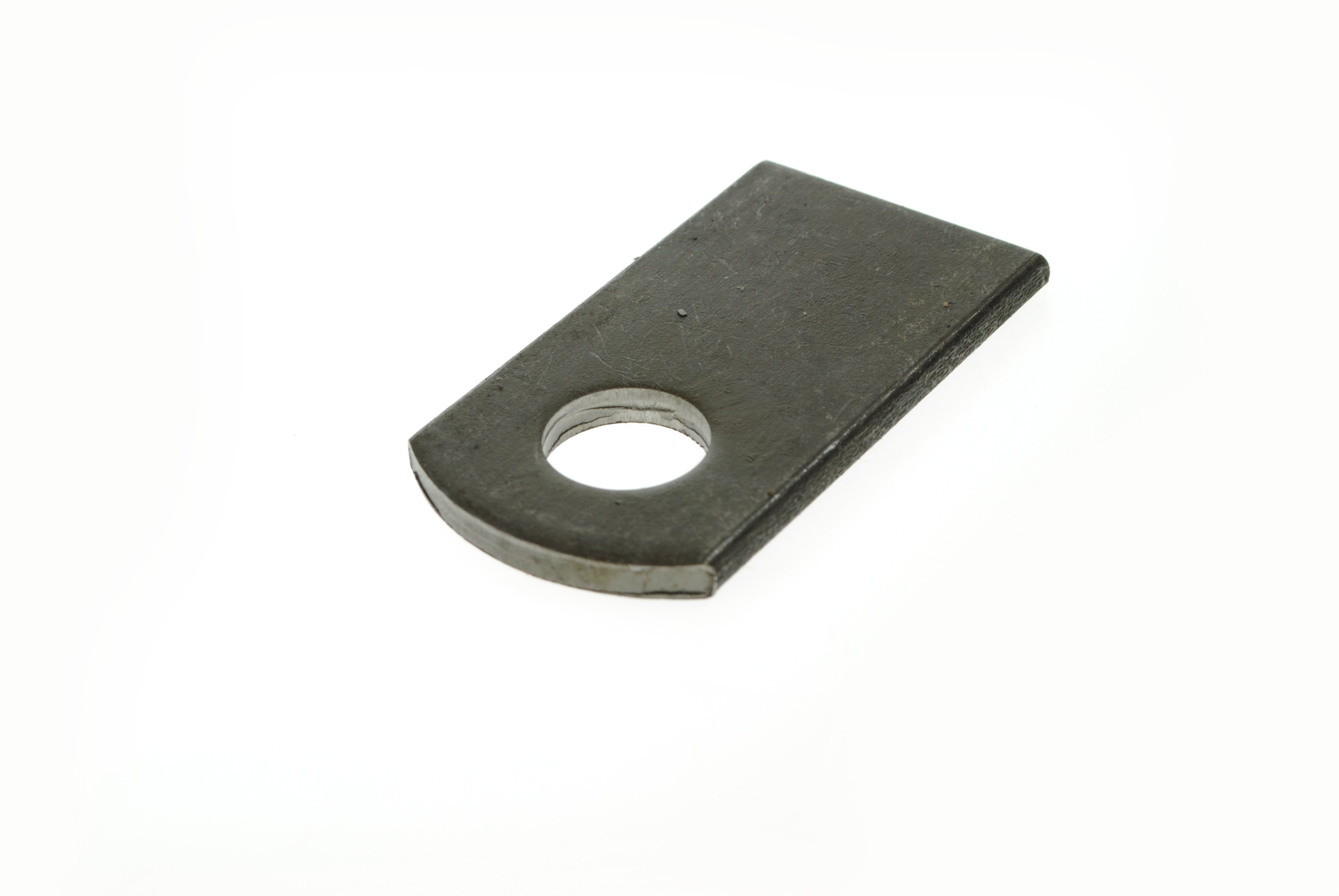

This drop catch plate with rounded end (MPN 763 109) is a self colour, weld-on keeper plate used with drop catches to secure doors, tailgates and dropsides on trailers and commercial bodies. Supplied in raw self colour ready for welding and finishing on the body frame or post, it provides a robust landing point for the catch pin. The plate measures 92 x 50 mm with a 22 mm clearance hole and approximately 6 mm plate thickness, equivalent to 3.62 x 1.97 in with a 0.87 in hole and 0.24 in thickness. The rounded end helps guide the pin into position. Commonly used across general purpose trailers, plant transporters and utility bodies where a simple, durable latch solution is needed. Compatible with Maypole MP838 drop catch. Suitable for fabrication and repair work where a straightforward keeper is required.
Key Features:
- Drop catch keeper plate with rounded end
- Self colour finish suitable for welding and painting after fitment
- Dimensions: 92 x 50 mm (3.62 x 1.97 in)
- Clearance hole: 22 mm diameter (0.87 in)
- Plate thickness: 6 mm (0.24 in)
- Weld-on installation for bodywork and frame posts
- Suitable for use with Maypole MP838 drop catch
- Drawing dimensions: A=92 mm, B=50 mm, Ø=22 mm, D=6 mm
Typical Applications:
Used as the keeper for a drop catch on trailer tailgates, dropsides and doors, and on plant transport bodies and utility trailers. Installed to the body or post to receive the pin from a drop catch; suits Maypole MP838 assemblies on general-purpose trailers and similar bodywork.
Also known as:
Keeper Plate
Drop Latch Plate
Drop Bolt Catch Plate
Weld-On Catch Plate
Maypole part number MP840B
Product Specifications
| L&S Part No. | 763 109 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Weld-on keeper plate for drop catches - Dimensions: 92 x 50 mm, 6 mm thick - 22 mm clearance hole for catch pin - Compatible with Maypole MP838 drop catch - Self colour finish for welding and painting |
