Description
Overview:

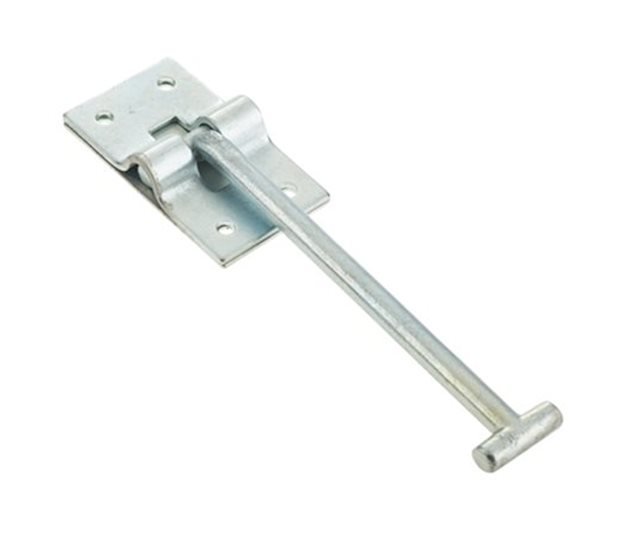

This T-Bar Door Retainer (MPN 800 1045) is a robust hold-open device for external doors on commercial bodies and site units. It combines a pressed mild steel body with a malleable iron T-bar measuring 105 mm (4.13") and is finished in zinc plating for a clean, uniform surface. The retainer secures doors in the open position to aid loading, unloading and access, helping to prevent movement in wind or on uneven ground. The backplate is 78 mm (3.07") long by 45 mm (1.77") wide with 5.5 mm (0.22") clearance fixing holes to suit common body hardware fasteners. Intended for use on trucks, trailers, containers and modular buildings, it pairs with a separate catch plate on the body side; it is designed to work with catch plates 0553/001 and 0554/001. Supplied as the T-bar arm and retainer assembly.
Key Features:
- Pressed mild steel retainer body with malleable iron T-bar
- Zinc plated finish
- T-bar length: 105 mm (4.13")
- Backplate dimensions: 78 mm (3.07") length x 45 mm (1.77") width
- Fixing holes: Ø5.5 mm (0.22") clearance
- Works with matching catch plates 0553/001 and 0554/001
- For commercial bodies and site equipment
Typical Applications:
Used to hold doors open on trucks and trailers, container doors and site or modular building access doors. Commonly fitted to rear or side doors where a positive hold-open is required during loading, unloading or servicing.
Also known as:
Door stay, door hold-back, T-bar door stay, truck door retainer, container door retainer, bar retainer, door hold-open catch
Product Specifications
| L&S Part No. | 800 1045 |
|---|---|
| Unit of Sale | 1 |
