Description
Overview:

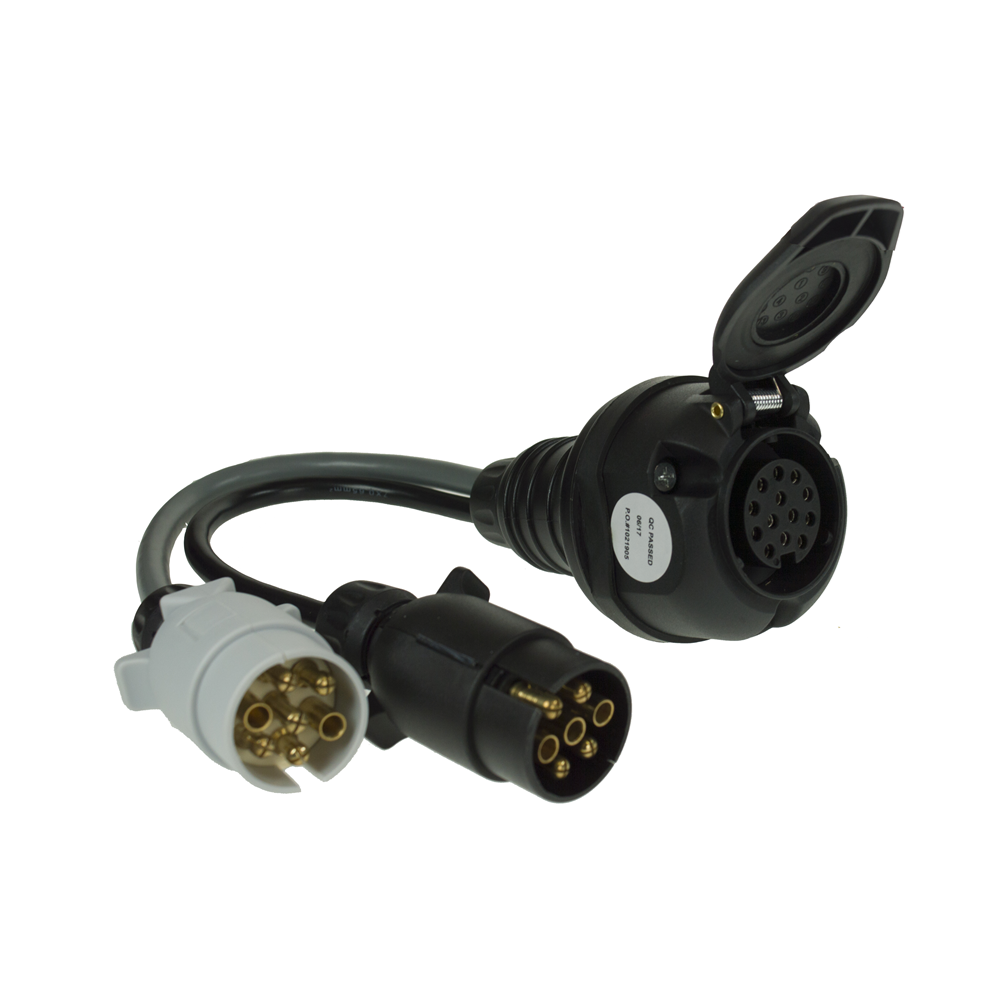

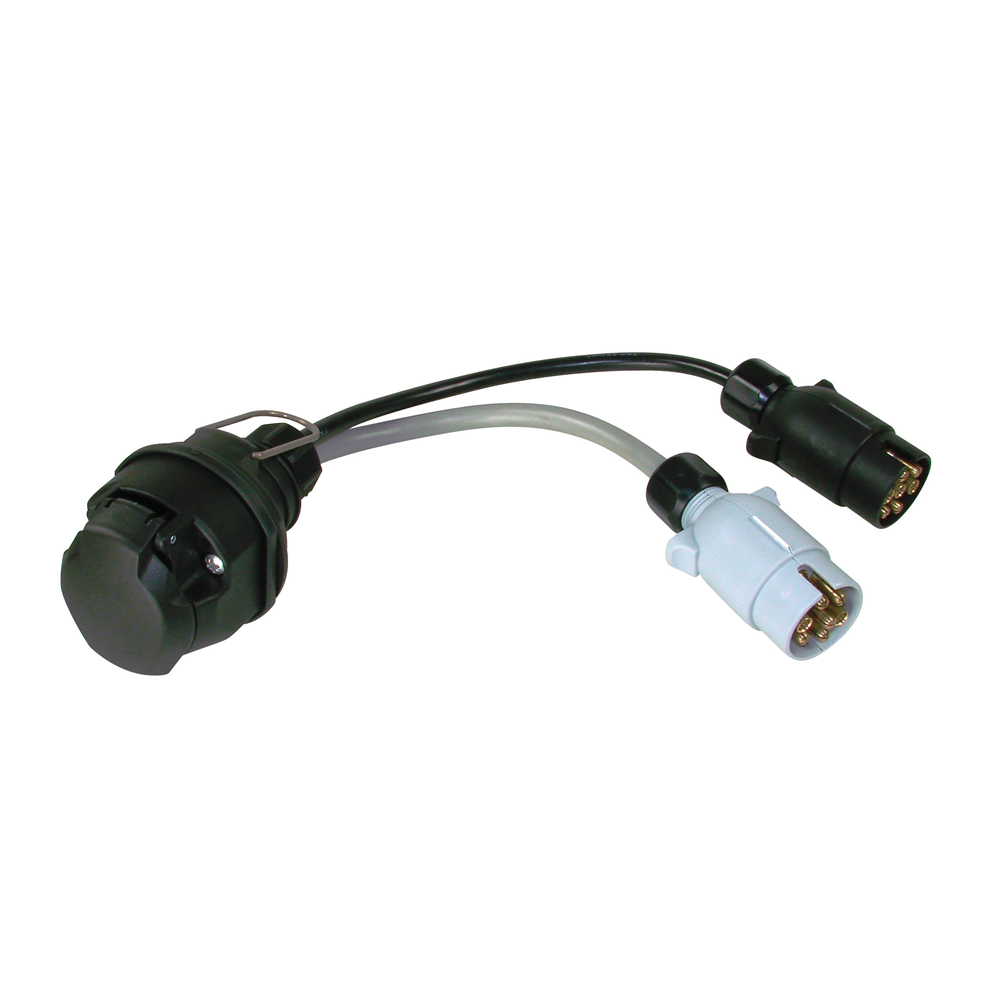

This trailer electrics adaptor lead (MPN 761 322) links a vehicle fitted with twin 7‐pin sockets (12N and 12S) to a trailer or caravan that uses a 13‐pin plug. It is a wired adaptor assembly with two 7‐pin plugs on the vehicle side and a single 13‐pin socket on the trailer side, allowing straightforward connection without altering the vehicle loom. The plug contacts are brass for reliable conductivity, while the 13‐pin socket contacts are nickel plated for durability and corrosion resistance. The overall lead length is 450 mm (approximately 17.7 in), giving enough reach between the vehicle's sockets and the caravan's 13‐pin plug. Manufactured using specified multi-core cable for lighting and auxiliary circuits, this adaptor supports full road lighting and caravan power supplies. Supplied in display packaging for easy identification and storage when not in use.
Key Features:
- Converts twin 7‐pin 12N & 12S vehicle sockets to a single 13‐pin trailer/caravan connection
- Wired adaptor assembly with 2 x 7‐pin plugs and 1 x 13‐pin socket
- Plug pins in brass; 13‐pin socket pins nickel plated for wear and corrosion resistance
- Overall length: 450 mm (approx. 17.7 in) for flexible hookup
- No rewiring required; quick to fit and remove
- Supports full road lighting and caravan power supplies
- Cable specification: MP325 7×0.65 mm2 and MP3295 1×1.5 mm2 + 4×2.5 mm2 cores
- Robust construction suitable for regular towing use
- Supplied in display packaging for workshop or retail environments
Typical Applications:
Used when a tow vehicle has the traditional twin 7‐pin 12N/12S sockets and the trailer or caravan is equipped with a 13‐pin plug. Common on cars, vans and 4x4s towing modern caravans or European‐spec trailers where both lighting and caravan auxiliary power circuits are required.
Also known as:
Twin 7‐Pin To 13‐Pin Adaptor Lead
12N/12S To 13‐Pin Caravan Converter
7‐Pin To 13‐Pin Towing Electrics Adaptor
13‐Pin Euro Socket Adaptor Lead
Maypole part number MP602
Product Specifications
| L&S Part No. | 761 322 |
|---|---|
| Unit of Sale | 1 |
