Description
Overview:

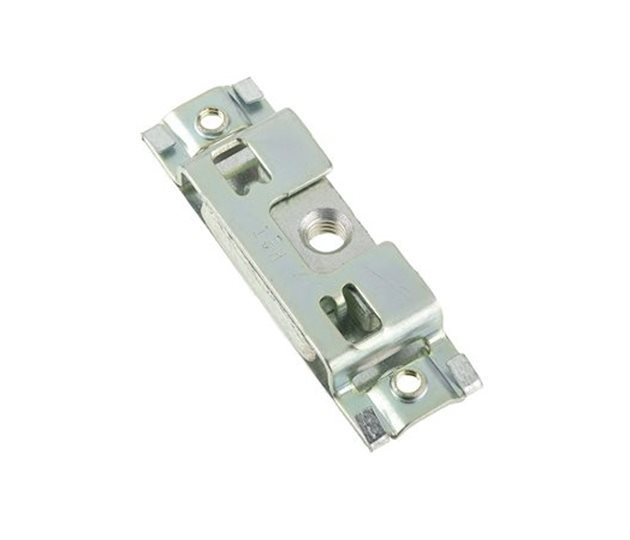

This adjustable caged nut (MPN 800 1381) is a mild steel assembly with a zinc plated, clear chromate finish for use in latch and striker installations. It is designed to receive a striker bolt with a 3/8-16 UNC thread, providing positional adjustment to achieve correct latch engagement and seal compression on doors and access panels. The unit mounts using 1/4-20 UNC-2B fixings, making it suitable for integration into bodywork and frame structures. With an overall length of 91 mm (3.58 in), width of 28 mm (1.10 in) and thickness of 13 mm (0.51 in), it fits typical commercial vehicle applications without excess bulk. Used widely on trucks, trailers, buses, horseboxes, gensets and cabs, it is a practical choice where a durable, adjustable striker nut is required.
Key Features:
- Adjustable caged nut for door and latch striker systems
- Accepts 3/8-16 UNC striker bolt (approx. 9.5 mm major diameter)
- Mounting fixings: 1/4-20 UNC-2B female (approx. 6.35 mm major diameter)
- Mild steel construction for strength and reliability
- Zinc plated with clear chromate passivation for corrosion resistance
- Overall length: 91 mm (3.58 in)
- Width: 28 mm (1.10 in)
- Thickness: 13 mm (0.51 in)
- Compatible with TriMark striker hardware and other systems using the same threads
- Suitable for heavy-duty vehicle and equipment bodywork
Typical Applications:
Used on commercial vehicle doors, lockers and access panels across trucks, trailers and buses; on horseboxes and cabs; and on generator sets and similar enclosures where an adjustable striker nut is required to align latching hardware.
Also known as:
Adjustable cage nut, caged striker nut, adjustable striker nut, captive caged nut, door striker cage nut
Product Specifications
| L&S Part No. | 800 1381 |
|---|---|
| Unit of Sale | 1 |
