Description
Overview:

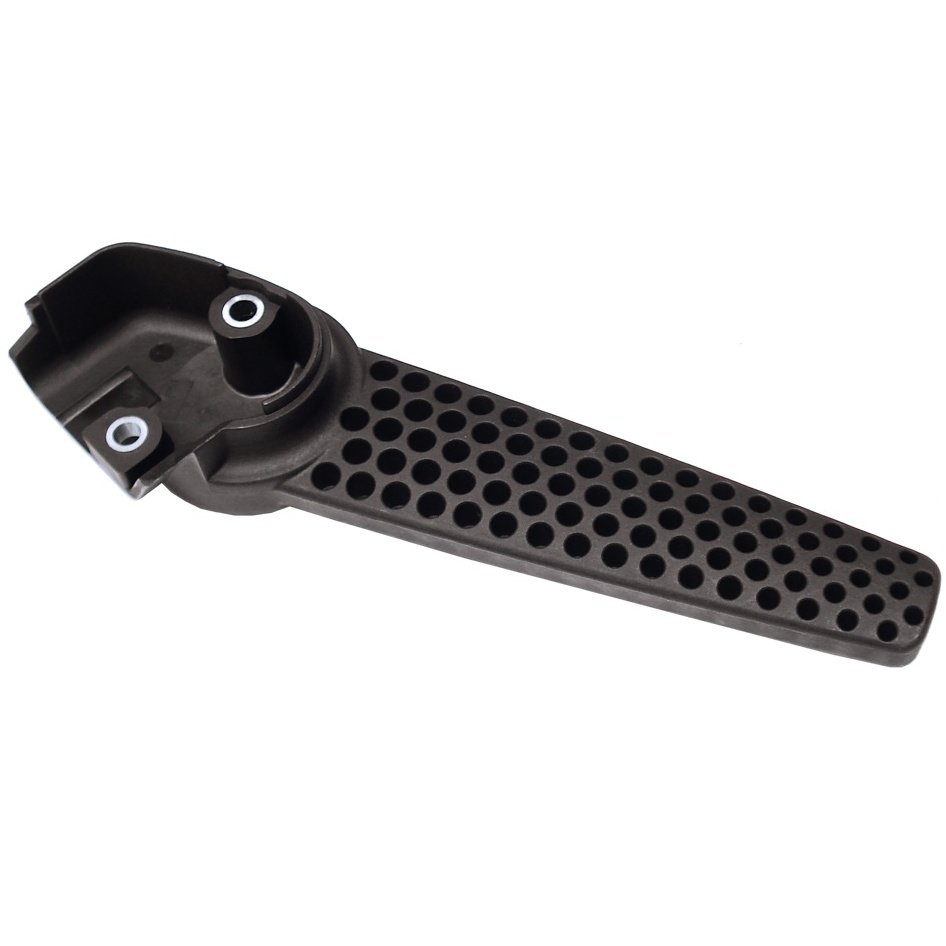

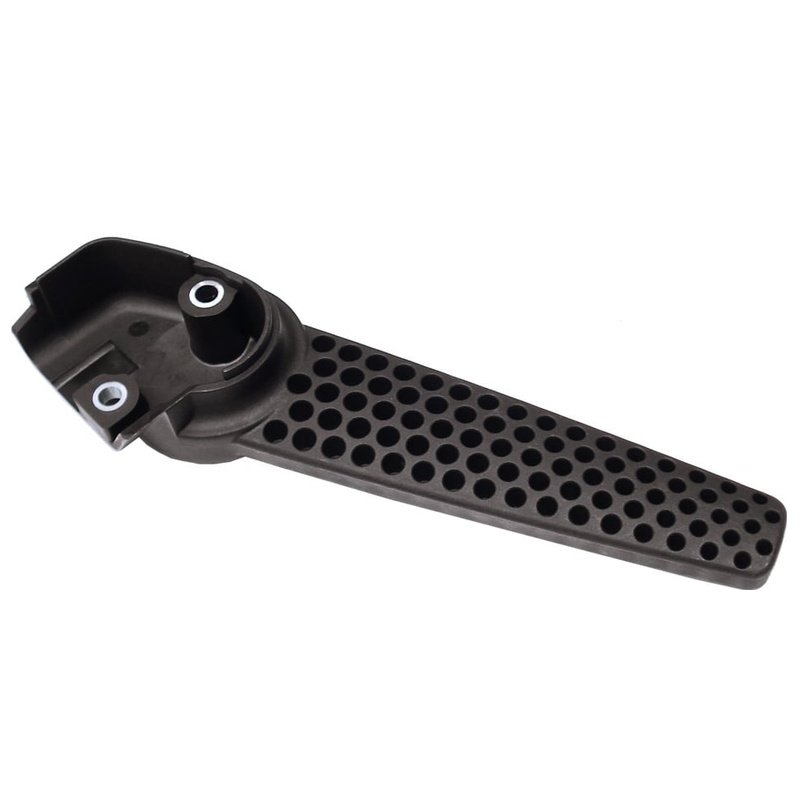

This adjusting lever is a Genuine Stihl part for long‐reach hedge trimmers and Kombi attachments, including HL100 and HL100K. Identified by MPN 4230 643 3502, it forms part of the head adjustment mechanism, allowing precise setting and secure locking of the cutting angle. The lever features a robust metal body with a hard‐wearing polymer control wheel for reliable handling and long service life. It is designed to fit and function exactly like the original component, helping to restore crisp adjustment and dependable operation on compatible Stihl machines used by landscapers, grounds teams, and home users. Suitable for routine maintenance or a like‐for‐like replacement when the original lever shows wear, damage, or reduced engagement.
Key Features:
- Genuine Stihl OEM component (MPN 4230 643 3502) for correct fit and performance
- Durable metal lever with tough polymer control wheel for long‐lasting use
- Enables precise adjustment and positive locking of the cutter head angle
- Smooth, predictable action for accurate setup in the field or workshop
- Direct replacement that fits using the machine's existing hardware
- Helps restore secure engagement and reduce play in worn mechanisms
- Suitable for professional and domestic maintenance tasks across multiple models
Typical Applications:
Replacement of a worn, stiff, or damaged adjustment lever on Stihl long‐reach hedge trimmers and Kombi tools. Useful during routine servicing to maintain reliable head angle adjustment for trimming hedges, topiary, and difficult‐to‐reach growth in gardens, estates, parks, and commercial sites.
Also known as:
Adjustment lever, control lever, angle adjuster, angle lock lever, head adjustment handle, detent lever.
Fits Models:
FH-KM, FH-KM 135 deg, FH-KM135deg, FH75, FHKM, HEL 700, HEL 700 K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0-135 deg, HL-KM0-135deg, HL100, HL100K, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM
Alternate Part Numbers:
4230-643-3502, 42306433502
Product Specifications
| L&S Part No. | 4230 643 3502 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 42306433502 |
| Unit of Sale | 1 |
| Applications | FH-KM, FH-KM 135 deg, FH-KM135deg, FH75, FHKM, HEL 700, HEL 700 K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0-135 deg, HL-KM0-135deg, HL100, HL100K, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM |
| Machine Type | Hedgetrimmers |
| Fits Models | FH-KM 135 deg | HL-KM 0-135 deg | HL75, HL75K | HL90K, HL90, HL95K | HL100, HL100K | HEL 700 K | HEL 700 | HL 95, HL 95 K | HLE 71, HLE 71 K | FH 135° | HL 135° |
