Description
Overview:

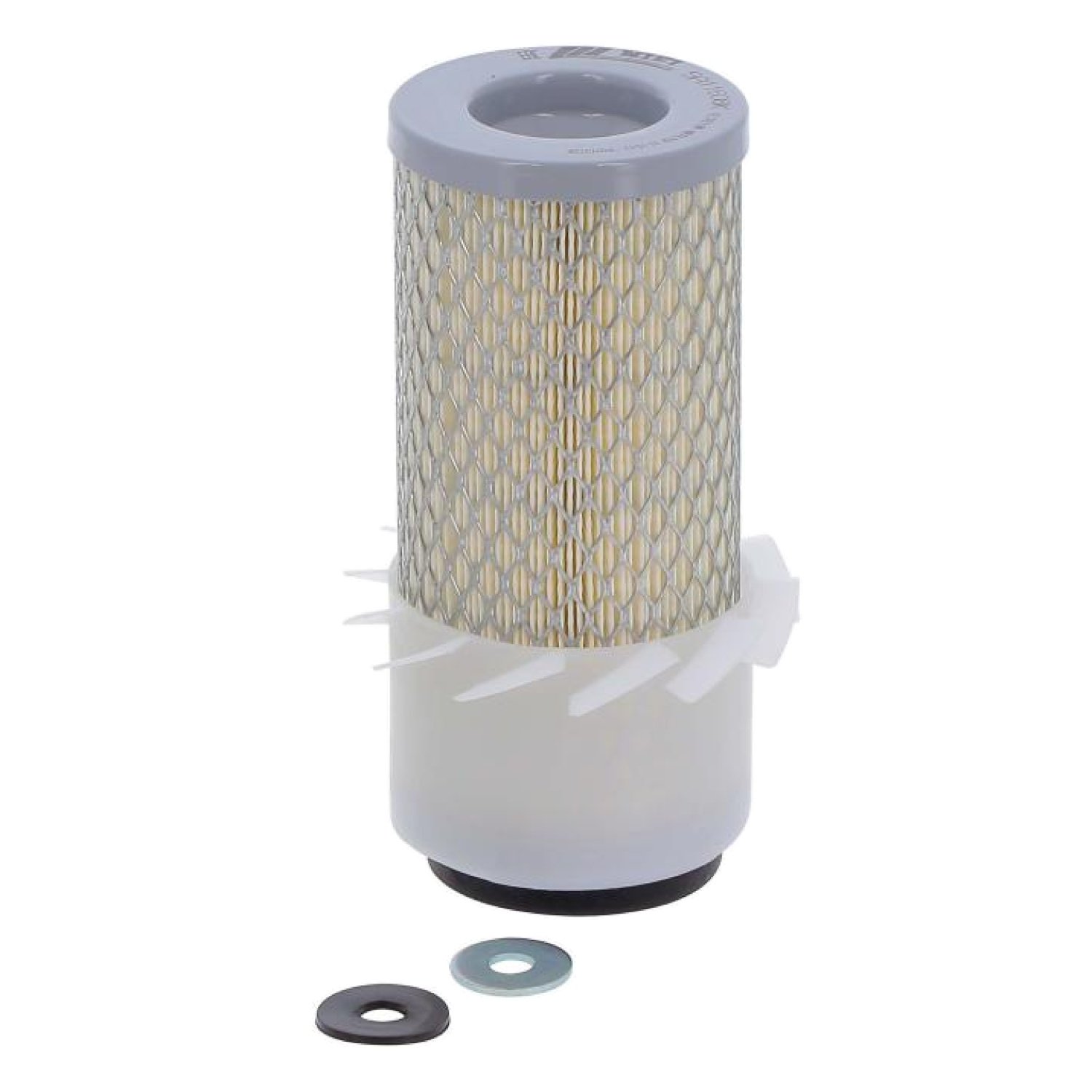

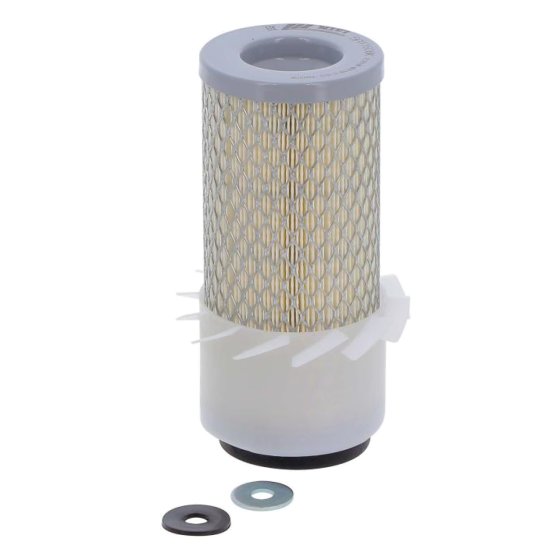

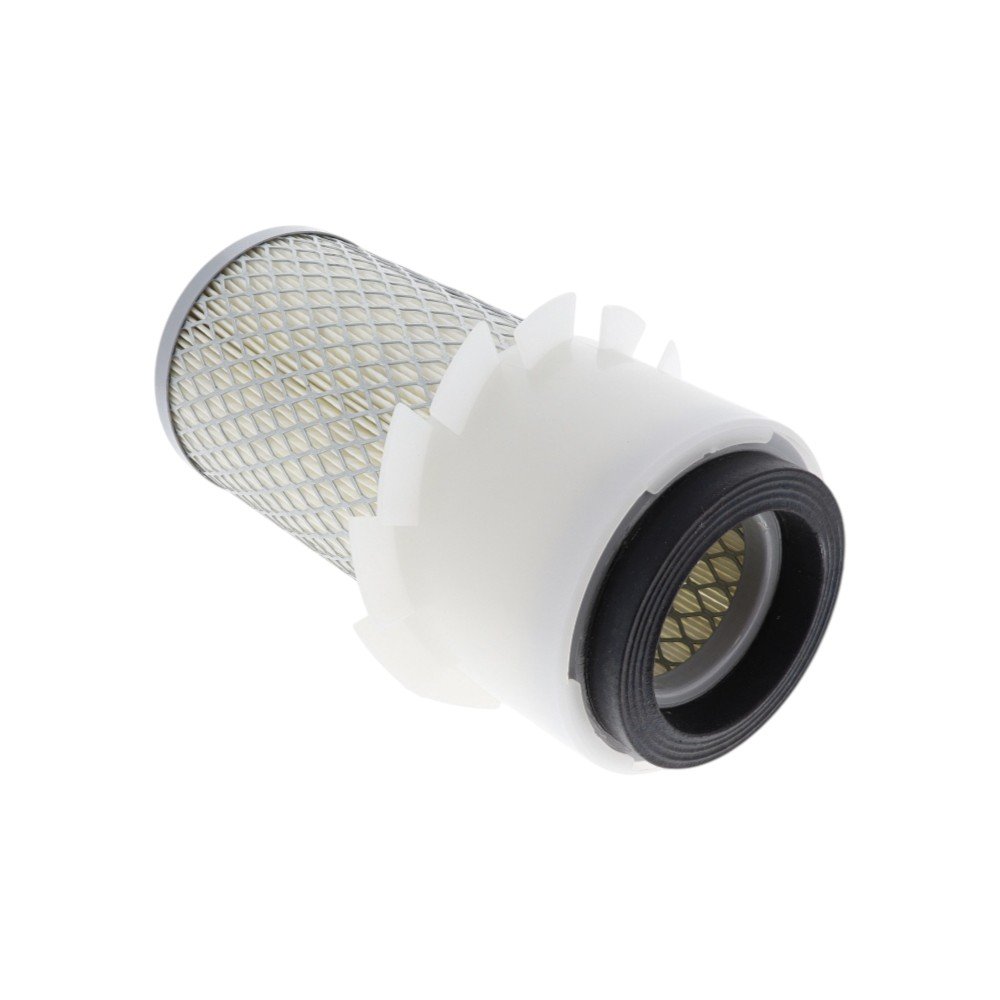

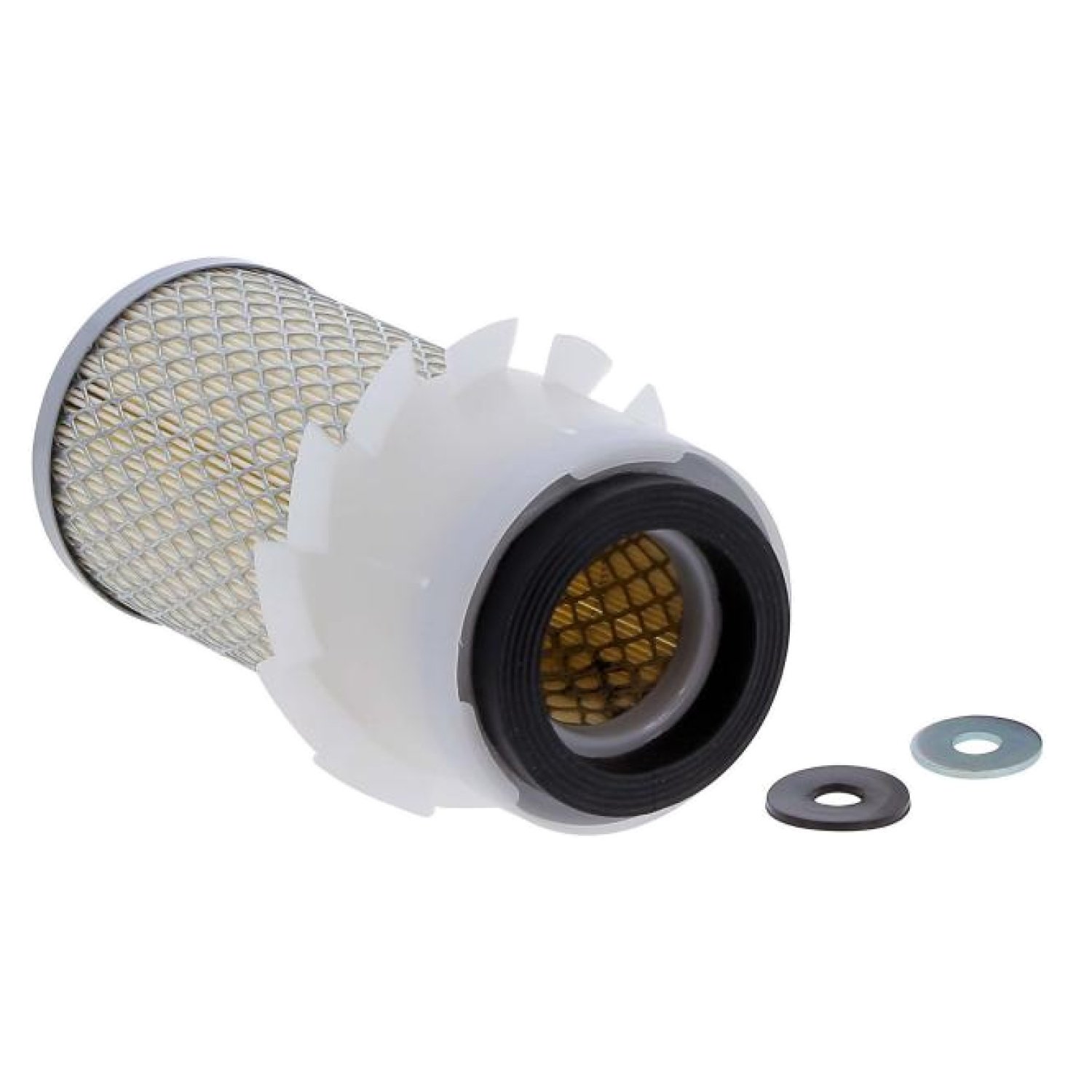

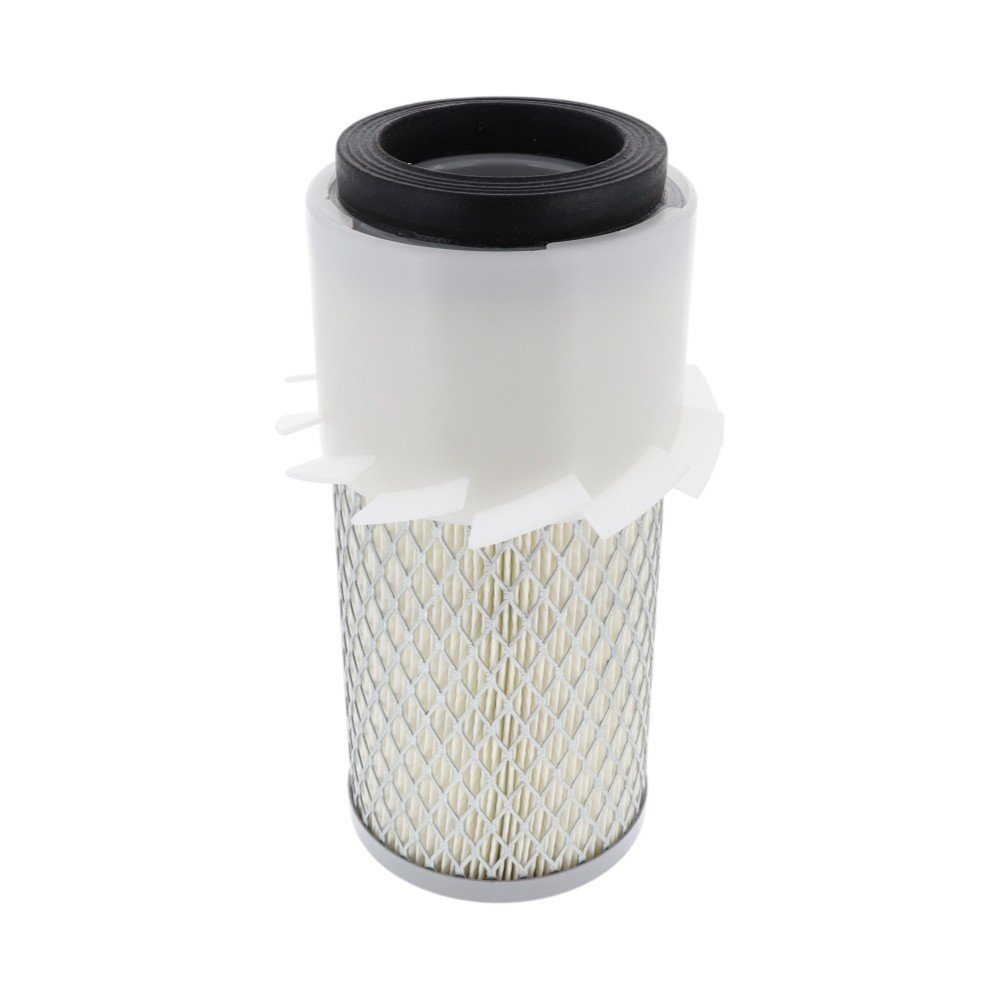

The Air Filter with Fins is a non-genuine replacement element for machines using the Yanmar Z430-K1 engine, including KC80D and EC14 variants. It uses pleated filter media with a finned outer profile to maximise surface area and airflow while trapping harmful dust and debris before it reaches the engine. The sturdy design suits daily use in construction and agricultural environments. Sized for a direct swap where Yanmar 121465-12510 is specified, it helps maintain reliable combustion, protect piston rings and turbo components, and support fuel efficiency. Dimensions are Height 184 mm x Width 83 mm. Supplied as MPN A1027, it is a practical service item for routine maintenance schedules and field repairs.
Key Features:
- Finned construction increases surface area and rigidity for stable airflow in dusty conditions
- Efficient particulate capture to protect engines working on sites, farms, and verges
- Durable build for long service life and consistent sealing performance
- Direct replacement for Yanmar 121465-12510 in compatible housings; no modifications needed
- Accurate dimensions (Height 184 mm x Width 83 mm) for an easy, straightforward fit
- Helps maintain engine power, throttle response, and fuel economy by ensuring clean intake air
- Non-genuine, cost-effective alternative while matching OEM form and fit
- Suitable for a wide range of compact construction and agricultural machines
Typical Applications:
Routine servicing of compact dumpers, mini excavators, small tractors, and other plant fitted with the Z430-K1 engine. Ideal for use on building sites, highways work, landscaping, and farmyards where airborne dust is common. Helps reduce engine wear, extend service intervals, and minimise downtime in hire fleets and owner-operated machines.
Also known as:
Engine air filter cartridge, primary air element, outer air element, intake air filter, paper air filter, dust filter, engine intake filter.
Fits Models:
EC14, KC80D, X 220, X 316, X 320, X 322, PC 03 2 F, PC 05 1, PC 05 7, PC 07 2, EB 10, EB 12, EB 12 4, EB 14 EB 14 4, EB 16 4, TB 14, TB 15, TB 650 S, TB 800, TZ 25, SIRIUS PLUS, SIRIUS 246, TB 007, TB 015, TB 020, EC 14 Sirius, EC 14 CC, VIO 15, VIO 20, YB 10, X220, X316, X320, X322, PC032F, PC051, PC057, PC072, EB10, EB12, EB124, EB14EB144, EB164, TB14, TB15, TB650S, TB800, TZ25, SIRIUSPLUS, SIRIUS246, TB007, TB015, TB020, EC14SIRIUS, EC14CC, VIO15, VIO20, YB10
Alternate Part Numbers:
CH0411675061440500, YM121465-12510, 17731-41830-71, 92113120115122, S19100.66001.3, 37Z-02A-F932L, TY17102212530, 66U1-6435-P06, 8-97042-317-0, 5-14215-049-0, 37Z0-2A-F932L, YM12146512510, 5.527.655.841, 70000-11221-B, 0189706470111, 5-14215-002-1, 51852-11080-1, 5-14215-002-0, YM17102212530, 1427.101.2840, 1970.0034.000, 5.14215.002.1, 5527-65-5841, 70000-11221-B, 0189706470111
Product Specifications
| L&S Part No. | LA351 |
|---|---|
| OEM No. | A1027 |
| Unit of Sale | 1 |

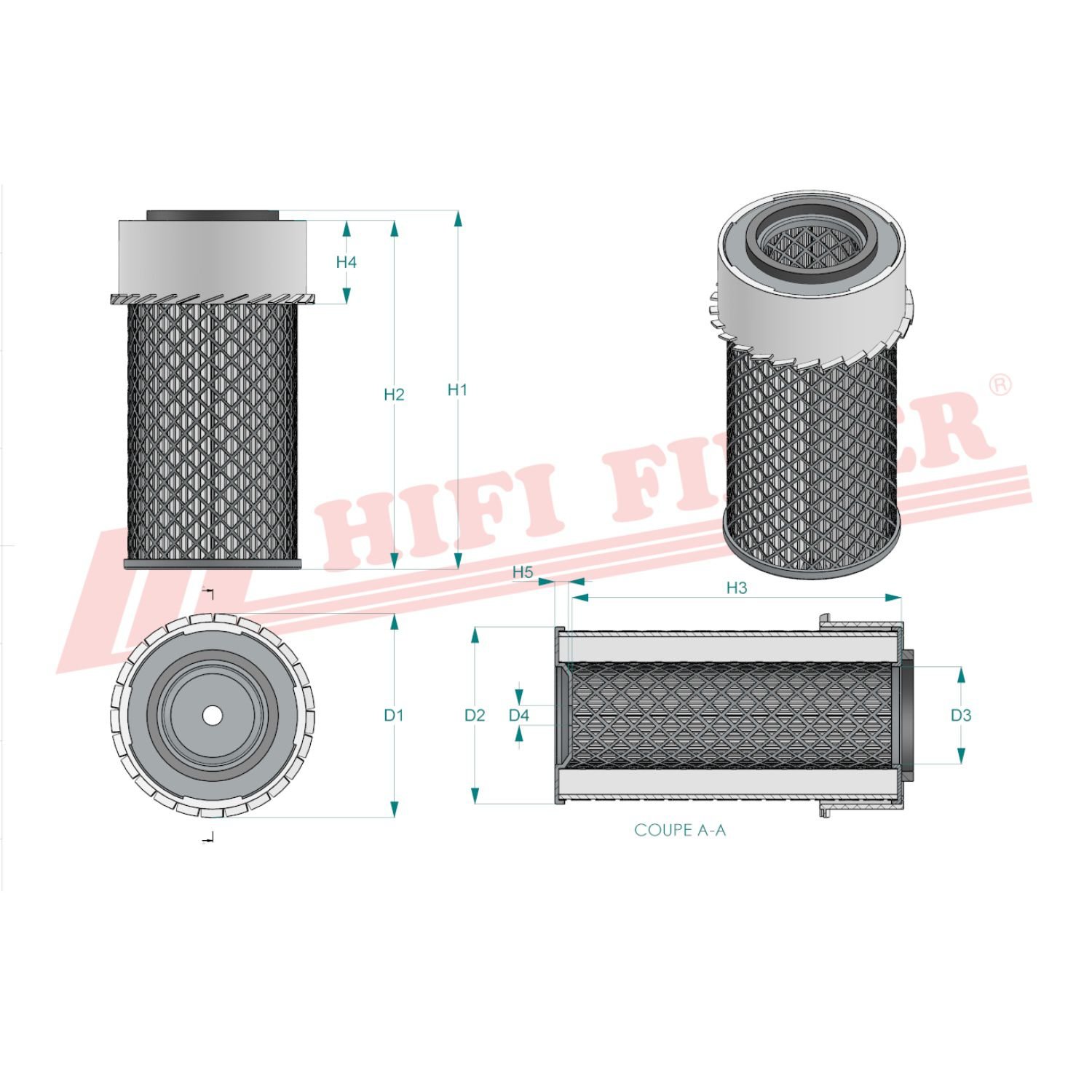

| Size | 184mm x 82mm x 82mm |
| Applications | EC14, KC80D, X 220, X 316, X 320, X 322, PC 03 2 F, PC 05 1, PC 05 7, PC 07 2, EB 10, EB 12, EB 12 4, EB 14 EB 14 4, EB 16 4, TB 14, TB 15, TB 650 S, TB 800, TZ 25, SIRIUS PLUS, SIRIUS 246, TB 007, TB 015, TB 020, EC 14 Sirius, EC 14 CC, VIO 15, VIO 20, YB 10, X220, X316, X320, X322, PC032F, PC051, PC057, PC072, EB10, EB12, EB124, EB14EB144, EB164, TB14, TB15, TB650S, TB800, TZ25, SIRIUSPLUS, SIRIUS246, TB007, TB015, TB020, EC14SIRIUS, EC14CC, VIO15, VIO20, YB10 |
| Machine Type | Excavators |
| Fits Brands | Alco Filters, Bobcat, Bomag, Case, Clark, Crosland, Cuchman, Dynapac, EuroGuard, Fram, Frigiking, Greyfriars, Hymac, Ingersoll Rand, Iseki, Isuzu, John Deere, Komatsu, Kubota, Lister Petter, Mitsubishi, Onan, Pel Job, Ransomes, Schaeff, Schuup, TFS, Takeuchi, Toro, Transicold, U.F.I, Volvo, Wacker Neuson, Yanmar |
| Fits Models | EC14 |
