Description
Overview:

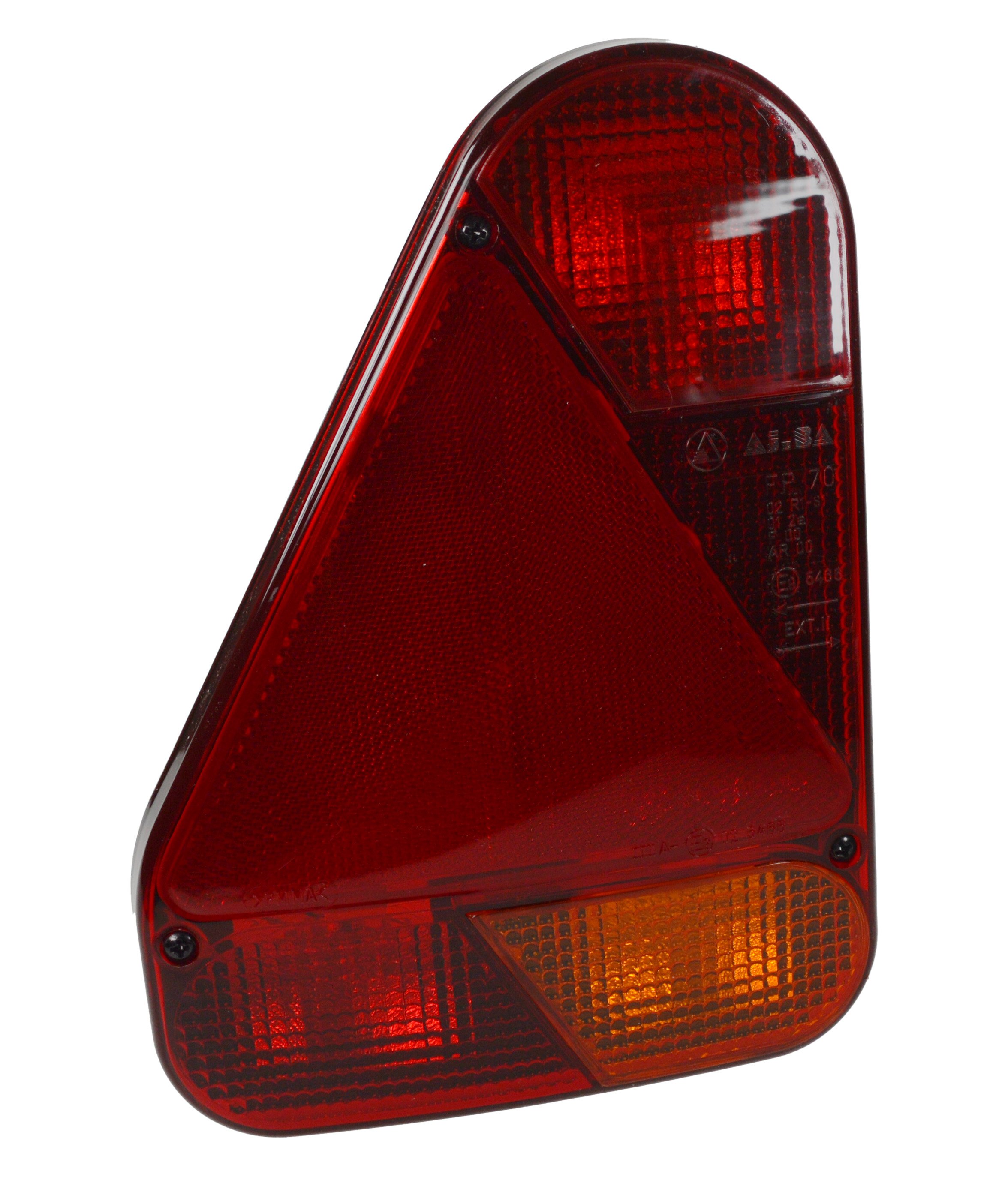

The AJBA vertical rear combination lamp (MPN 763 605) is a left-hand unit for 12V trailer and towed-vehicle lighting systems. It provides five functions in one housing: stop, tail, indicator, rear reflector and rear fog. Designed for vertical mounting on the nearside/left of the vehicle, it uses serviceable bulb technology and is supplied with bulbs installed for quick fitment. Electrical connection is via 5-pin plus 4-pin Radex-pattern connectors, allowing straightforward plug-in to compatible trailer looms. The lamp is E-mark approved for road use and mounts on studs for a secure installation. Typical applications include general-purpose trailers, plant and equipment trailers, car transporters, horseboxes and small agricultural or utility trailers requiring a vertical left-hand rear light cluster with integral fog. A matching spare lens is available under reference MP8208BL.
Key Features:
- Five functions: stop, tail, indicator, reflector and rear fog
- Left-hand (nearside) vertical orientation for rear installation
- 12V bulb-lit design, bulbs included and replaceable
- 5+4 pin Radex-style plug-in connections for quick wiring
- Stud-mount fixings for secure attachment
- E-mark approved for on-road use
- Serviceable construction with replaceable lens and bulbs
- Compatible with trailer looms using Radex-pattern connectors
- Spare lens reference: MP8208BL
Typical Applications:
Used as the left-hand rear light cluster on 12V trailers and towed equipment where a vertical lamp is specified, providing stop/tail/indicator/reflector plus integrated fog. Suitable for plant trailers, general utility trailers, car transporters, horseboxes and similar towing set-ups that utilise Radex-pattern 5+4 connectors.
Also known as:
Left Hand Vertical Trailer Combination Lamp with Fog, AJBA Rear Cluster LH 12V, Vertical Rear Lamp LH with Fog, Maypole part number MP8209BL, Spare lens MP8208BL
Product Specifications
| L&S Part No. | 763 605 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
