Description
Overview:

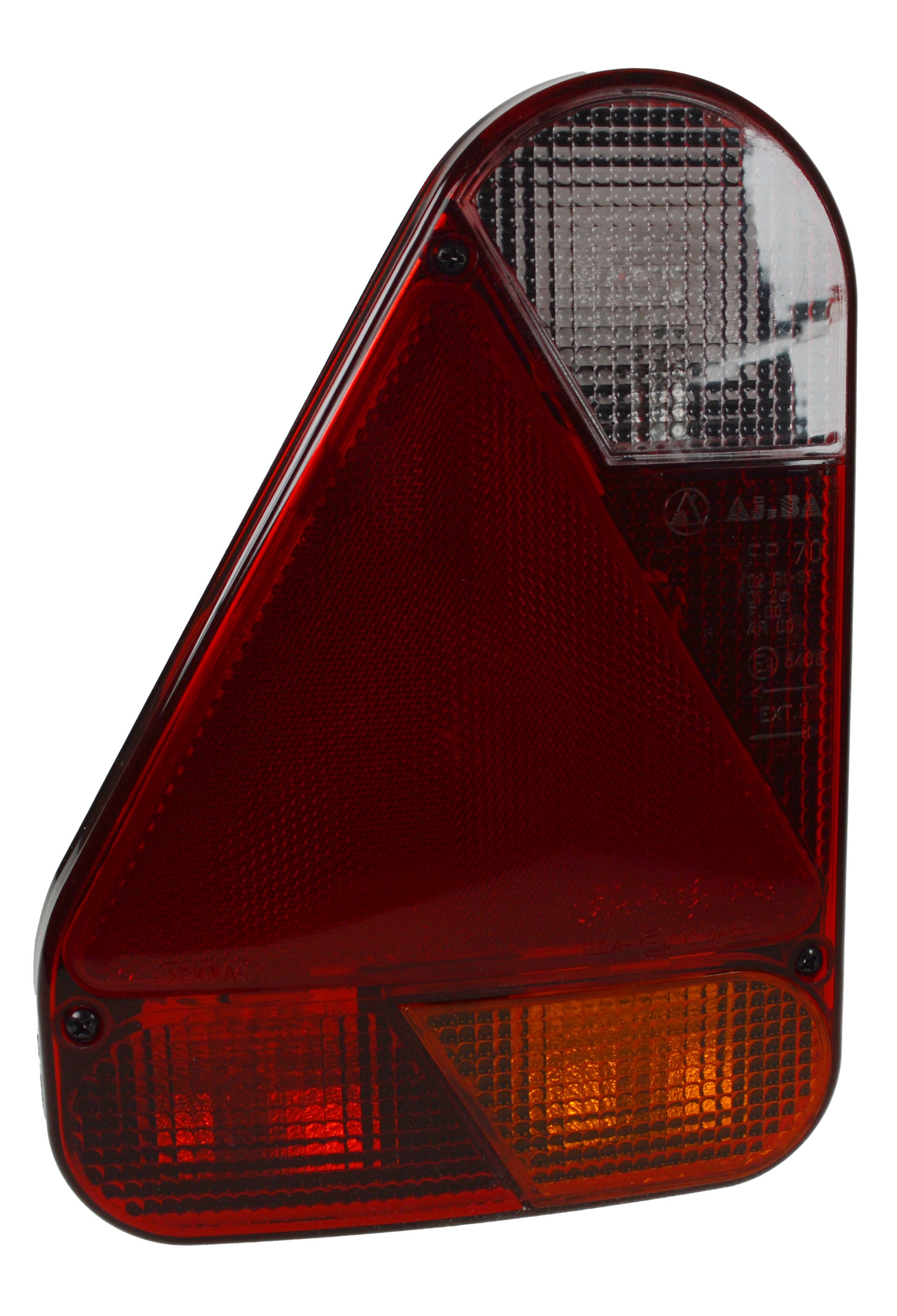

This AJBA 12V Vertical Combination Lamp, Left Hand with Reverse (MPN 763 624) is a bulb-lit rear light unit for trailers and towed equipment that require a vertical format lamp on the nearside. It combines stop, tail, indicator, reverse and rear reflector functions in a single housing to simplify installation and ensure road-legal lighting. The lamp uses a 5+4 pin Radex style plug connection for quick replacement on compatible looms and lighting boards. It is E-mark approved for on-road use and is supplied with bulbs, so it can be fitted and commissioned without additional lamps. Designed for stud mounting to the rear body or lighting panel, this AJBA unit is suited to general-purpose goods trailers, plant and machinery transporters, boat trailers and similar applications where a left-hand vertical lamp with reversing light is specified.
Key Features:
- 5-function rear combination lamp: stop, tail, indicator, reverse and reflector
- 12V bulb type (non-LED), bulbs included
- Left-hand orientation (nearside) for vertical mounting
- 5+4 pin Radex style plug connection for fast changeover
- E-mark approved for road use
- Stud-mount fixing to body or rear light panel
- AJBA pattern vertical housing for trailers and towing set-ups
- Service parts supported: spare lens MP82018BL
- Suited to standard 12V trailer electrical systems
- Durable, replaceable-bulb design for straightforward maintenance
Typical Applications:
Used on the left rear of trailers and towed equipment that use vertical AJBA pattern lamps and a Radex 5+4 pin wiring harness. Typical on plant and equipment transporters, general goods trailers, boat and car transport trailers, agricultural and utility trailers, and lighting boards where a left-hand unit with reversing function is required.
Also known as:
Rear Combination Lamp LH Vertical with Reverse
Trailer Tail Light 12V Left Hand, 5-Function
Radex 5+4 Plug Vertical Left Rear Lamp
Maypole part number MP82019BL
Product Specifications
| L&S Part No. | 763 624 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
