Description
Overview:

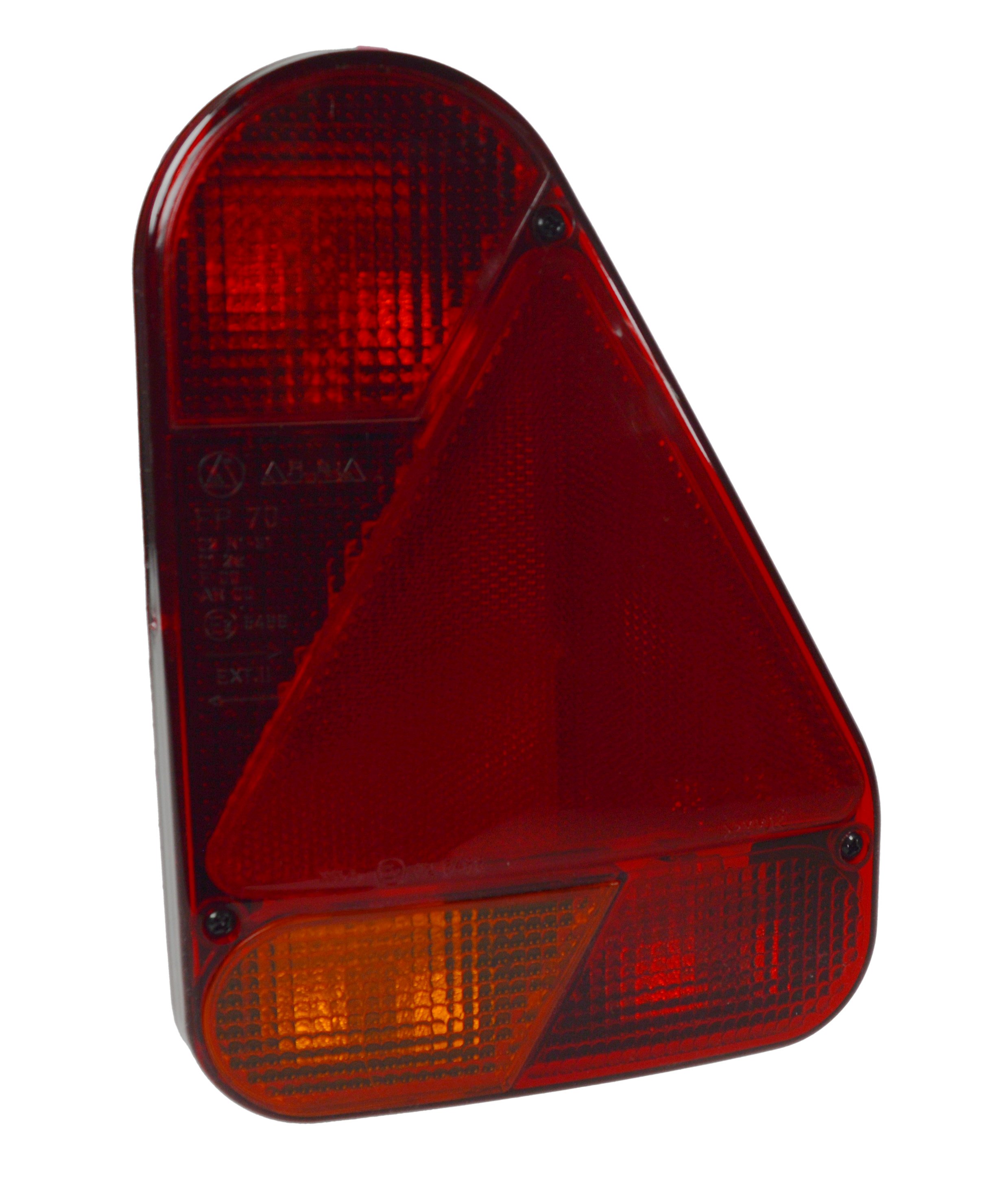

The AJBA Vertical Bulb Combination Lamp 12V Right-Hand With Fog (MPN 763 606) is a rear light cluster for trailers and towed equipment that require a vertical-mounted right-hand unit with an integrated fog function. It provides the core rear lighting functions in one housing: stop, tail, indicator and reflector, plus a right-side fog lamp for road compliance. This model is designed for 12V systems and uses replaceable filament bulbs, supplied fitted. Connection is via a 5+4 pin Radex style plug-in interface to suit common trailer looms and light boards. The lamp is E approved for road use and installs using stud-mount fixings on the rear of the unit. A matching spare lens is available separately if required. Suitable for professional fleets and trade users needing a dependable, serviceable rear cluster on plant and transport trailers.
Key Features:
- 12V bulb combination lamp: stop, tail, indicator, reflector and right-hand fog
- Right-hand orientation for vertical mounting on the rear of the vehicle
- 5+4 pin Radex style plug-in connection for compatible trailer looms
- Bulbs included and replaceable with standard 12V filament types
- E approved for road use
- Stud-mount installation on the lamp body
- Spare lens available: Maypole MP8208BR
- AJBA vertical format to match common trailer light board layouts
Typical Applications:
Installed on the right-hand rear of trailers, transporters, plant and equipment trailers, agricultural trailers, horseboxes and light commercial tow set-ups using 12V electrics. Suits builds and refurbishments that use Radex style 5+4 pin loom connections and require a vertical combination cluster with an integrated right-side fog lamp. Often paired with the matching left-hand lamp to complete a rear lighting set.
Also known as:
Maypole part number MP8209BR
AJBA Right-Hand Rear Combination Lamp 12V With Fog
Radex 5+4 Vertical RH Rear Cluster
Spare lens: MP8208BR
Product Specifications
| L&S Part No. | 763 606 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
