Description
Overview:

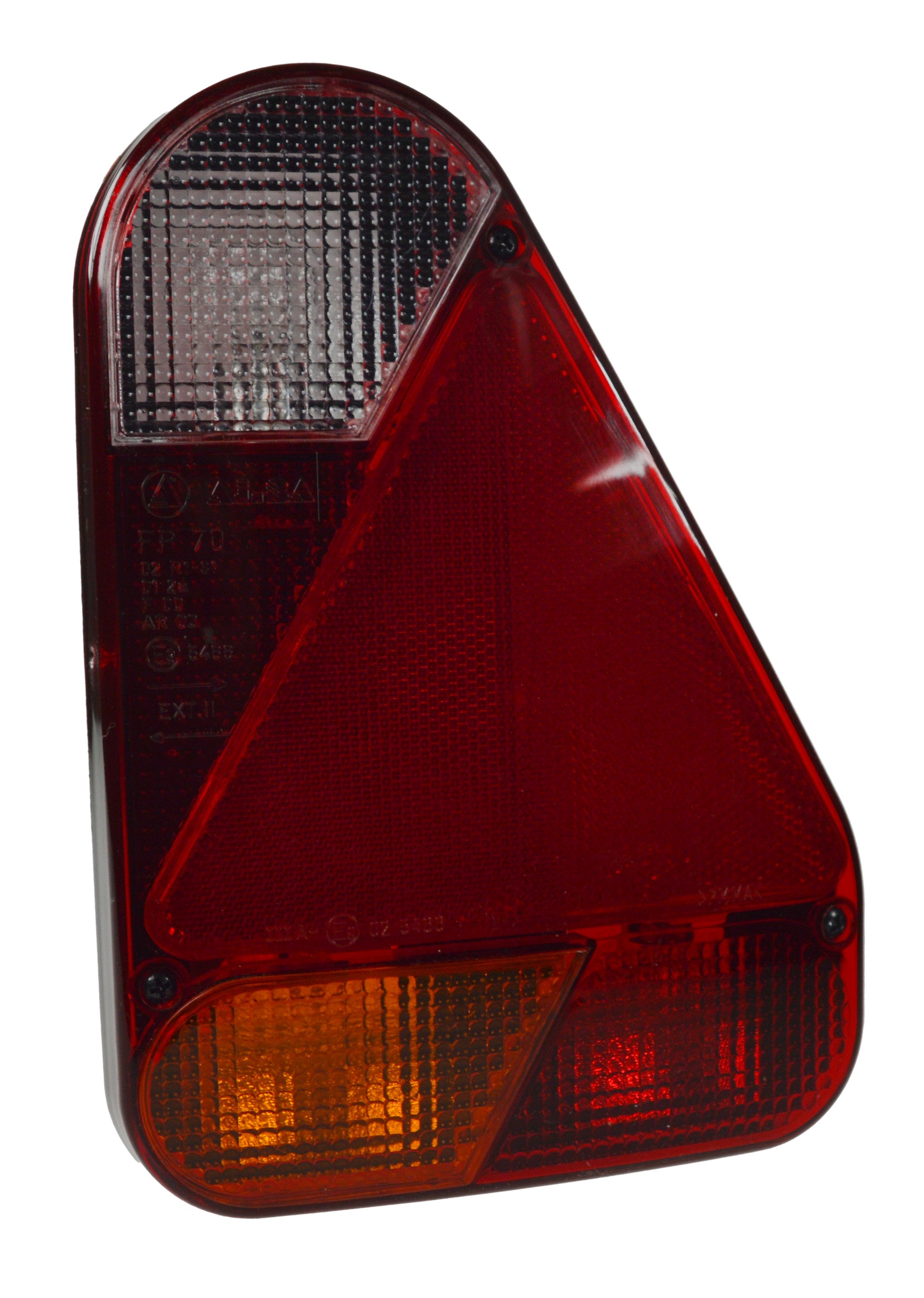

The AJBA Vertical Combination Lamp Right Hand, 12V, Reverse (MPN 763 625) is a rear light unit for trailers and towed equipment using 12V systems. It provides stop, tail, indicator, reflector and reverse functions in a single vertical cluster for the right-hand rear position. The unit is a bulb type lamp with a durable plastic body and lens, supplied complete with bulbs ready to fit. Electrical connection is via twin Radex-style 5-pin and 4-pin plug-in connectors (5+4), commonly used across many UK and European trailer looms. The lamp is E approved for road use and mounts on rear studs for secure fixing to the body or lighting board. Suitable for maintenance and replacement on plant trailers, general duty trailers and commercial towing setups requiring a right-hand reverse lamp configuration.
Key Features:
- 12V bulb-type rear combination lamp
- Functions: stop, tail, indicator, reflector and reverse
- Right-hand version with reverse light
- Vertical orientation for upright mounting
- Twin Radex-style 5+4 pin plug connections
- Supplied with bulbs fitted
- E approved for road use
- Stud mounting on rear (fixing studs)
- Spare lens available: MP82018BR
- AJBA branded, supplied by Maypole
Typical Applications:
Fitted to the right-hand rear of 12V trailers using Radex-style 5+4 lighting looms, including general duty trailers, plant and equipment carriers, flatbeds, box trailers and similar commercial towing installations. Suitable for service replacements where an AJBA vertical cluster with reverse function is specified, or where a Radex 5+4 plug connection is already present on the vehicle or lighting board.
Also known as:
Right Hand Rear Combination Lamp (Vertical)
RH Reverse Trailer Lamp, 12V
5+4 Pin Radex Style Combination Light
Maypole part number MP82019BR
Product Specifications
| L&S Part No. | 763 625 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
