Description
Overview:

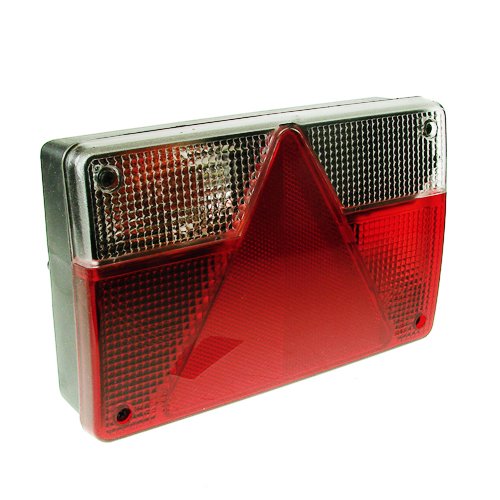

Left-hand rear combination lamp for trailers using the AJBA FP.56 short horizontal series. 12V bulb type with stop, tail, indicator, number plate illumination and reflector. Supplied with bulbs and fitted with a 5‐pin Radex‐style connector. E‐approved and stud mounted. Suitable where a compact 220 mm (8.66 in) horizontal lamp is required. Spare lens available as MP8305B.
Specification:
- Functions: stop, tail, indicator, number plate, reflector
- Voltage: 12V
- Connection: 5‐pin Radex‐style plug
- Series/size: short 220 mm (8.66 in) horizontal
- Orientation: left-hand (with number plate window)
- Mounting: rear stud mount
- Light source: bulbs included
- Approval: E‐marked (E approved)
- Model reference: AJBA FP.56.150E
- Pack format: bulk supply, no retail packaging
- Spare lens: MP8305B
Typical Applications:
Rear lamp for general light trailers, plant and equipment transporters, car transporters and utility trailers running 12V electrics. Used on the left-hand side where number plate illumination is required.
Product Specifications
| L&S Part No. | 763 580 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - 12V bulb type for stop, tail, indicator, and number plate - 5-pin Radex-style connector for easy installation - Compact 220mm horizontal design fits tight spaces - E-approved for compliance with safety standards - Supplied with bulbs and spare lens available (MP8305B) |
