Description
Overview:

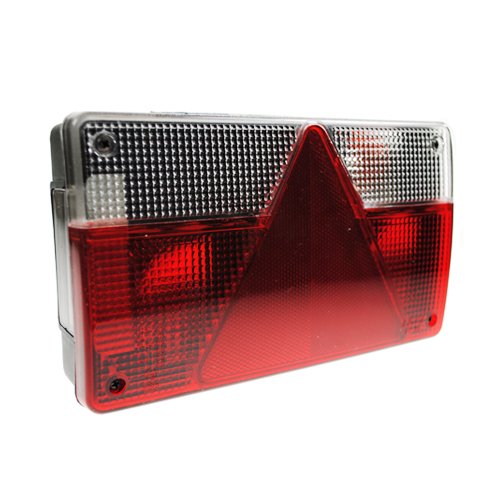

Right-hand rear combination lamp for 12V trailer lighting. It combines stop, tail, indicator, rear fog, reflector and number plate illumination in a single AJBA FP.96 unit. The lamp is 240 mm wide (9.45 in) and designed for horizontal mounting, with a 5-pin Radex-pattern plug for quick connection to compatible looms. Supplied with bulbs and E-marked for road use. Stud-mount fixing. Replacement lens available under Maypole code MP8315BR. Suited to trailers and transport bodies built around AJBA FP.96 lamps using 5-pin Radex connections.
Specification:
- Functions: stop, tail, indicator, rear fog, reflector, number plate (right-hand)
- Voltage: 12V
- Overall width: 240 mm (9.45 in)
- Orientation: horizontal, right-hand unit
- Connection: 5-pin Radex-style plug
- Light source: bulbs included
- Mounting: stud mount
- Approval: E-marked
- Model: AJBA FP.96
- Spare lens: Maypole MP8315BR
Typical Applications:
Rear right lamp on 12V road trailers, plant and equipment transporters, and similar towed vehicles using AJBA FP.96 pattern lighting with a 5-pin Radex connector.
Product Specifications
| L&S Part No. | 763 617 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Right-hand rear combination lamp for 12V trailer lighting - 240 mm wide, horizontal mounting - 5-pin Radex-pattern plug for quick connection - Includes stop, tail, indicator, fog, reflector, number plate functions - E-marked for road use, bulbs included |
