Description
Overview:

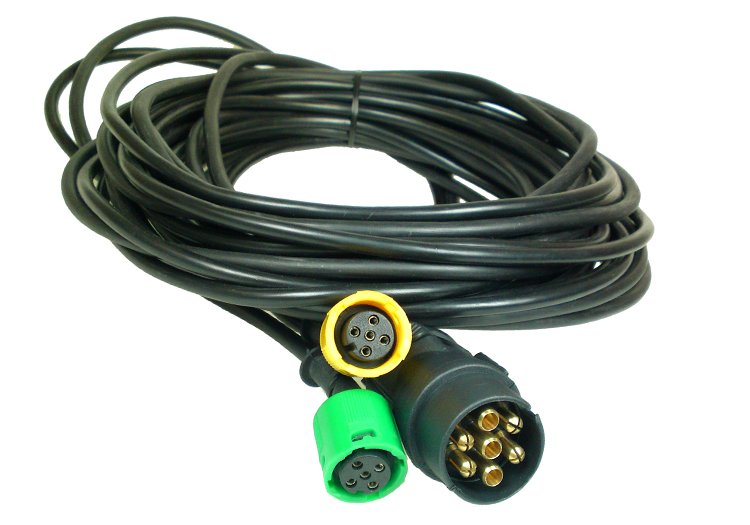

AJBA Trailer Lighting Harness 4m, 7-Pin Plug, 2 x 5-Pin Connectors (MPN 763 880) is a pre-assembled main loom for trailers equipped with AJBA rear lamp units. It combines a standard 7-pin trailer plug at the drawbar with two 5-pin plug-in connectors at the rear for direct connection to compatible AJBA multi-function lamps. The 4 m cable length (approximately 13.1 ft) suits many small to medium trailers where the distance from coupling to rear lamp clusters falls within this run. This configuration supports twin or single fog lamp setups and is manufactured by Maypole using genuine AJBA components for reliable interfacing with AJBA lights. Supplied ready to install, it helps reduce wiring time, connections and potential faults compared with assembling a loom from loose cable and terminals.
Key Features:
- 4 m main harness length (approx. 13.1 ft) for typical small/medium trailers
- Pre-fitted standard 7-pin trailer plug
- Two 5-pin AJBA connectors to mate with compatible rear lamp units
- Supports twin or single fog lamp configurations
- Manufactured by Maypole using genuine AJBA components
- Pre-assembled, plug-in connections to minimise wiring time and errors
- Suitable as an OEM-style replacement or retrofit on compatible installations
Typical Applications:
Used as the primary rear lighting loom on small plant trailers, general-purpose trailers, tippers, and light commercial towing rigs that use AJBA rear lamp units with 5-pin connectors. Provides the link from the towing vehicle's 7-pin socket to left and right rear lamp clusters, carrying tail, stop, indicator, number plate and fog circuits where required. Appropriate where a 4 m (13.1 ft) run is needed and a plug-in AJBA connection is specified.
Also known as:
Main Trailer Lighting Loom
AJBA Plug-In Lighting Harness 4 m
7-Pin to 2 x 5-Pin Trailer Harness
Maypole part number MP83104
Product Specifications
| L&S Part No. | 763 880 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - 4 m harness length suits small/medium trailers - Pre-fitted 7-pin trailer plug - Two 5-pin connectors for AJBA lamps - Supports twin or single fog lamps - Pre-assembled to reduce wiring time and errors |
