Description
Overview:

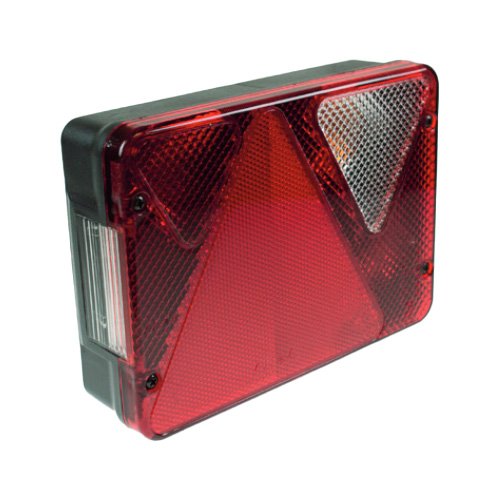

The AJBA Quick Fit Rear Combination Lamp RH, 12V Bulb Horizontal (MPN 763 551) is a right‐hand rear light unit for trailers and towed equipment using 12V electrics. It combines the main rear lighting functions in one housing, providing stop, tail, indicator, reflector, number plate and rear fog outputs. Designed for quick, tidy installation on lighting boards and trailer rears, it uses a Radex‐style 5+4 pin plug connection to mate with compatible plug‐in looms, reducing wiring time and fault points. The unit is the horizontal format and mounts on studs for a secure fit to the body or bracket. Supplied with 12V bulbs already fitted, it is ready to connect and put into service. E‐marked approval supports use on road trailers where compliant lighting is required.
Key Features:
- Right‐hand horizontal rear combination lamp for 12V systems
- Functions: stop, tail, indicator, reflector, number plate and rear fog
- Quick‐fit 5+4 pin Radex‐style connector for plug‐in trailer looms
- Bulbs supplied pre‐fitted for immediate installation
- E‐marked (E approved) for road use compliance
- Stud‐mount fixing for a secure, serviceable installation
- AJBA Quick Fit pattern, suitable for common trailer light boards
- Bulb technology for straightforward roadside replacement
Typical Applications:
Used on the right‐hand rear of general duty trailers, plant and equipment transporters, flatbeds, tippers, box trailers and caravans operating on 12V towing electrics. Suitable as an original fit or replacement where a 5+4 pin Radex‐style quick‐fit harness is installed, including many AJBA/Radex pattern light boards and modular wiring systems. Provides the required rear lighting functions in one unit to meet road lighting requirements when paired with the corresponding left‐hand lamp.
Also known as:
Right Hand Trailer Rear Combination Lamp
RH Horizontal Bulb Trailer Lamp 12V
Radex 5+4 Pin Quick‐Fit Rear Lamp RH
AJBA Quick Fit Horizontal Right Rear Light
Maypole part number MP8979BR
Product Specifications
| L&S Part No. | 763 551 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
