Description
Overview:

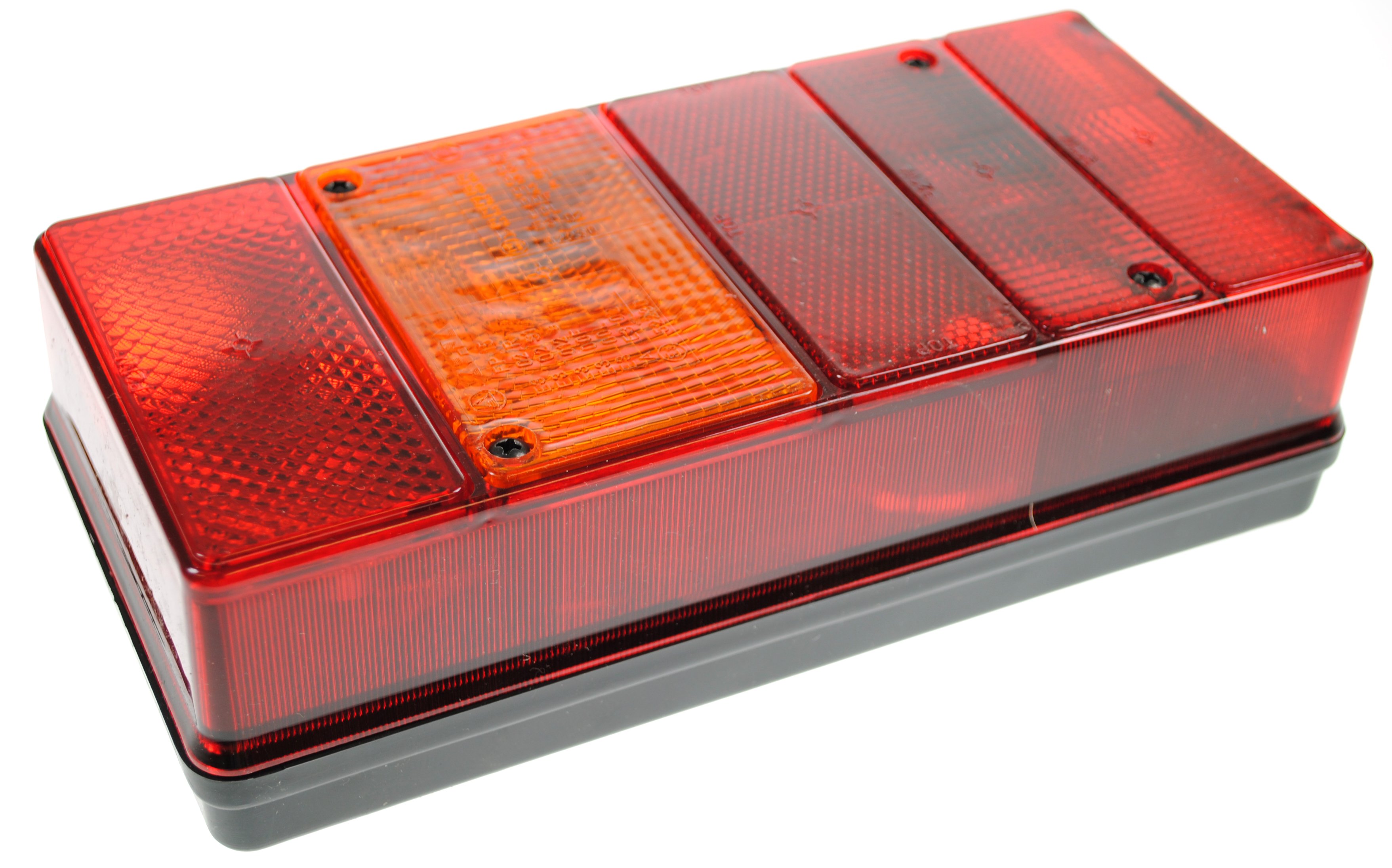

This is a 12V trailer rear combination bulb lamp (MPN 763 478) providing six functions in one unit for road-legal rear lighting on towed equipment. It combines stop, tail, indicator, number plate illumination, rear fog and a built-in reflector, making it suitable for general duty trailers, plant and machinery transport, car transporters, agricultural trailers and similar applications. The lamp uses standard bulb technology with spade terminal connections and is E-mark approved for on-road use. It can be mounted in either a horizontal or vertical orientation to suit the vehicle design. A durable plastic housing and lens are designed for everyday trade use, and rear mounting holes allow straightforward bolt-on installation. A replacement lens is available separately under Maypole reference MP8502B, and the unit corresponds to the AJBA FP.15.115 pattern commonly used across a wide range of UK and European trailer builds.
Key Features:
- Six rear lighting functions: stop, tail, indicator, number plate, rear fog and reflector
- 12V bulb (incandescent) technology for easy serviceability
- E-mark approved for road use
- Horizontal or vertical mounting orientation
- Spade terminal electrical connections
- Replacement lens available: Maypole MP8502B
- Robust plastic housing and lens for trailer and plant use
- Rear mounting holes for bolt-on installation
- AJBA FP.15.115 pattern compatibility
Typical Applications:
Used as a rear lamp cluster on small to medium trailers, plant and equipment trailers, car transporters, tippers, boat and agricultural trailers, and caravans operating on 12V systems. Suitable as a like-for-like replacement where an AJBA FP.15.115 pattern rear combination lamp is specified. The unit consolidates stop/tail/indicator functions with number plate illumination, rear fog and a reflector to meet typical trailer lighting requirements.
Also known as:
Rear combination lamp; 6-function trailer light; Bulb rear cluster; AJBA FP.15.115 lamp; Maypole part number MP8501B
Product Specifications
| L&S Part No. | 763 478 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
