Description
Overview:

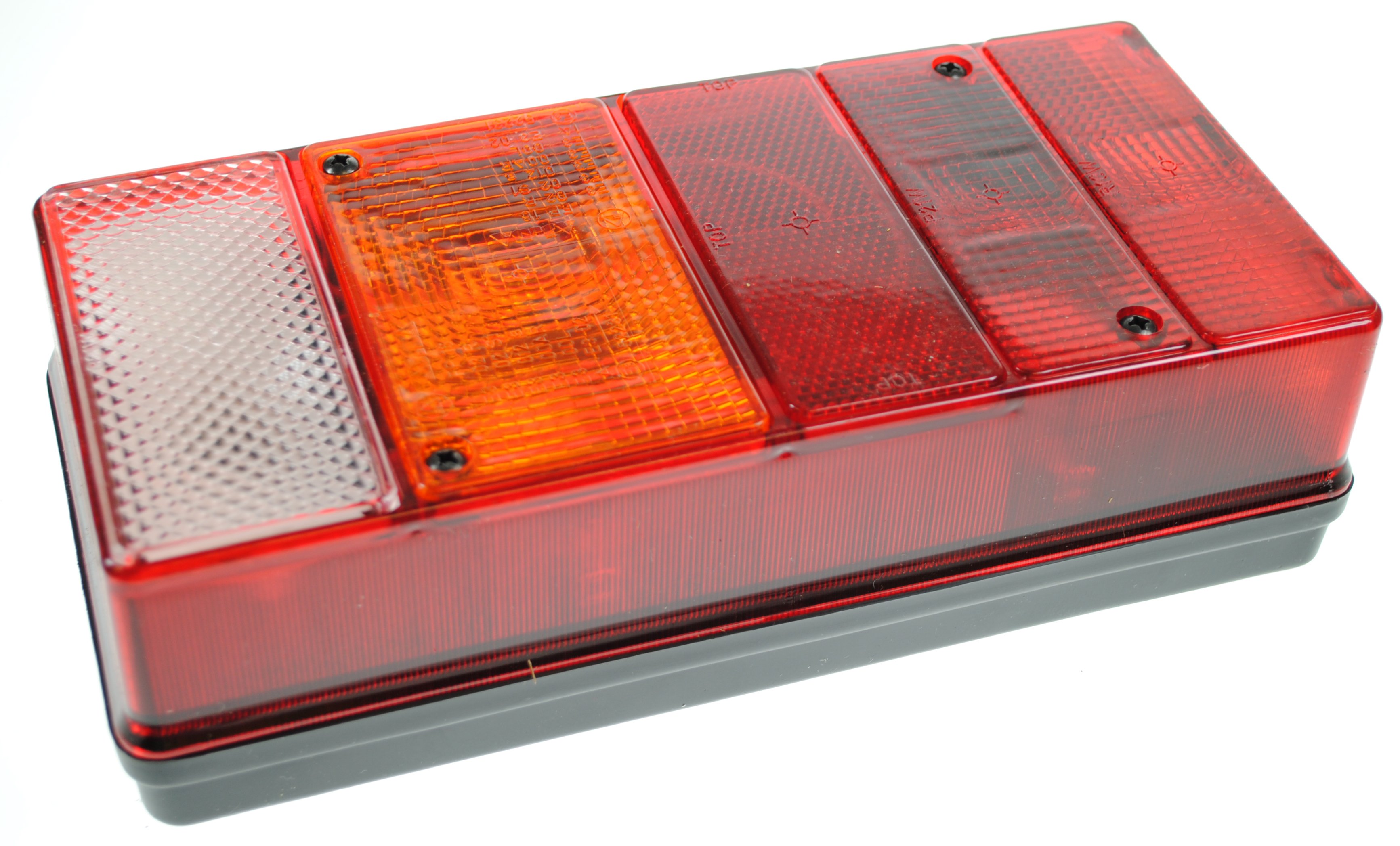

The AJBA rear combination bulb lamp (MPN 763 479) is a 12V multi-function light unit designed for road-going trailers and light commercial towing set-ups. It provides the key rear lighting functions in one compact housing: stop, tail, indicator, reverse, number plate illumination and a built-in reflector. The unit uses replaceable 12V filament bulbs for straightforward service and is built around a durable plastic body with coloured lenses suited to everyday fleet use. Connection is via spade terminals for quick installation and maintenance, and the lamp is E Approved for compliance with UK and EU road lighting regulations. It can be mounted in either a horizontal or vertical orientation to suit the vehicle layout, using standard bolt-on fixing holes. Suitable for general-duty trailers, plant and construction transport, agricultural trailers and utility bodies where a robust, serviceable rear combination lamp is required.
Key Features:
- 12V bulb type rear combination lamp with six functions: Stop, Tail, Indicator, Reverse, Number Plate and Reflector
- Horizontal or vertical mounting to suit installation layout
- Spade terminal connections for quick, reliable wiring
- E Approved for road use in the UK and EU
- Bolt-on fixing via rear mounting holes
- Durable plastic housing with coloured lenses for long service life
- Serviceable design using standard 12V filament bulbs (not LED)
- AJBA reference FP.16.015 for identification and replacement
Typical Applications:
Used as a primary rear light on braked and unbraked trailers, plant and machinery transporters, flatbeds, tippers, boat trailers, horseboxes and other light commercial towing applications. Suitable for new builds or as a direct replacement where an AJBA FP.16.015 pattern rear combination lamp is specified, and where a 12V, multi-function bulb lamp with spade connections and E approval is required.
Also known as:
AJBA FP.16.015 Rear Combination Lamp
12V 6-Function Trailer Light
Rear Multi-Function Bulb Tail Light
Combination Tail Lamp With Reflector
Maypole part number MP8504B
Product Specifications
| L&S Part No. | 763 479 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
